Farm Bale Handler Machine 3 Ton Telescopic Handler Side Boom Loader

Shandong Honest Machinery Co., Ltd.
  • Certification：TUV, UL, ISO, RoHS, CE
  • Condition：New
  • Rated Load：3-6t
  • Transmission：Hydraulic - Mechanical
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled

Base Info

  • Model NO.：M630-60
  • Type：Large Loader
  • Engine：Diesel Perkins,Yanmar,Kohler
  • Rated Power：70~100HP
  • Categoery：Multifunction Farming & Construction Machine
  • Size：3 Ton, 4 Ton, 5 Ton
  • Lifting Height：6m, 7m, 9m, 12m
  • Driving Type：Hydrostatic 4X4
  • Weight：6000kg, 7000kg, 9000kg, 10000kg
  • Speed：12,24km,H Two Speed
  • Telehandler Brands：Jcb, Manitou, Dieci, Merlo, Genie,Gehl
  • Usage：Multipurpose, Agricultural, Bee Keeping, Farming
  • Transport Package：Container
  • Specification：3 ton telescopic loader
  • Trademark：STEEL CAMEL
  • Origin：China
  • HS Code：8429510000
  • Production Capacity：600 Sets, Year

Description

Basic Info.

Model NO. M630-60 Type Large Loader Engine Diesel Perkins/Yanmar/Kohler Rated Power 70~100HP Categoery Multifunction Farming & Construction Machine Size 3 Ton, 4 Ton, 5 Ton Lifting Height 6m, 7m, 9m, 12m Driving Type Hydrostatic 4X4 Weight 6000kg, 7000kg, 9000kg, 10000kg Speed 12/24km/H Two Speed Telehandler Brands Jcb, Manitou, Dieci, Merlo, Genie,Gehl Usage Multipurpose, Agricultural, Bee Keeping, Farming Transport Package Container Specification 3 ton telescopic loader Trademark STEEL CAMEL Origin China HS Code 8429510000 Production Capacity 600 Sets/ Year

Product Description

Farm bale handler machine 3 ton telescopic handler side boom loader

Good features of STEEL CAMEL M630-60 telehandler:

1. Compact Size 3970x2090x2150mm (LxWxH)

Compact size, only 2090mm wide, 2150mm high
Enable it to come through the hourse door.

3ton capacity, 6m reach
Most needed size for material handling work

Min. turning radius 3220mm

2.Driving & Steering
4 x 4 wheel drive and steering (when choose the option)
Fantastic manuverability in rough terrain.

One switch control three driving mode:
Front wheel steering;
Front & rear wheel steering;
Crab driving

3.Operating comfort
Hydro-electrical joystick control
Easy operation, one hand control, offer best operating comfort to operator, long time working won't feel tired.

Adjustable steering assembly and seat
Always one comfortable position for you

Hydrostatic transmission,stepless speed change

Standard heated cabin + optional air conditioner
All season and weather comfort

4.Top qualiaty components

Oversea brand pump, seals, valve, axle

High strength steel for boom

Waterproof electrics

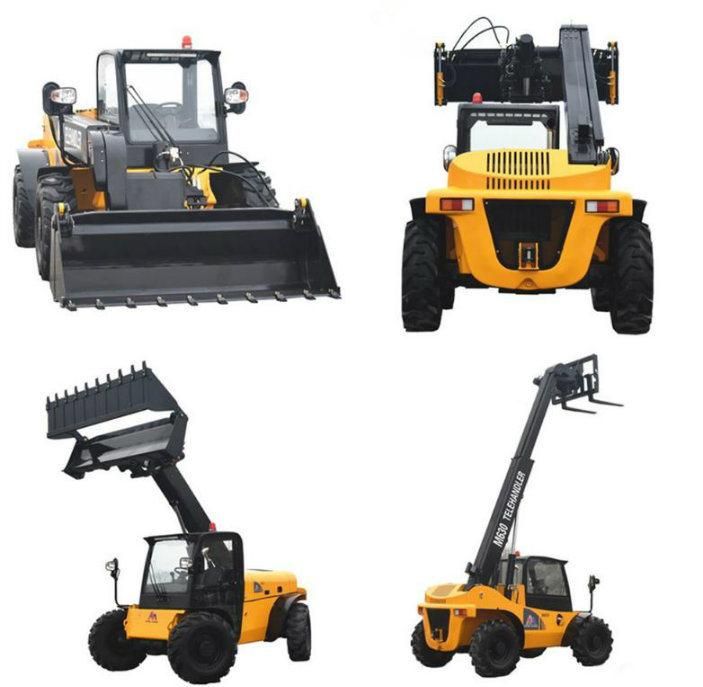

Farm Bale Handler Machine 3 Ton Telescopic Handler Side Boom Loader
Farm Bale Handler Machine 3 Ton Telescopic Handler Side Boom Loader

Technical data:

EngineYanmar/Chinese/Kohler EPA Tier 4
Rated power55~75kw
Dimension (LxWxH)3970x2090x2150mm
Rated loading capacity3000kg
Max. Lifting height5700mm
Max. Loading capacity in levelwith boom extended1200kg
Max. Reach in level with boom extended3500mm
Speed10/24km/h
Min. Turning radius3220mm
Truning angel35 degree
Operating weight5560kg
Track1780mm
Wheelbase2400mm
Tire12.5/80-18
System pressure20Mpa
Hydraulic output82L/min

Applications:

The Telescopic handler forklift is the ideal choice for almost any task that involves material lifting, moving or placing materials. All of its good features like four-wheel drive, hydro-mechanical transmission, hydraulic power steering, hydraulic brake, rear-wheel steering, guarantee its power, stability,safety and efficiency, makes it can hand over all kinds of rough working area. It was widely used in construction material handling, container carrying and logistics, agricultural fields, ect.

Farm Bale Handler Machine 3 Ton Telescopic Handler Side Boom Loader

Farm Bale Handler Machine 3 Ton Telescopic Handler Side Boom Loader

Packing & Delivery:

Till now STEEL CAMEL products, telehandlers, wheel loaders, excavators, attachments etc. have been servicing customers in many countries, like Germany, Russia, Poland, UK, Argentina, Australia, USA, Canada, Indonisia, Spain......
Farm Bale Handler Machine 3 Ton Telescopic Handler Side Boom Loader

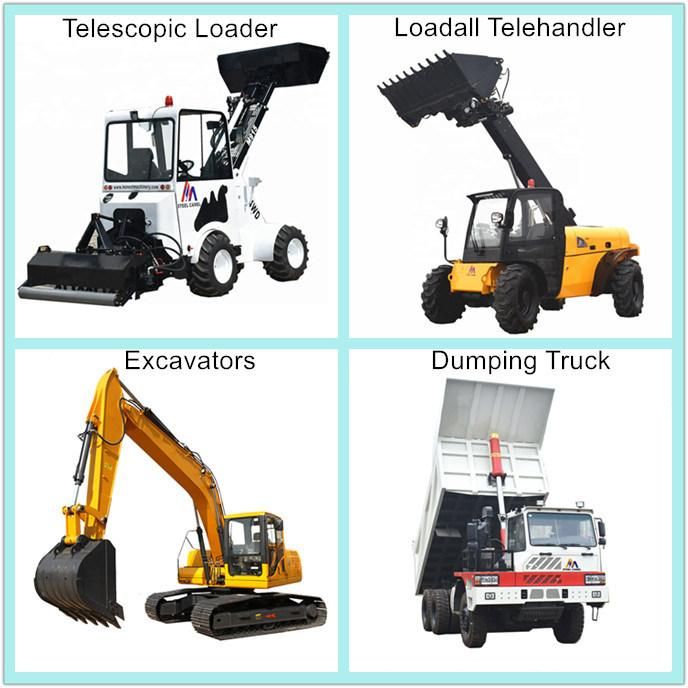

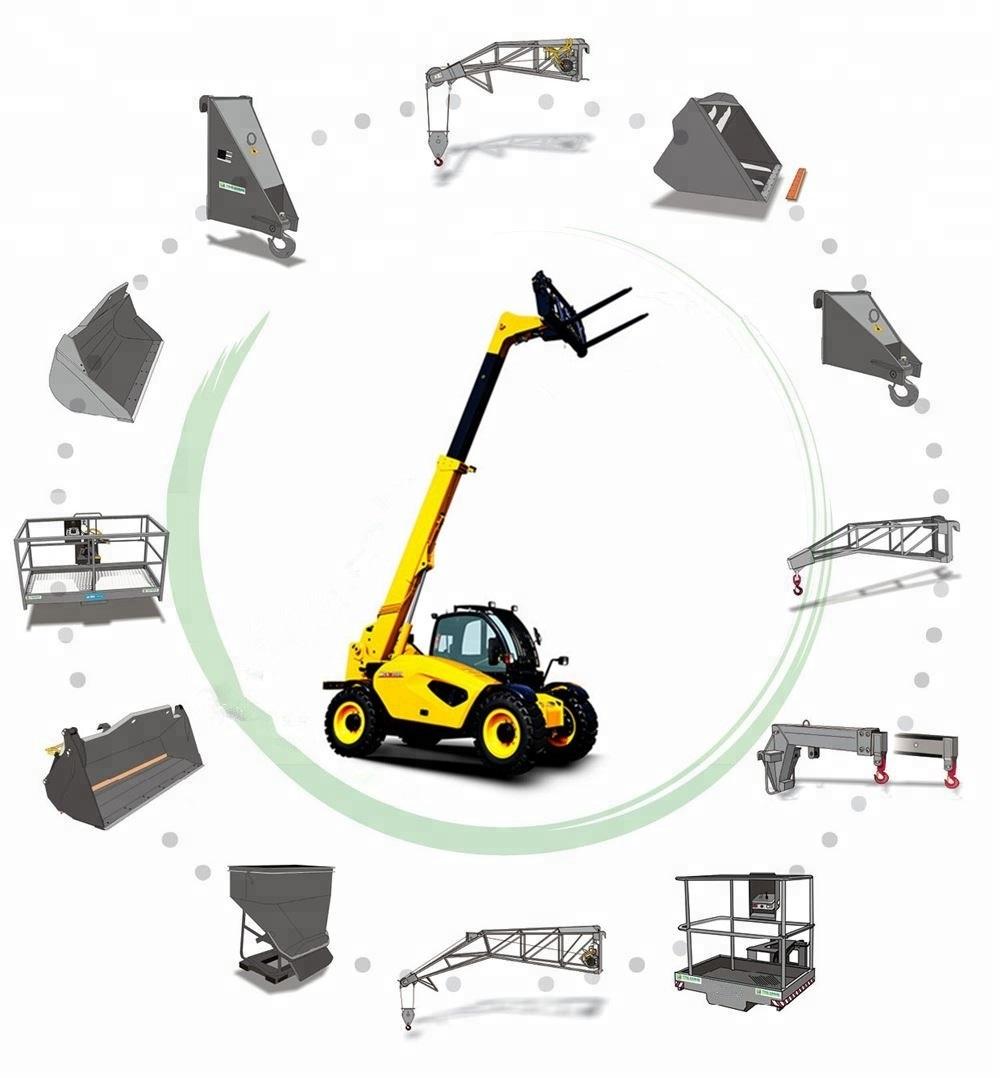

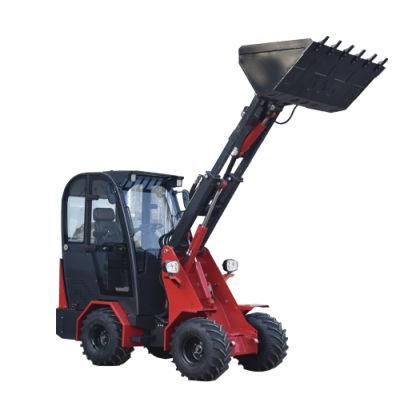

STEEL CAMEL products range:

We produce a wide range of machinery, telescopic loader, telehandler, excavators, dump trucks, and loader attachments. If any of them be of your interest, please inquiry by product name, I will send details for your information.

Farm Bale Handler Machine 3 Ton Telescopic Handler Side Boom Loader
Farm Bale Handler Machine 3 Ton Telescopic Handler Side Boom Loader

Contact us:
 With more than 10 years' experience of production and exporting, I'm ready to be your reliable consultant about products and importing procedure anytime.

Send an inquiry, leave your questions, I will take care of all the rest matters. Anna Guan/Marketing director
STEEL CAMEL PRODUCT--LESS SERVICING, MORE SERVICE, RELIABLE CHOICE.
HONEST MACHINERY TEAM--HONEST, PROFESSIONAL,GOOD SERVICE,TRUSTWORTHY PARTNER.
