Engineering & Construction Machinery

2019 New Design Tractor Front End Wheel Loader with Quick Hitch for Different Attachment

Shandong Honest Machinery Co., Ltd.
  • Certification:TUV, UL, ISO, RoHS, CE, Rops Fops EPA
  • Condition:New
  • Rated Load:1-3t
  • Transmission:Hydrostatic
  • Load and Unload Mode:Front Discharge
  • Walking Mode:Wheeled

Base Info

  • Model NO.:M920
  • Type:Medium-sized Loader
  • Product:Tractor Wheel Loader
  • Engine:Perkins,Yanmar,Kohler,Chinese
  • Power:30-70HP
  • Bucket Capacity:0.5-1.5m3
  • Lifting Height:3m-4m
  • Operating Weight:1600-3000kg
  • Wheel Drive:4WD
  • Oil Flow:30-100L,Min
  • Heater:Standard
  • Air Conditioner:Optional
  • Transport Package:1 Set,20′gp; 3 Sets,40′hq
  • Specification:3650X1500X2350mm
  • Trademark:STEEL CAMEL
  • Origin:Shandong
  • HS Code:8429510000
  • Production Capacity:800 Sets Per Year

Description

Product nametelescopic wheel loader M920Dimension with cabin (LxWxH)3650x1500x2350mmMax. lifting height (normal boom)3200mmMax. lifting height (telescopic boom)3900mmPulling force18kNBucket capacity1.0m3Rated loading capacity2000kgMin. turning radius3100mmTurning angle45 degreeMin. ground clearance330mmSpeed0-12-24km/h (two speed)Operating weight2600kgStandard tire31x15.5-15Oil tank capacity80LPressure190barWorking oil flow50L/minx2Tracking oil flow120L/minFuel tank capacity52LEngineYanmar/Kohler (EPA Tier4 final)/ChinesePower68hp/55kw

Loader+Tractor, one Multi-purpose helper for all your works

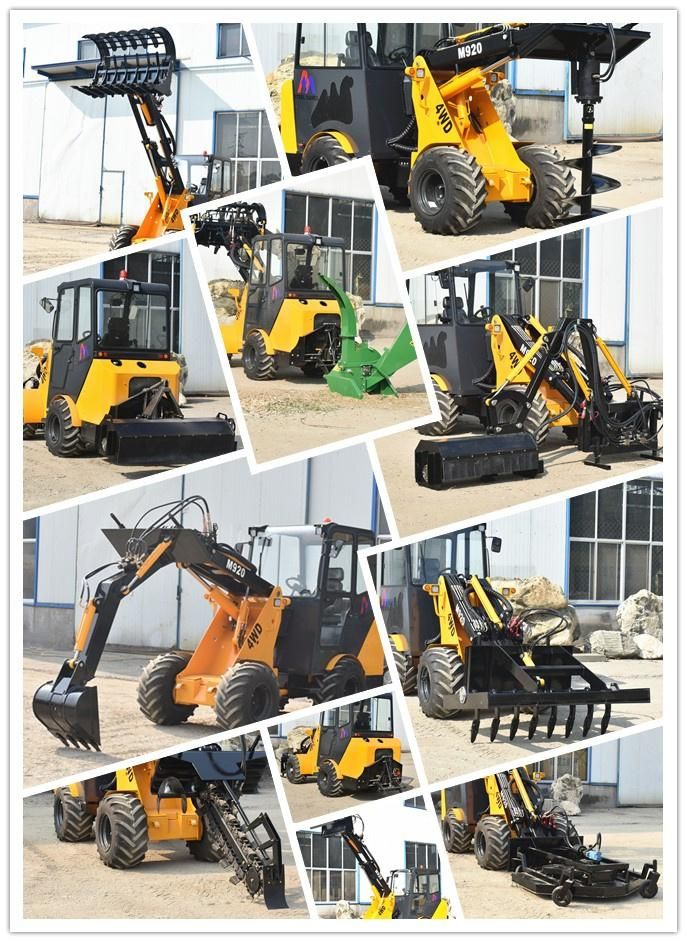

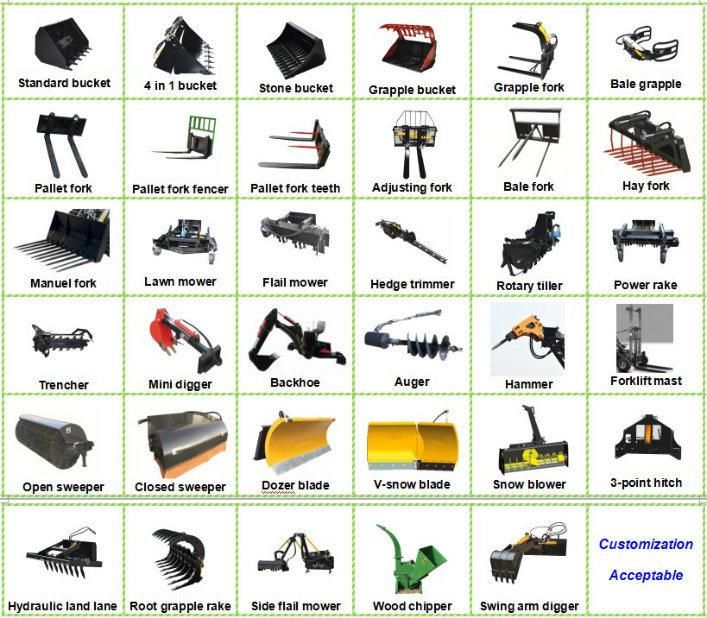

Front part is loader, with telescopic boom, hydraulic output, quick hitch and coupling system for various attachments, like bucket, fork, grapple, auger, hammer, lawn mower, etc.
Rear part is tractor, with hydraulic output, 3-point hitch, hydraulic PTO, for rotary tiller, flail mower, plough, harrow, trailer, etc.
STEEL CAMEL series machines are widely used in farming, agriculture, landscaping, gardening, construction, municiple, etc.
2019 New Design Tractor Front End Wheel Loader with Quick Hitch for Different Attachment

2019 New Design Tractor Front End Wheel Loader with Quick Hitch for Different Attachment

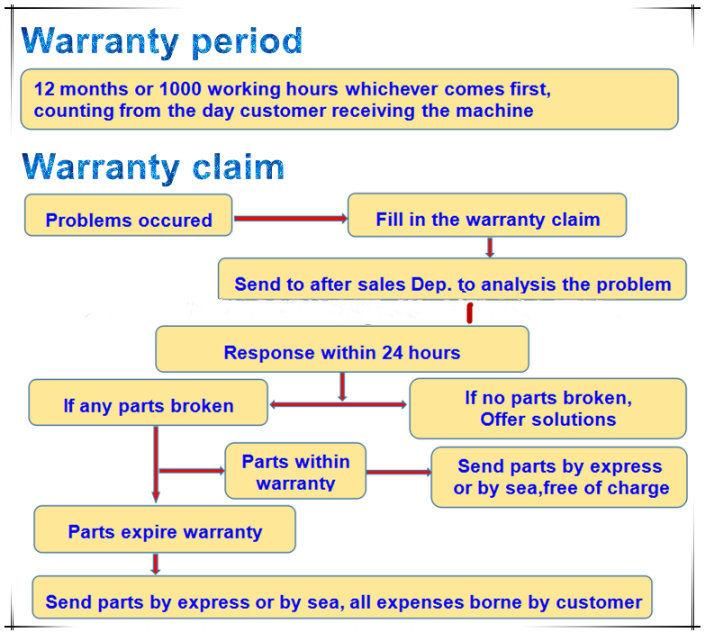

Loader warranty:
2019 New Design Tractor Front End Wheel Loader with Quick Hitch for Different Attachment

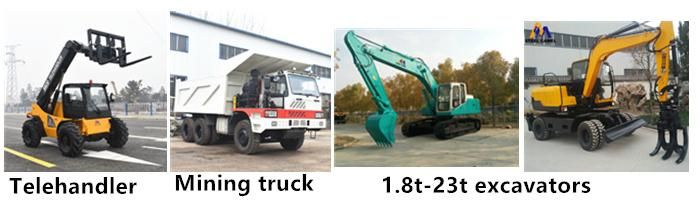

Other hotsale machines we offer:
2019 New Design Tractor Front End Wheel Loader with Quick Hitch for Different Attachment

Contact now for more details:
