• Model NO.：YHZM30
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：as Per The Requirement of Client
• Control System：Computer Control
• Total Power：46kw
• Transport Package：Container
• Specification：12.3m*7.3m*4.3m
• Trademark：Shengmao
• Origin：China
• HS Code：84743100
• Production Capacity：10 Sets,Month2

Basic Info.

Model NO. YHZM30 Certification ISO9001: 2000, CE Condition New Color as Per The Requirement of Client Control System Computer Control Total Power 46kw Transport Package Container Specification 12.3m*7.3m*4.3m Trademark Shengmao Origin China HS Code 84743100 Production Capacity 10 Sets/Month2

Product Description

First. brief introduction of our mobile concrete batching plant


Mobile concrete batching plant is specially designed for projects that we need to change work sites from time to time. It is very easy to be disassembled and moved to another work site, the installation is also quite easy. For our new type of mobile batching plant, all parts are mobile and no reinforced concrete foundation is needed, including cement silo. So it is very easy to install on a new work site; You just need a car to tow it to the new work site, place the machine in the right position and connect the cables, then you can use it. Usually, we can finish the installation within 3 days;



Like stationary batching plant, the mobile batching plant is also equipped with water, cement and additive scales which can ensure the quality of the concrete. The capacity of mobile batching plant we have now is from 20m3/h to 100m3/h. Welcome to contact us for details and quotations.

Second. Mobile concrete batching plant we have

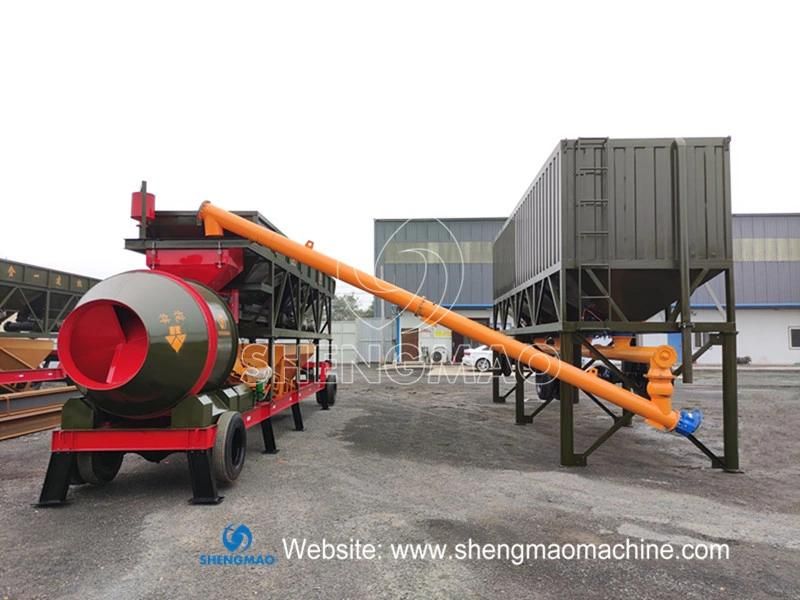

1. YHZM series of mobile concrete batching plant

1) Picture


2) Specification

Model	YHZM20	YHZM30	YHZM60	YHZM100
Production capacity (m3/h)	20	30	60	100
Concrete mixer	JZM500	JZM750	JZM1500	JZM2000
Aggregate feeding mode	Belt conveyor	Belt conveyor	Belt conveyor	Belt conveyor
Aggregate size(mm)	80/60	80/60	80/60	80/60
Discharging height(m)	1.5	1.5	1.5	1.5
Aggregate weighing accuracy (%)	±2	±2	±2	±2
Cement weighing accuracy (%)	±1	±1	±1	±1
Water weighing accuracy (%)	±1	±1	±1	±1
Additive weighing accuracy (%)	±1	±1	±1	±1
Control system	Panel	Computer	Computer	Computer
Total power (kw)	42	46	67	77.5
Total weight)	12	13	14.5	26

3)Features

a. It's no need to make concrete foundation, we can save much time, cost and labour work;

b. Easy to install. We usually need 3 days to finish the installation;

c. It is cost-saving. Compared with other mobile concrete batching plant, YHZM type is much cheaper;

d. The mixer is drum type concrete mixer;

e. The cement silo is horizontal type, no need foundation;

f. The concrete discharging height is 1m; we need to use a belt conveyor or we can make a slope to increase the height to enable concrete transit mixer to collect concrete.

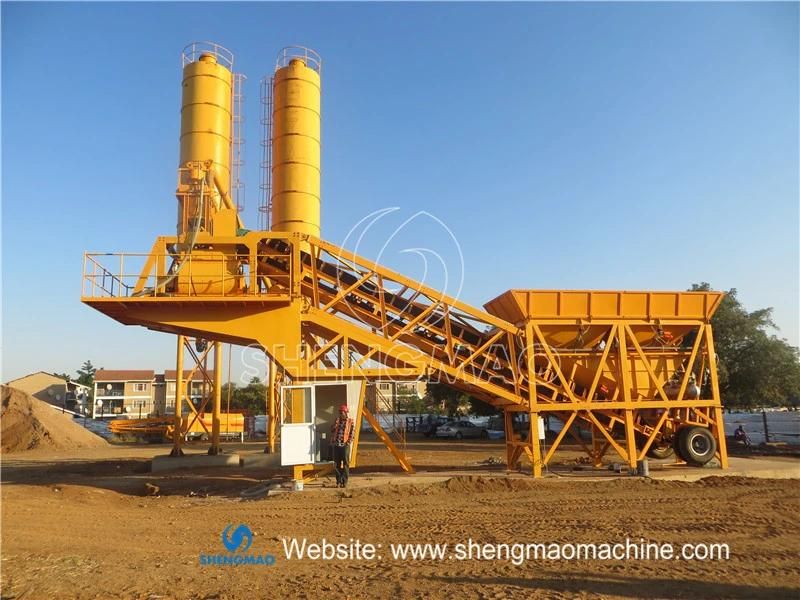

2. YHZS series of mobile concrete batching plant

1) Pictures


2)Specification

Model	YHZS25	YHZS35	YHZS50/60	YHZS75/90
Production capacity (m3/h)	25	35	50	75
Concrete mixer	JS500	JS750	JS1000	JS1500
Aggregate feeding mode	Belt conveyor	Belt conveyor	Belt conveyor	Belt conveyor
Aggregate size(mm)	80/60	80/60	80/60	80/60
Discharging height(m)	4.1	4.1	4.1	4.1
Aggregate weighing accuracy (%)	±2%	±2%	±2%	±2%
Cement weighing accuracy (%)	±1%	±1%	±1%	±1%
Water weighing accuracy (%)	±1%	±1%	±1%	±1%
Additive weighing accuracy (%)	±1%	±1%	±1%	±1%
Total weight (T)	14	22	26	29
Total power(kw)	60	72	92	102
Control system	Panel	Computer	Computer	Computer

3)Features

a. we need to make concrete foundation;

b. the concrete mixer can be twin-shaft mixer, pan mixer and planetary mixer;

c. the cement silo is vertical type, we need to make big concrete foundation;

e. the concrete discharging height is 4.1m which is easy for concrete transt mixer to collect concrete.

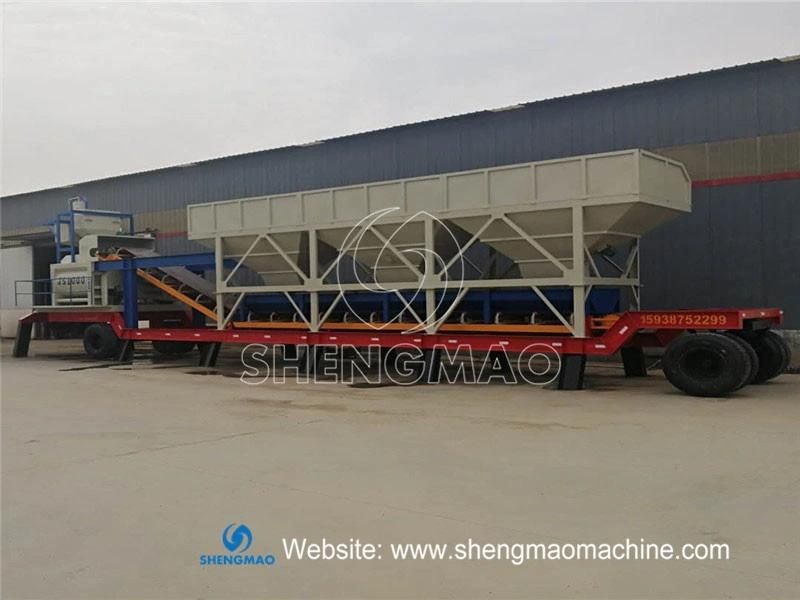

3. NYHZS series of mobile concrete batching plant

1). Picture


2)Specification

Model	NYHZS25	NYHZS35	NHZS50/60	NYHZS75/90
Theoretical production capacity (m3/h)	25	35	50	75
Concrete mixer	JS500	JS750	JS1000	JS1500
Aggregate feeding mode	Belt conveyor	Belt conveyor	Belt conveyor	Belt conveyor
Aggregate size(mm)	80/60	80/60	80/60	80/60
Discharging height(m)	4.1	4.1	4.1	4.1
Aggregate weighing accuracy (%)	±2%	±2%	±2%	±2%
Cement weighing accuracy (%)	±1%	±1%	±1%	±1%
Water weighing accuracy (%)	±1%	±1%	±1%	±1%
Additive weighing accuracy (%)	±1%	±1%	±1%	±1%
Total weight (T)	12	20	21	24
Total power (T)	60	72	72	87
Control system	Computer	Computer	Computer	Computer

3)Features

a. It's no need to make concrete founcation, easy to install and move to other job sites;

b. the concrete mixer can be twin-shaft mixer, pan mixer and planetary mixer;

c. the cement silo is horizontal type, no need foundation;

e. the concrete discharging height is 1m; we need to use a belt conveyor or make a slope to increase the height to enable concrete transit mixer to collect concrete.
