• Model NO.：bulldozer
• Certification：CE
• Condition：New
• Color：Yellow
• Transport Package：Roro
• Specification：CE
• Trademark：Super-above
• Origin：Jiangsu, China
• HS Code：8705109100
• Production Capacity：1000PCS,Year

EngineTypeCummins NT855-C250510      in-line,water cooled ,4-cycle, overhead valve direct injection,turbocharged diesel Rated power162kw/1800rpmCylinder number-bore x stroke6- 139.7 x 152.4mm  (bore x stroke)Piston displacement14.01LRated fuel consumption205g/kW.hMax. Torque1030.m/ 1250rpmUndercarriage systemTypeSwing type of sprayed beam, suspended structure of equalizer barCarry rollers2 each sideTrack rollers6 each sideTrack typeSingle-grouser, assembledWidth of track shoes610mmPitch216mmHydraulic systemMax. Pressure14MPaPump typeGear pumpDischarge262L/min lated revelationWorking cylinder x number120mm x 2Power transmitting systemTorque converter3-element, 1 stage, 1 phaseTransmissionPlanetary gear,multi-disc clutch,power shift,forced lubricationMain driveSpiral bevel gear, splash lubrication,single-stage speed reductionSteering clutchWet, Multi-disc, spring loaded, hydraulic separated,hydraulic controlSteering brakeWet, floating band type,  foot brake with hydraulic boosterFinal drive2-stage speed reduction of spur gear, splash lubricationBlade blade type Straight-tiltDozing capacity(m3)6.4Blade  height x width(mm)1315 x 3725Max. Drop below ground(mm)538Max. Tilt adjustment(mm)735Operating weight(kg)2830Efficiency(m3/h)330TRAVEL SPEEDGear1st2nd3rdFoward(km/h)0~3.60~6.50~11.2Reverse(km/h)0~4.30~7.70~13.2

FEATURES & APPLICATION
The widened track shoes guarantee low ground pressure, high stability, and powerful traction to fulfill p
recise horizontal operations.
The wet type steering clutch and brake can prolong the service life and are interlinked with each other to
guarantee the rapid and flexible steering controls by joysticks.

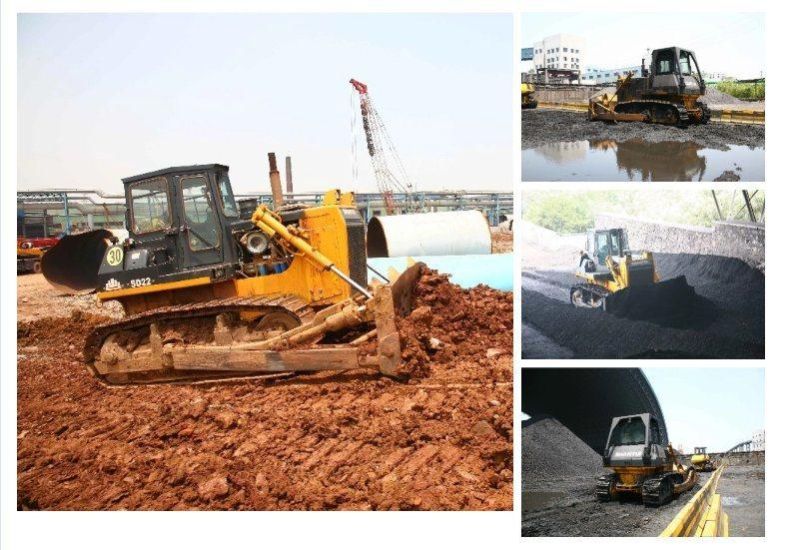

It can complete the digging, handling, and landfill operations of earthworks and is suitable for the engineering
constructionsfor roads, farms, water conservancy projects, municipal projects, and energy projects.

CERTIFICATE
