• Model NO.：E300X52.5X88K
• Link：88
• Overall Length：4620mm
• Weight：140kg
• Transport Package：Pallet
• Specification：E300X52.5X88K
• Trademark：PY
• Origin：China
• HS Code：8431499900
• Production Capacity：5000 Pieces Per Month

Basic Info.

Model NO. E300X52.5X88K Link 88 Overall Length 4620mm Weight 140kg Transport Package Pallet Specification E300X52.5X88K Trademark PY Origin China HS Code 8431499900 Production Capacity 5000 Pieces Per Month

Product Description

How to confirm a replacement rubber track size?

First try to see if the size is stamped along the inside of the track.
If you can't find the rubber track size stamped on the track, Pls inform the blow information to us:
The make, model, and year of the vehicle

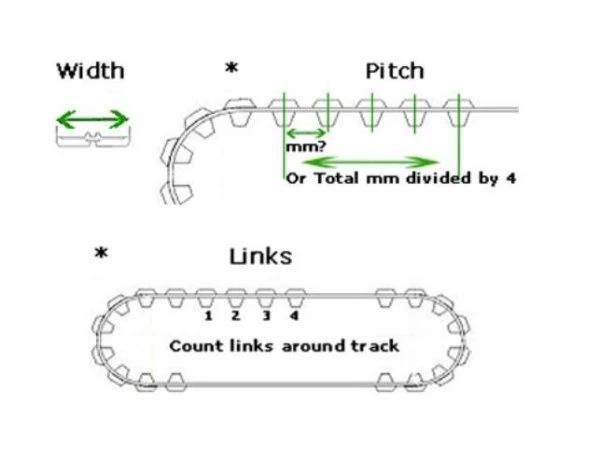

The Rubber Track Size = Widthx Pitch x Number of Links
1 inch = 25.4 millimeters
1 millimeter = 0.0393701 inches



Product Warranty

Rubber Tracks are manufactured to ISO9001 quality standards and are supplied with
a warranty covering manufacturing defects provided the products are used in normal working
conditions and in accordance with OEM recommendations. Incorrect fitment of a rubber track
including tensioning can result in the premature failure of the track and will void the warranty.
Regular cleaning of the drive system - sprocket, idler and rollers - as well as the track is highly
recommended to obtain maximum track life.
All our rubber tracks are made with a serial Number, we may trace the product date against the serial Number.
Any problem occur,please send clear photo with the serial number,then we can check when the tracks made.
For excavator rubber tracks,warranty is one year (12 months).

Extreme Durability & Performance

Our joint free track structure, Special designed tread pattern, 100% virgin rubber,and one piece forging insert steel
result extreme durability & performance and longer service life for construction equipment use. Tracks perform a
high level of reliability and quality with our latest technology in mold tooling and rubber formulation.

Delivery and Packing

Production time is around 10-15 days for 2 pieces,the actual time need to be confirmed before order.
We need to check the schedule of the rubber track orders when you plan to order.

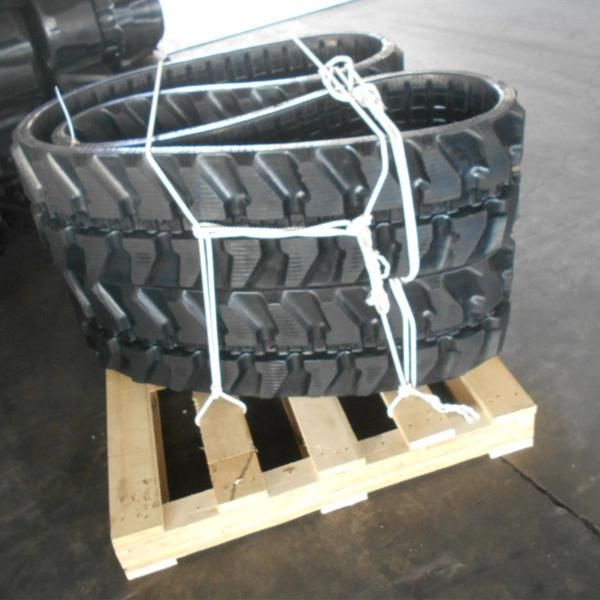

After finished production,the rubber tracks will be packing on the pallet after QC prodedure.
The pallet we use is standard export for sea shipping.
Covered with stretch film and rope.




Width*Pitch length(mm)	Number of Links	Width*Pitch length(mm)	Number of Links	Width*Pitch length(mm)	Number of Links
130*72	28-53	300*52.5K	72-84	400*72.5KW	68-92
150*60	28-49	300*52.5KW	72-92	400*74	68-76
150*72	29-40	KB300*52.5	72-92	400*75.5K	74
170*60	30-40	KB300*52.5N	72-98	B400*86	52-55
180*60	30-40	JD300*52.5N	72-98	400*90	42-56
180*72	30-58	300*53K	80-84	Y400*142	36-37
180*72K	30-37	300*55	70-86	400*144	36-41
B180*72K	34-51	300*55.5K	76-82	Y400*144K	36-41
B180*72A	30-51	300*71K	72-55	420*100	50-58
H180*72	30-50	300*109N	25-42	450*71	76-88
190*60	30-40	K300*109	37-41	DW450*71	76-88
190*72	34-39	300*109WK	35-42	450*73.5	76-84
200*72	34-47	B300*84	78-52	450*76	80-84
200-*72K	37-47	T300*86K	48-52	450*81N	72-80
230*48	60-84	320*52.5	72-98	450*81W	72-78
230*48K	60-84	B320*52.5	68-98	KB450*81.5	72-80
230*72	42-56	320*54	70-84	K450*83.5	72-74
230*72K	42-56	B320*86	49-52	B450*84	53-56
230*96	30-48	320*90	52-56	B450*86	52-55
230*101	30-36	320*100	38-54	450*90	58-76
250*47K	84	320*100W	37-65	KU450*90	58-76
250*48.5K	80-88	Y320*106K	39-43	T450*100K	48-65
250*52.5K	72-78	350*52.5	70-92	K450*163	38
250*72	47-57	350*54.5K	80-86	485*92W	74
B250*72	34-60	B350*55K	77-98	500*90	76-82
B250*72B	42-58	350*56	80-86	500-92	72-84
E250*72	37-58	350*75.5K	74	500*92W	78-84
250*96	35-38	350*90	42-56	500*100	71
250*109	35-38	350*100	46-60	K500*146	35
260*55.5K	74-80	350*108	40-46	600*100	76-80
Y260*96	38-41	350*109	41-44	600*125	56-64
260*109	35-39	Y370*107K	39-41	700*100	80-98
280*72	45-64	400*72.5N	70-80	750*150	66
Y280*106K	35-42	400*72.5W	68-92	800*125	80
300*52.5N	72-98	Y400*72.5K	72-74
300*52.5W	72-92	KB400*72.5K	68-76
