• Model NO.：TY320
• Condition：New
• Color：Yellow
• Transport Package：Nude
• Specification：5500x3185x2950mm
• Trademark：ORIEMAC
• Origin：Shandong, China
• HS Code：8429199000
• Production Capacity：5000PCS,Year

EngineModelCUMMINS NTA855-C360TypeTurbocharging, inter-cooloing, vertical typeCylinder quty.-bore×stroke6-139.7×152.4mmPiston displacement14LRated power235kWMax.torque1000N.m/1400rpmRated speed2000rpmFuel consumption242g/kW.hStart motor24V,11kWGenerator28V,35ABattery24V(12 ×2)-195Ah×2Drive SystemHydraulic torque converter3 components, single-stage, single phasePower shift transmissionPlanetary gear, multi-disc clutch, hydraulic integrated forced lubricationMain driveSpiral bevel gear, splash lubricationSteering clutchWet, multi-disc, spring-pressed, hydraulic releaseFinal drive2-stage spur gear reduction, splash lubricationTravel SystemSuspension typeSemi-rigid, equalizing beam float typeDrive wheelInsert block type, drive gearAmt.of carrier wheel(each side)2Amt.of supporting wheel(each side)7Working DevicesBlade typeStraight tilt type/semi-U typeWidth×Height4130×1590/4030×1720 mmBlade capacity10.4/11.7Scarifier type3-grouser, 1-grouserMax.blade tilt range1000mmCrawlerTypeAssembly type/ single-grouserGrouser height80mmAmt.of track shoe41×2Track shoe width560mmTrack center distance228.6mm 2140mmGround contact length3150mmHyraulic system of working devicesTypeGear typeWorking pressure13.7MPaRated flow355(L/min)Blade cylinder cylinder bore×stokeΦ140×Φ 75× 1346(mm)Blade tilting cylinder cylinder bore×shaft diameters×strokeΦ225×Φ90×80(mm)
Scarifier hoisting cylinder: cylinder bore×shaft diameter×strokeΦ225×Φ90×540(mm)Scarifier adjusting cylinder: cylinder bore×Shaft diameter×strokeΦ225×Φ90×500(mm)ParametersBare machine weight36700kgMax.traction300kNMin.turning radius3940mm
Max.gradeability30Min.ground clearance
500mmFuel tank volume600LGround pressure0.104MPa

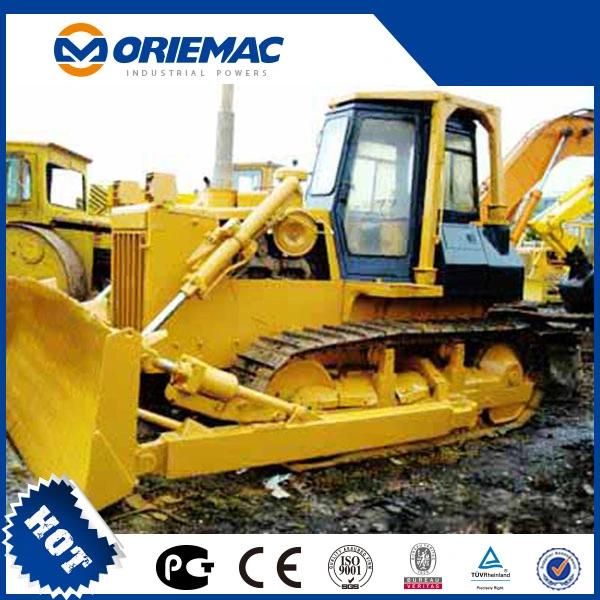

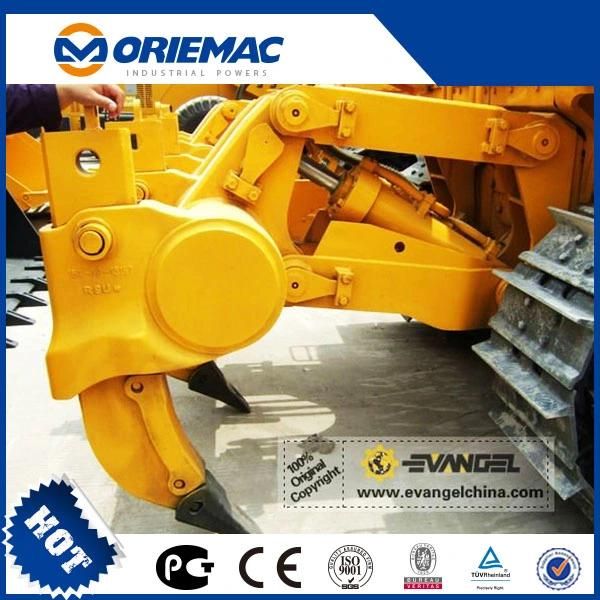

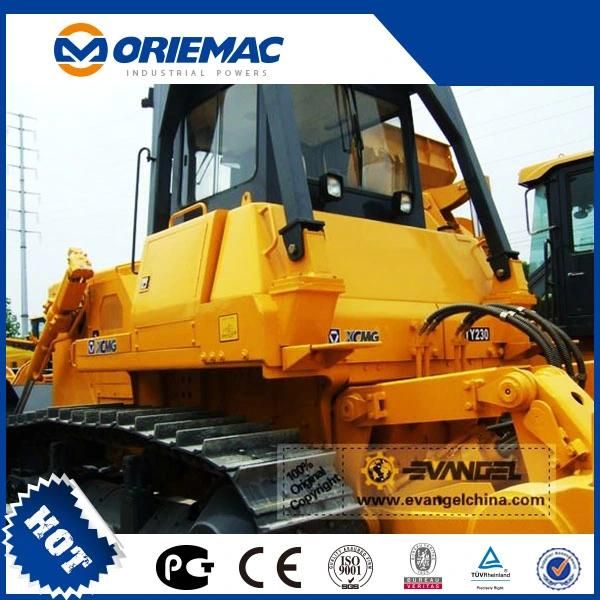

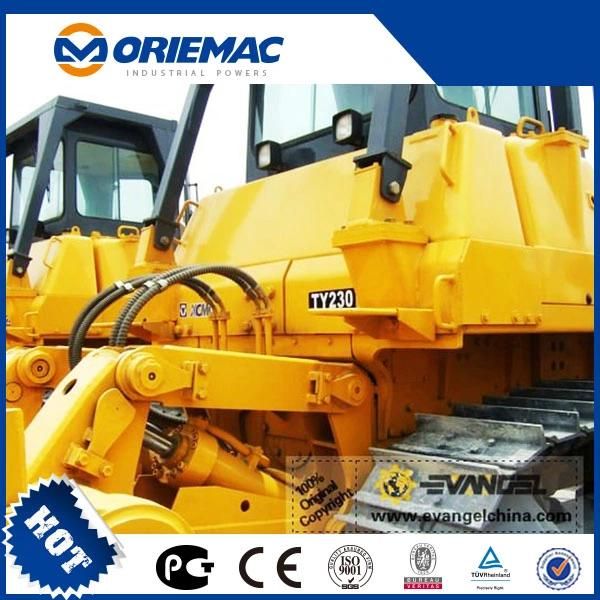

Product Pictures
