• Model NO.：RP601L
• Certification：ISO9001: 2000, CE
• Condition：New
• Transport Package：in Nude
• Specification：6096*2570*3832mm
• Trademark：ORIEMAC
• Origin：Jiangsu, China
• HS Code：84791021
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. RP601L Certification ISO9001: 2000, CE Condition New Transport Package in Nude Specification 6096*2570*3832mm Trademark ORIEMAC Origin Jiangsu, China HS Code 84791021 Production Capacity 5000PCS/Year

Product Description

RP601 Hot sale Asphalt Concrete Paver with Paving Width 6m
Product Description

RP601 multifunctional paver adopts multiple advanced technologies like micro-electronic control, ultrasonic sensor, automatic electronic leveling, single vibrator and gas heating, etc. And the key matching components adopt imported products, so it achieves the technical level of similar imported products in product quality and reliability. The paving width ranges from 2.5m to 6m, which can be steplessly adjusted. The ergonomical design makes it simple and convenient to operate and maintain. Thus the product has high performance/price ratio, and it is applicable to the asphalt concrete paving for municipal construction and highways of various grades.

Technical Parameters

Item	Unit	RP451L	RP601	RP601L	RP701L
Basic Working Width	m	2	2.5	2.5	2.5
Max Working Width	m	4.5	6.0/7.0	6	7
Max Paving Thickness	mm	150	150	300	300
Paving Speed	m/min	0~13	0~11	0~18	0~18
Traveling Speed	km/h	0~13	0~3.2	0~18	0~18
Theoretical Productivity	t/h	240	300	400	400
Hopper Capacity	t	12	13	20(paving shift)	20(paving shift)
Gradient Ability	%	20(paving shift)	20	13	13
Smoothness	mm/3m	3	3	3	3
Slope Leveling Tolerance	%	±0.02	±0.03	±0.02	±0.02
Crown adjust	%	0~3	0~+3	0~+3	0~+3
Tamper revolution	r/min		0~1500	0~1500	0~1500
Tamper Amplitude	mm		4/8	4	4
Engine Type		4JR3G1(Shangchai)	D4114ZG2B (Shangchai)	D4114ZG2B (Shangchai)	D4114ZG2B (Shangchai)
Rated power	kw	55	100	100	100
Rated revolution	rpm	2200	2400	2400	2400
Weight	t	10.5	17.4~20.5	15.3~19	15.3~19
Overall Dimension	mm	5670×2070×3590	6400×2500×3830	6096×2580×3832	6096×2580×3832

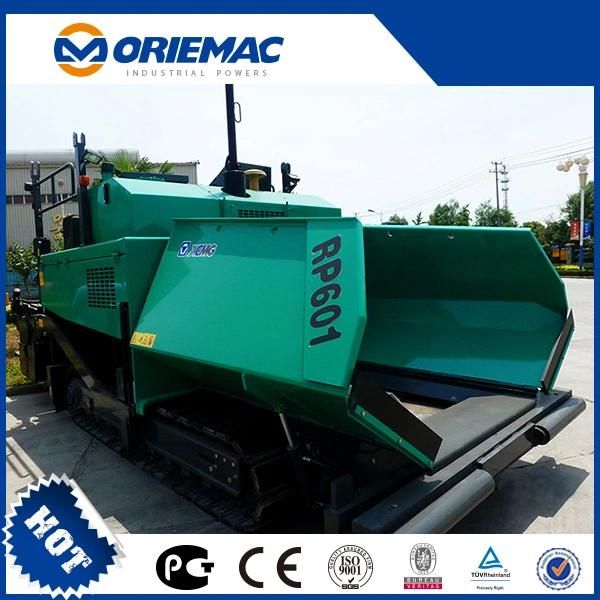

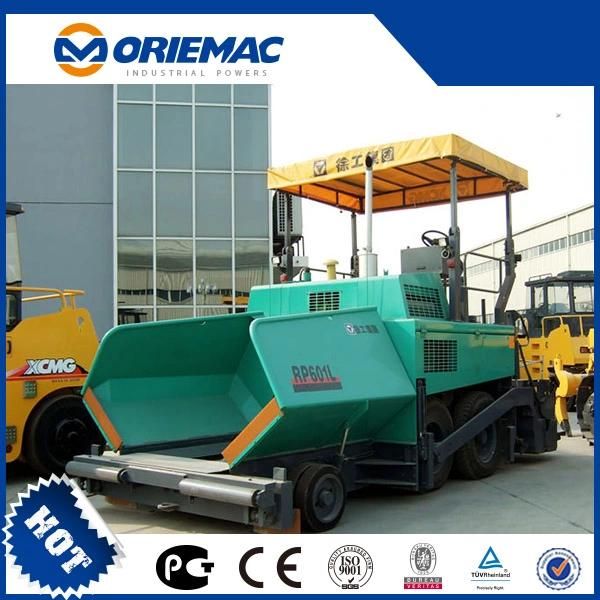

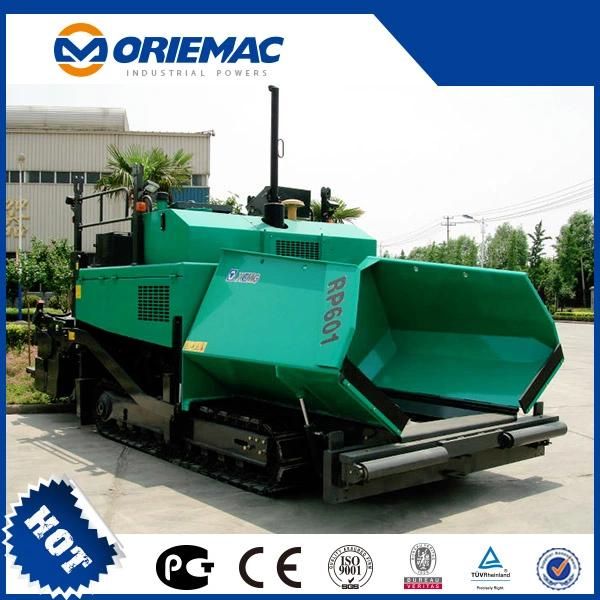

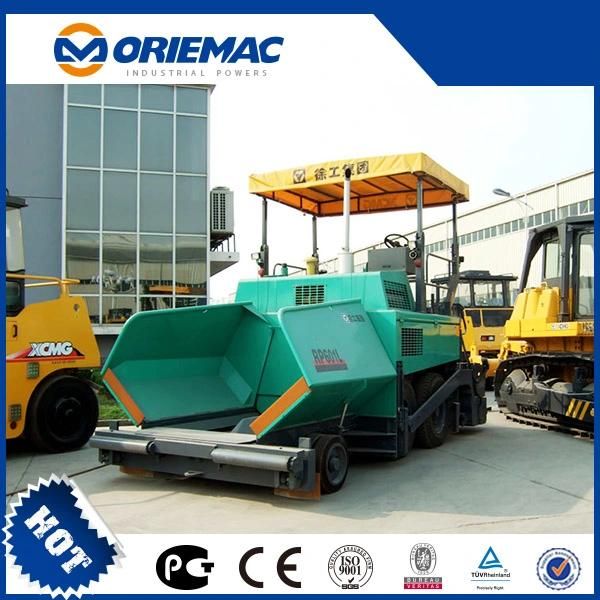

Product Pictures
