• Model NO.：GR2153
• Transport Package：in Nude
• Specification：8015*2380*3050mm
• Trademark：ORIEMAC
• Origin：Jiangsu, China
• HS Code：84292090
• Production Capacity：5000PCS,Year

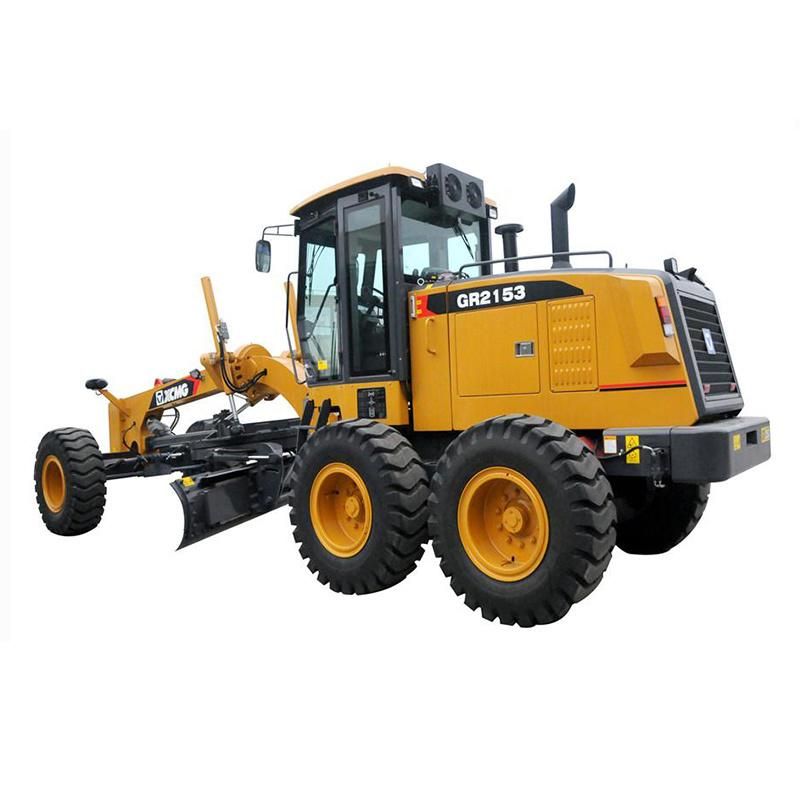

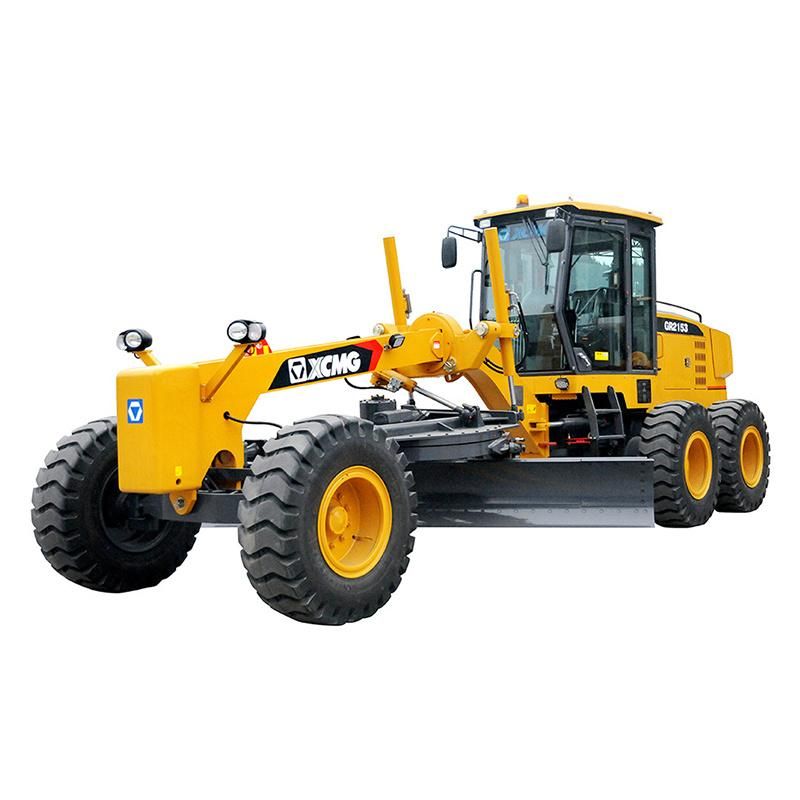

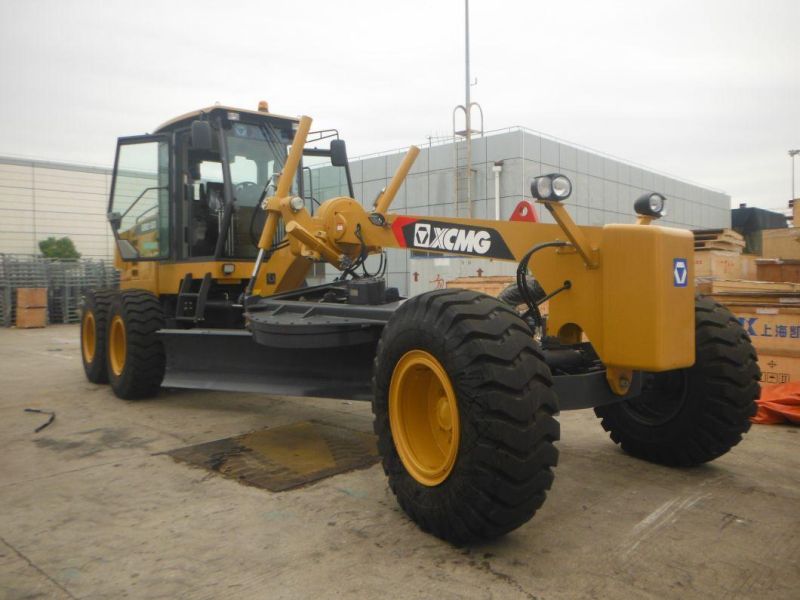

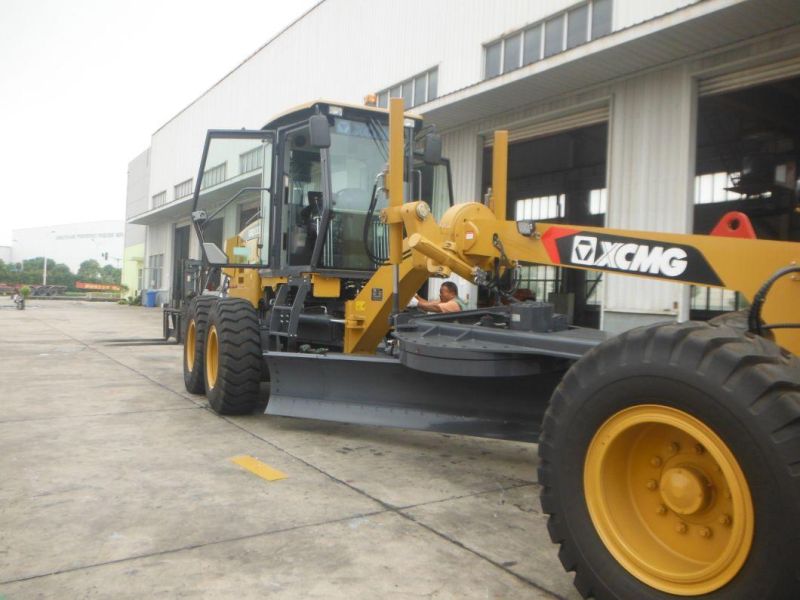

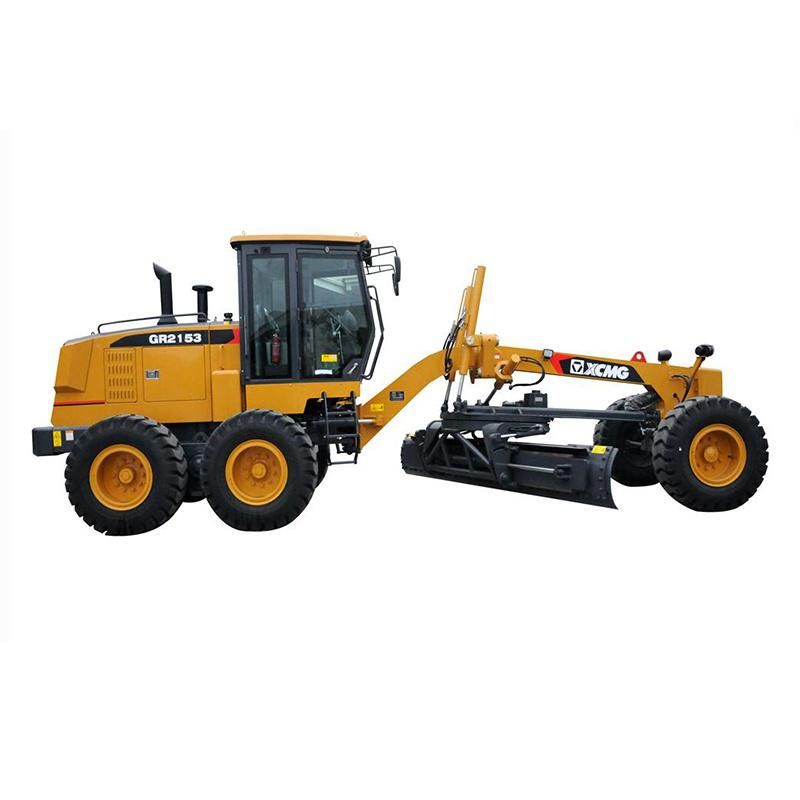

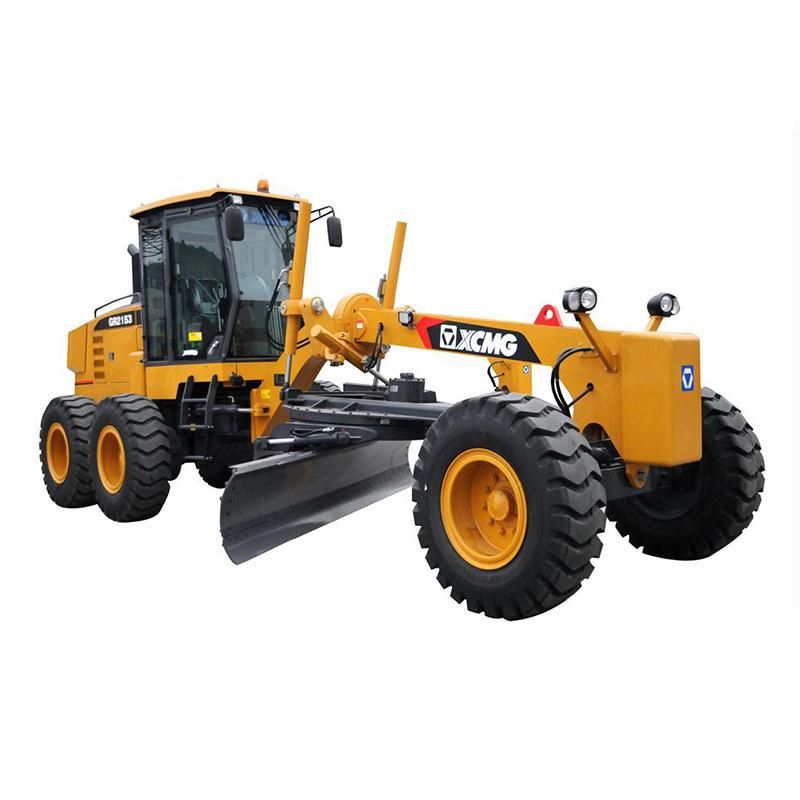

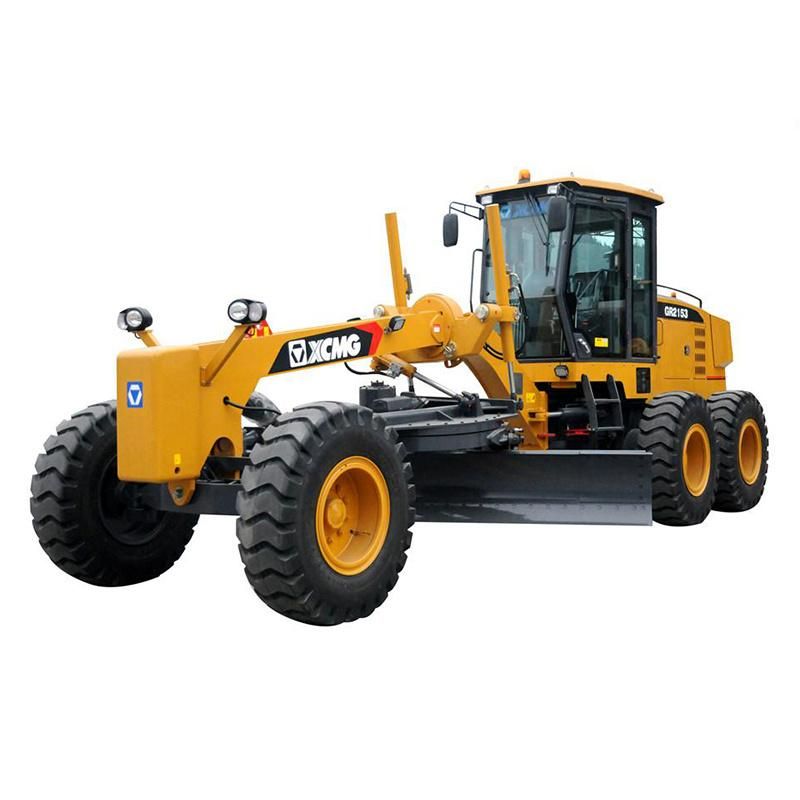

Basic specificationEngine model6BT5.9Rated power/speed100/2200kw/rpmDimension(LxWxH)8015×2380×3050mmOperating weight(Standard)11200kgPerformance specificationTravelling speed ,forward5,8,13,20,30,42km/hTravelling speed ,reverse5,13,30km/hTractive force(f=0.75)61.3KNMax. grade ability30%Tire inflation pressure300kPaWorking hydraulic pressure16MPaTransmission pressure1.3~1.8MPaOperating specificationMax. steering angle of front wheels±49°Max. lean angle of front wheels±17°Max. oscillation angle of front axle±15°Max. oscillation angle of balance box16Frame articulation angle±27°Min. turning radius using articulation6.6mBiadeMaximum lift above ground410mmMaximum depth of cutting515mmMaximum blade position angle90°Blade cutting angle54°-90°Circle reversing rotation360°Moldboard width X height3710×610mmProduct Pictures
