• Model NO.：SR18
• Compaction Depth：2140mm
• Engine Type：Diesel Engine
• Travel Speed：25cm,s
• Centrifugal Force：350,250kn
• Certification：CE, ISO 9001:2000, ISO 9001:2008
• Condition：New
• Transport Package：Nude Packing
• Specification：6093*2410*3132mm
• Trademark：SHANTUI
• Origin：China
• HS Code：8429401900
• Production Capacity：100,Month

Basic Info.

Model NO. SR18 Compaction Depth 2140mm Engine Type Diesel Engine Travel Speed 25cm/s Centrifugal Force 350/250kn Certification CE, ISO 9001:2000, ISO 9001:2008 Condition New Transport Package Nude Packing Specification 6093*2410*3132mm Trademark SHANTUI Origin China HS Code 8429401900 Production Capacity 100/Month

Product Description

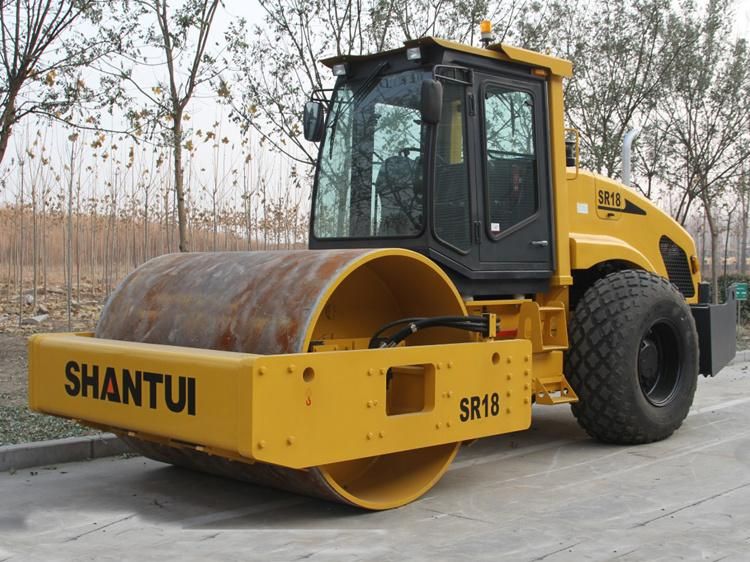

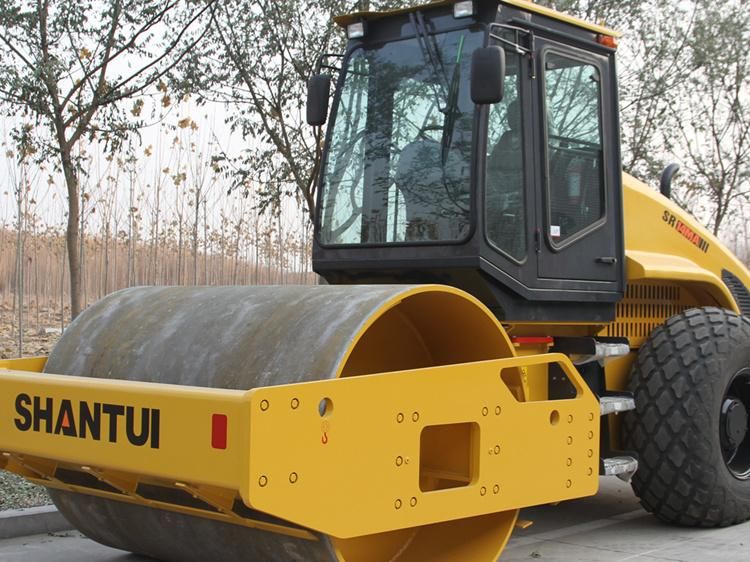

Wholesale Low Cost and High Performance SR18 Road Roller for Sale
 Driving/Riding Environment

1. The hydrostatic drive system is capable of stepless speed regulation and flexible steering to adapt to diversified working conditions and realize the compacting operation in narrow spaces.

2.  The traveling system is controlled by flexible shaft joystick to realize accurate control by low operating force, featuring low operating force, flexible and handy operations, and high operating comfort and working efficiency.

3. The brake system composed of the brakes on drive axle and vibratory drum reducer and the hydrostatic brake of closed type hydraulic system incorporates the service brake, parking brake, and emergency brake functions to guarantee the driving safety and reliability.

Working performance

1. The closed-loop hydraulic vibrating system is applied. With double-frequency and double-amplitude, its scientifically reasonable static linear load and exciting force configuration guarantees the effective compacting for the materials of diversified types and the pavements of diversified thicknesses.

2. The imported heavy-duty variable displacement plunger pump is applied for the vibrating pump and the vibrating system is electronically controlled to realize simple operations and guarantee the reliability and flexibility of vibrating system.

High maintenance convenience

1. The hood of large opening angle eases the maintenances of engine and hydraulic system.

2. The modular structure eases the disassembling of parts and ensures low maintenance cost and easy maintainability.

3. Less malfunctions and convenient maintenances.

Operating cost

1. The structural parts inherit the excellent quality of Shantui mature products to realize high durability.

2. The core electric and hydraulic parts adopt imported products, featuring stable and reliable quality and extremely high reliability.

3. This product is powered by Dongfeng cum-mins 6BTA5.9-C180 turbocharged and intercooled engine, featuring excellent fuel economy, really high market ownership volume, strong parts universality, and low maintenance cost.

4. Shantui's proprietary match technology can achieve highest working efficiency and most reasonable fuel economy, with the composite fuel consumption reduced by 10~12%.

Parameter name	SR18
Performance parameters
Operating weight (Kg)	18000
Exciting force (KN)	350/250
Vibration frequency (Hz)	29/35
Nominal amplitude (mm)	2/1.0
Ground pressure (KPa)	-
Gradeability (%)	45
Engine
Engine model	6BTA5.9-C180
Rated power/rated speed (kW/rpm)	132/2500
Overall dimensions
Overall dimensions of machine (mm)	6093*2410*3132
Driving performance
Forward speed (km/h)	F1: 0~5.6 ,F2: 0~7.1 ,F3: 0~8.7 ,F4: 0~13.5
Reversing speed (km/h)	R1: 0~5.6 ,R2: 0~7.1 ,R3: 0~8.7 ,R4: 0~13.5
Chassis System
Wheelbase (mm)	-
Tank capacity
Fuel tank (L)	265
Working device
Compacting width(mm)	2140
