• Model NO.：SR26-5
• Compaction Depth：2140mm
• Engine Type：Diesel Engine
• Travel Speed：25cm,s
• Centrifugal Force：500kn
• Certification：CE, ISO 9001:2000, ISO 9001:2008
• Condition：New
• Transport Package：Nude Packing
• Specification：6501*2562*3258mm
• Trademark：SHANTUI
• Origin：China
• HS Code：8429401100
• Production Capacity：100,Month

Basic Info.

Model NO. SR26-5 Compaction Depth 2140mm Engine Type Diesel Engine Travel Speed 25cm/s Centrifugal Force 500kn Certification CE, ISO 9001:2000, ISO 9001:2008 Condition New Transport Package Nude Packing Specification 6501*2562*3258mm Trademark SHANTUI Origin China HS Code 8429401100 Production Capacity 100/Month

Product Description

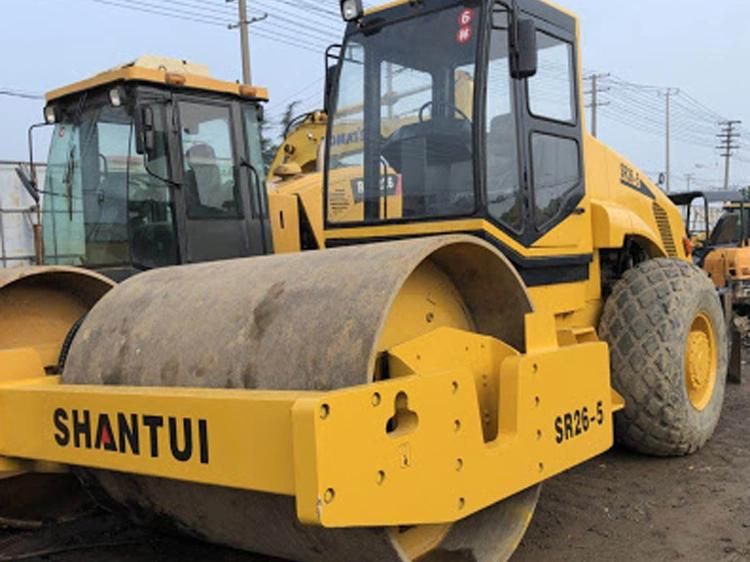

Top quality Shantui 26 Ton Full-Hydraulic Single-Drum Vibratory Road Roller SR26-5
 Less malfunctions and convenient maintenances

1. The structural parts inherit the excellent quality of Shantui mature products.

2. The core electric and hydraulic parts adopt imported products, featuring stable and reliable quality and extremely high reliability.

3. The modular structure eases the disassembling of parts and ensures low maintenance cost and easy maintainability.

4. The engine oil drainage plug is installed on the bottom of fuel tank to ease the replacement of engine oil.

Extensive working condition adaptability

1. The hydrostatic drive system is capable of stepless speed regulation and flexible steering to adapt to diversified working conditions and realize the compacting operation in narrow spaces.

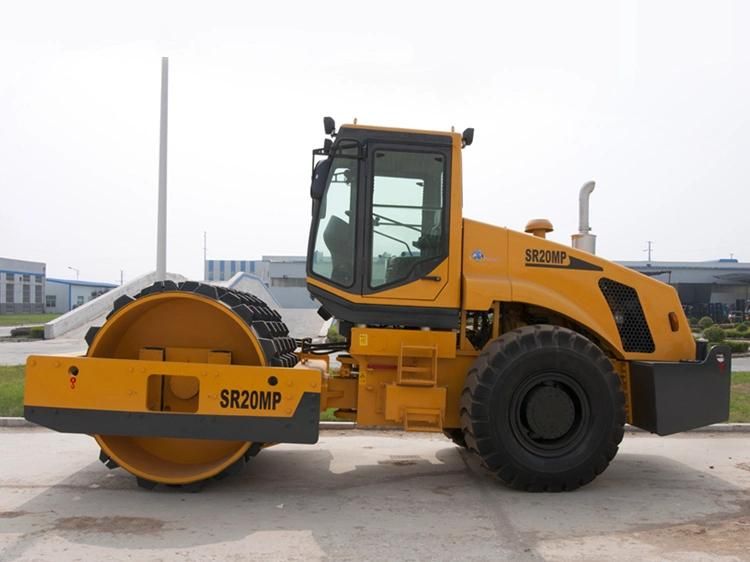

2. The optional padfoot vibrating drum can be installed to expand the application scope of product and bring about value-added return of "One machine for two applications" for the user.

High efficiency and low fuel consumption

1.This product is powered by Shangchai SC9DK220G3 high pressure common rail engine, featuring high fuel injection pressure, excellent fuel economy, super-high market ownership volume, high parts interchangeability, and low maintenance cost.

2. Shantui's proprietary match technology can achieve highest working efficiency and most reasonable fuel economy, with the composite fuel consumption reduced by 10~12%.

High flexibility and usability

1. The traveling system is controlled by flexible shaft joystick to realize accurate control by low operating force, featuring low operating force, flexible and handy operations, and high operating comfort and working efficiency.

2. The electronic control accelerator is installed on the control box, featuring high operating comfort and handy operations.

High safety and comfort

1.The ergonomic cab features large space and excellent visual field.

2. The excellent overall airtightness of cab and the three-stage shock-absorption for whole machine achieve low vibration and noise and the seat position and backrest angle are adjustable in large range to guarantee high operating comfort.

3. The safety passageway system and the reasonably arranged safety handrails and anti-skid footplates for whole vehicle guarantee the driver's safety.

Parameter name	SR26-5
Performance parameters
Operating weight (Kg)	26000
Exciting force (KN)	500
Vibration frequency (Hz)	29/35
Nominal amplitude (mm)	2.0/1.0
Gradeability (%)	45
Engine
Engine model	SC9DK220G3
Rated power/rated speed (kW/rpm)	162kw/2200rpm
Overall dimensions
Overall dimensions of machine (mm)	6501*2562*3258
Driving performance
Forward speed (km/h)	F1:3.8 ,F2:5.5 ,F3:5.6 , F4 10.0
Reversing speed (km/h)	R1:3.8 ,R2:5.5, R3:5.6 , R4 10.0
Chassis System
Wheelbase (mm)	3300
Tank capacity
Fuel tank (L)	370
Working device
Compacting width(mm)	2140
