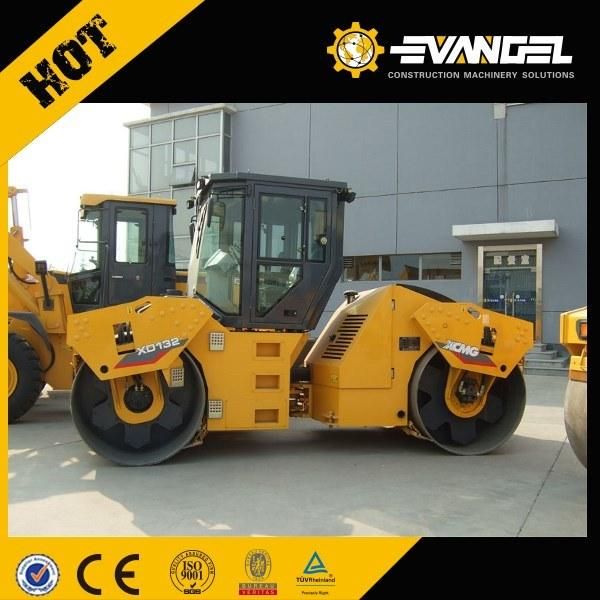

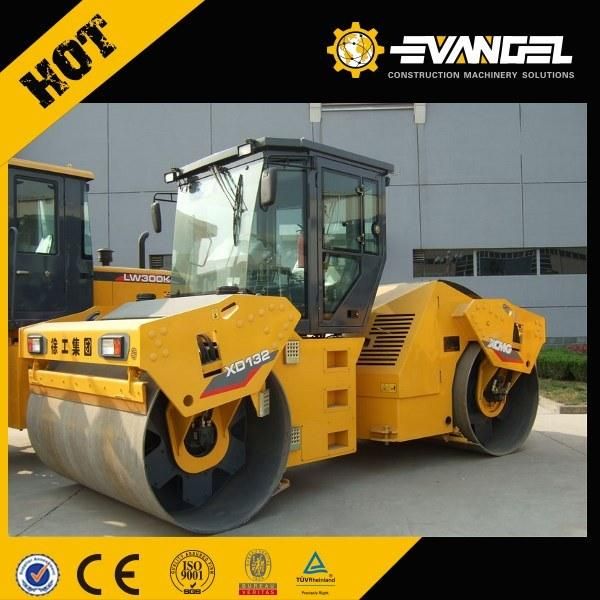

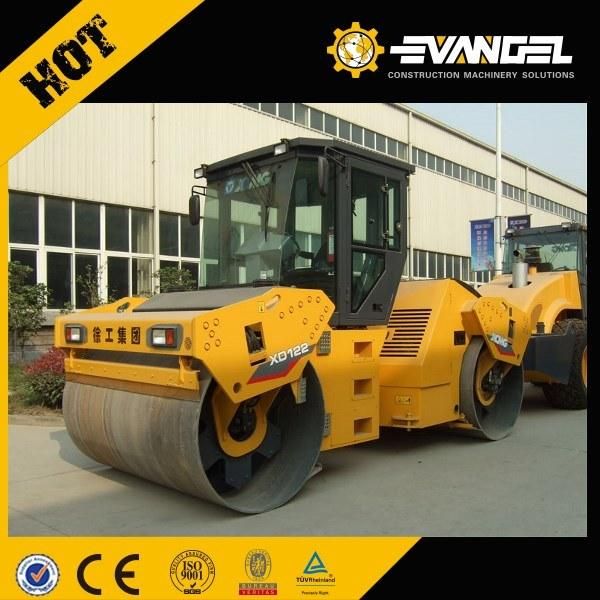

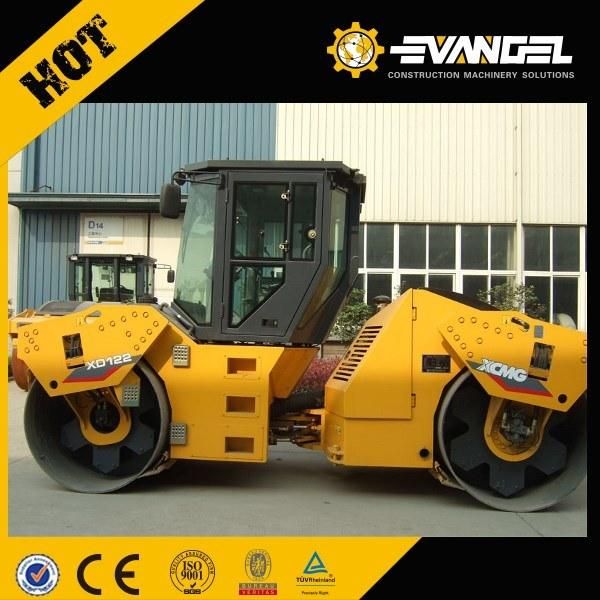

14 Ton Hydraulic Walk Behind Double Drum Vibratory Road Roller
Evangel Industrial (Shanghai) Co., Ltd.- Type：Road Roller
- Object：Gravel Road
- Moving Type：Mobile
- Mixing Method：Continuous Drum
- Automatic Grade：Automatic
- Product Capacity：>400t,h
Base Info
- Certification：ISO9001: 2000, CE
- Condition：New
- Specification：13300*3490*3450
- Origin：China
- Production Capacity：50000
Description
Basic Info.
Certification ISO9001: 2000, CE Condition New Specification 13300*3490*3450 Origin China Production Capacity 50000Product Description
14 ton Hydraulic Walk Behind Double Drum Vibratory Road Roller ManufacturerGeneral Introduction:
Operating weight :14 tons
Shangchai 4H engine
Homemade axle & gearbox
Detachable cabin with air condtioner
This roller can effectively compact various soil layers and rock fill, and can be applied to the constructions of modern freeways, airports, embankment fill, ports, dams, railways, mines, etc.
Technical Specification:
| Model | XS143J |
| Operating weight(KG) | 14000 |
| Weight on front drum(KG) | 7000 |
| Static linear pressure(N/cm) | 322 |
| Speed range (km/h) | |
| Speed I | 2.7 |
| Speed II | 4.8 |
| Speed III | 10.5 |
| Theoretical gradeability(mm) | 30 |
| Min. external turning radius(mm) | 6800 |
| Steering angle(°) | ±30 |
| Oscillating angle(°) | ±11 |
| Vibration frequency(Hz) | 28 |
| Nominal amplitude (high/low)(mm) | 1.9/0.95 |
| Excitation force (high/low amplitude)(kN) | 274/137 |
| Engine model | SC4H140.1G2 |
| Type | Water cooled, pressurized |
| Max. power(kW) | 103@1800r/min |
| Outside dimensions(mm) | 6150×2300×3200 |
