• Model NO.：SE70-9
• Size：Small-Scale
• Certification：CE, ISO9001: 2000
• Condition：New

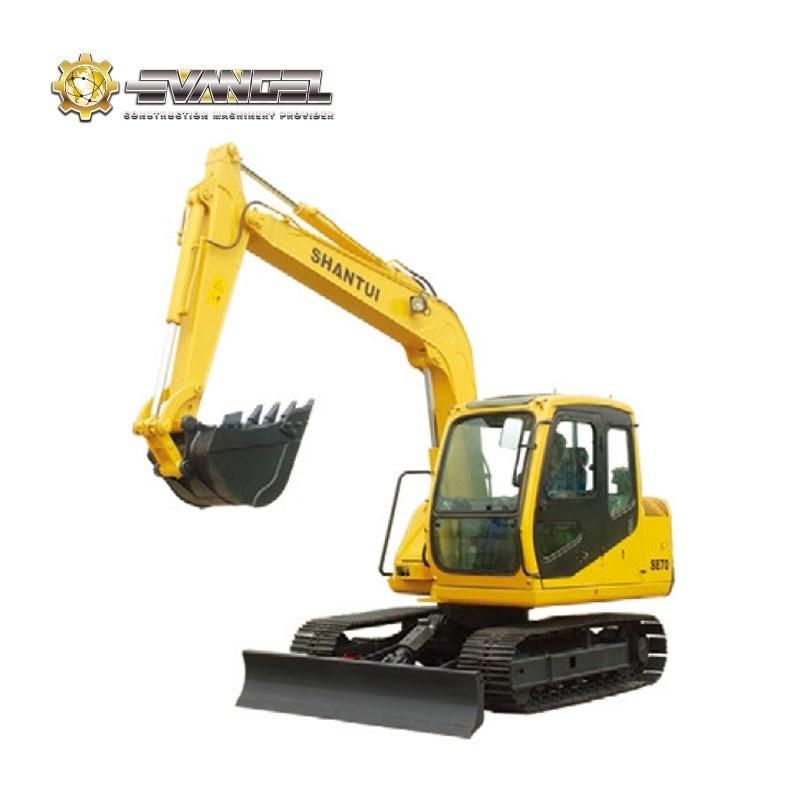

• Product Name：Crawler Excavator
• Backhoe Bucket：0.32 M3
• Engine Model：Weichai Wp3 (Tier 3)
• Rated Power：48 Kw,2000 Rpm
• Operating Weight：7.65 Ton
• Displacement：3.3 L
• Oil Capacity：120 L
• Number of Bucket Teeth：4
• Bucket Width：860 mm
• Arm Length：1.65 M
• Maximum Digging Depth/Height：4.12m,6.945 M
• Minimum Swing Radius：2.04 M
• Gradeability：70%
• Hydraulic System：Imported Variable Plunger Pump
• Engine Type：Water-Cooling, Turbo Charging
• Transport Package：in Bulk or in Container
• Specification：Operating weight 7.65 t
• Trademark：SHANTUI
• Origin：China
• Production Capacity：500units,Month

ENGINEModelWeichai WP3TypeWater-cooling,turbo chargingDisplacement3.3 LPower output48kW/2200 rpmMaximum torque263NM/1400-1600rpmHYDRAULIC SYSTEMPumpImportedTypeVariable plunger pump TRAVEL SYSTEMTravel motorVariable axial piston motorTravel brakesLubricated double-discGradeability70%OIL CAPACITYFuel tank120 LSWING SYSTEMBrakePressure Release, Mechanical BrakingSwing speed11 rpmBUCKETBucket capacityBackhoe bucket 0.32m³(SAE)Number of bucket teeth4Bucket width860 mmArm length1.65 mMaximum digging reach/Maximum digging reach at ground level6.36m /6.205 mMaximum digging depth/height4.12m / 6.945 mMaximum dumping height4.895mMinimum swing radius2.04 m
