3.0cbm Bucket Foton Lovol FL958g 5ton Wheel Loader
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Certification：ISO9001: 2000
- Condition：New
- Walking Mode：Wheeled
- Type：Medium-sized Loader
- Load and Unload Method：Front Discharge
- Transport Package：Nude, Suitable for Shiping
Base Info
- Specification：ISO
- Trademark：Foton
- Origin：Shandong, China
- Production Capacity：100 Sets,Month
Description
Basic Info.
Specification ISO Trademark Foton Origin Shandong, China Production Capacity 100 Sets/MonthProduct Description

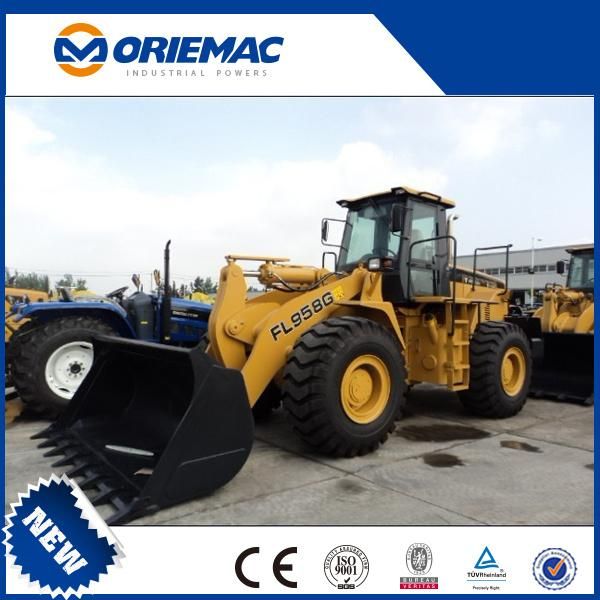

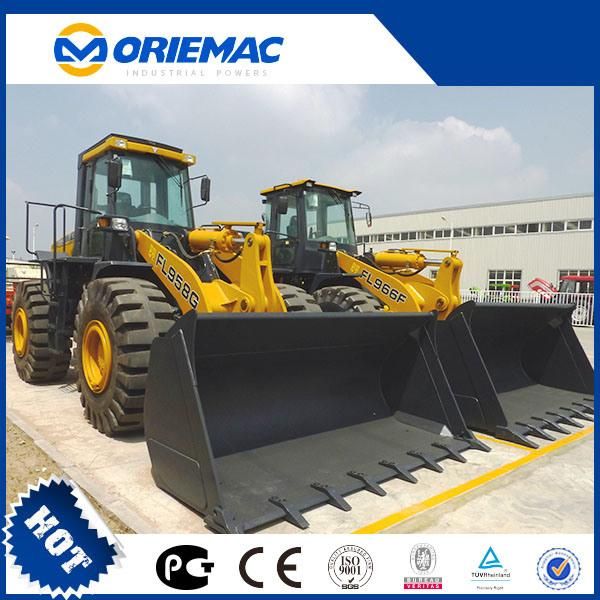

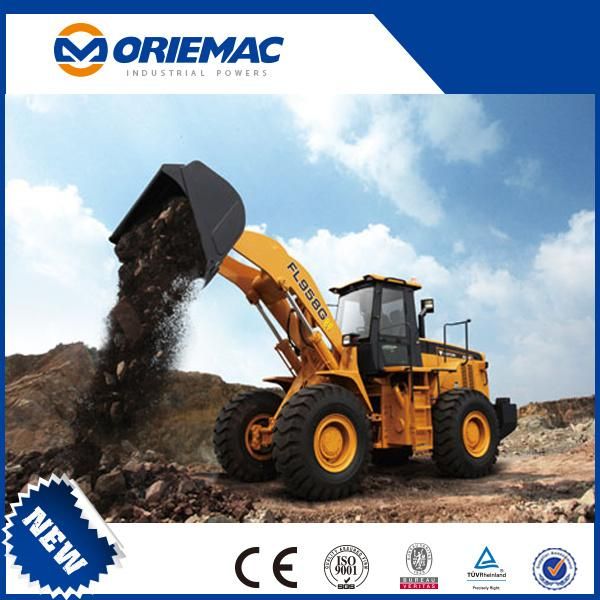

3.0cbm bucket Foton Lovol Fl958g 5ton Wheel Loader1. Weichai WD10G220E23 162kw engine
2. Bucket capacity 3cbm
3. Operating weight 17100kg
4. AC cab
| Parameter Items | Parameter Value |
| 1.Main parameter | |
| Rated load (KG) | 5000 |
| Operating Weight (standard) (KG) | 17100 |
| Rated Bucket Capacity (m3) | 3 |
| Maximum breakout force (KN) | 185 |
| Maximum traction force (KN) | 160 |
| Total hydraulic cycle time (S) | 10.6 |
| Maximum dump height (mm) | 3180 |
| Maximum dump distance (mm) | 1160 |
| Forward speed range (KM / H) | 0~38.4 |
| Back speed range (KM / H) | 0~24.2 |
| Transport dimensions (L × W × H) (mm) | 7960×2970×3450 |
| Maximum steering angle (°) | 37 |
| Max grade ability(°) | 30 |
| Minimum turning radius (mm) | 6770 |
| Tire Size | 23.5-25-16PR |
| 2.Engine parameter | |
| Model | Weichai WD10G220E23 |
| Type | 6-cylinder, in-line, direct injection and turbocharged |
| Power (KW) | 162 |
| Maximum torque (N.M) | 930 |
| Cylinder diameter (mm) | 126 |
| Stroke (mm) | 130 |
| Displacement(L) | 9.756 |
| Fuel consumption (G / Kw.h) | 220 |
| 3.Hydraulic system | |
| Work system pressure (Mpa) | 20 |
| 4.Braking System | |
| Running braking system type | Single pipe air-oil 4-wheel clipper disc braking |
| Parking / emergency brake system type | Drum braking |
| 5.Fuel Tank Capacity | |
| Fuel tank (L) | 280 |
| Hydraulic Tank capacity (L) | 210 |
