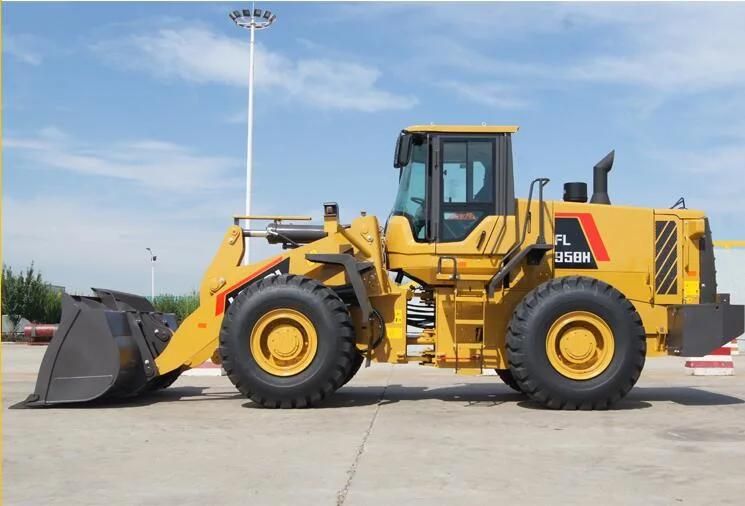

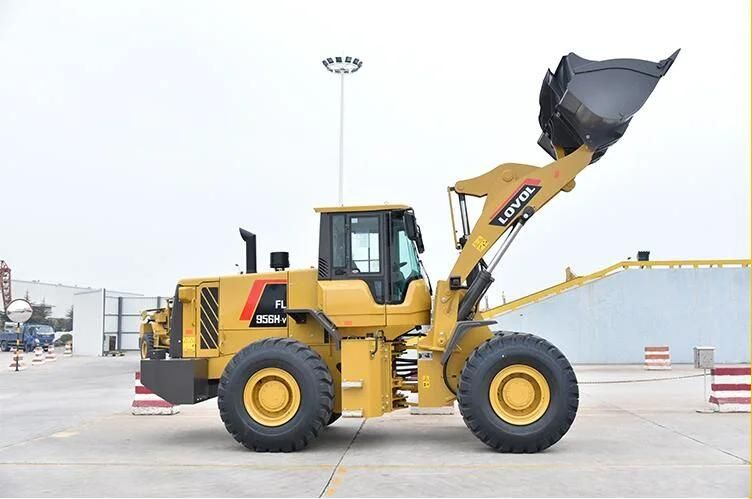

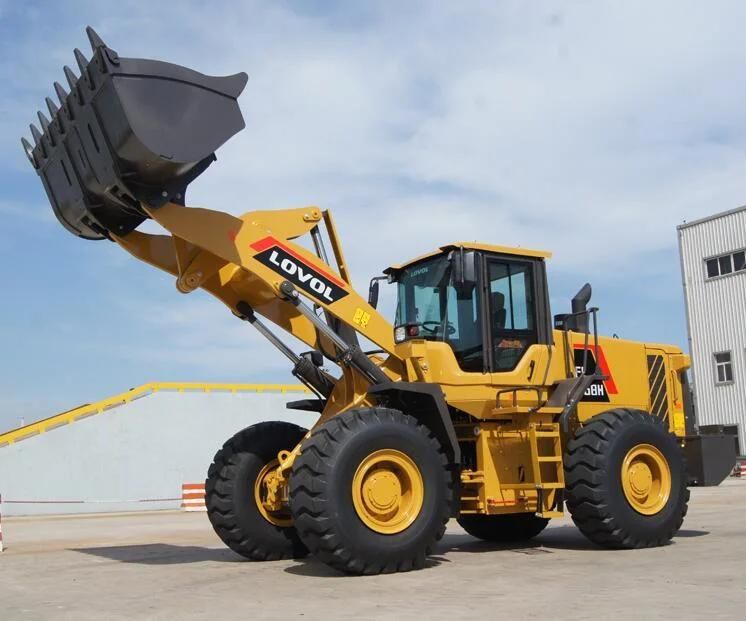

Lovol Payloader 5 Ton 3m3 Bucket Wheel Loader FL956h

Evangel Industrial (Shanghai) Co., Ltd.
  • Certification：ISO, CE
  • Condition：New
  • Rated Load：5t
  • Transmission：Hydraulic
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled

Base Info

  • Model NO.：FL956H
  • Type：Medium-sized Loader
  • Operating Weight：17000kg
  • Bucket Capacity：3m3
  • Wheel Base：2920mm
  • Transport Package：Nude Package
  • Specification：8360*2980*3380mm
  • Trademark：Lovol
  • Origin：Shandong, China
  • HS Code：8429510000
  • Production Capacity：50units,Month

Description

Operating mass(kg)17040Bucket capacity3.3Rated load(kg)5500Traction(kN)160Digging force(kN)165Gradeability30Unloading height(mm)3100Unloading distance(mm)1160Min. ground diatance(mm)440Wheel tread(mm)2150Wheelbase(mm)3300Bucket outer turning radius(mm)7020Outline distance(mm)8360*2980*3380ModelWeichai WD10G220E23Max. torque(N·m)900Rated power(kW)162Rated rotational speed(rpm)2000Gearbox shiftFront:2 gears Rear:1 gearsMax. speed42.0Type23.5-25Ply rating16Steering angle37Operating modelPilot controlSum of three items(s)10.6Fuel tank(L)320Hydraulic oil tank(L)134Lovol Payloader 5 Ton 3m3 Bucket Wheel Loader FL956hLovol Payloader 5 Ton 3m3 Bucket Wheel Loader FL956hLovol Payloader 5 Ton 3m3 Bucket Wheel Loader FL956h
