• Model NO.：SD32
• Condition：New
• Color：Yellow
• Engine：257,2000 Kw,Rpm
• Ground Pressure：97.7kpa
• Center Distance of Track：2140mm
• Ground Length：3150mm
• Fuel Tank：640L
• Width of Track Shoes：710mm
• Transport Package：Container
• Specification：8650*4130*3760mm
• Trademark：SHANTUI
• Origin：China
• Production Capacity：50000pieces,Year

Basic Info.

Model NO. SD32 Condition New Color Yellow Engine 257/2000 Kw/Rpm Ground Pressure 97.7kpa Center Distance of Track 2140mm Ground Length 3150mm Fuel Tank 640L Width of Track Shoes 710mm Transport Package Container Specification 8650*4130*3760mm Trademark SHANTUI Origin China Production Capacity 50000pieces/Year

Product Description

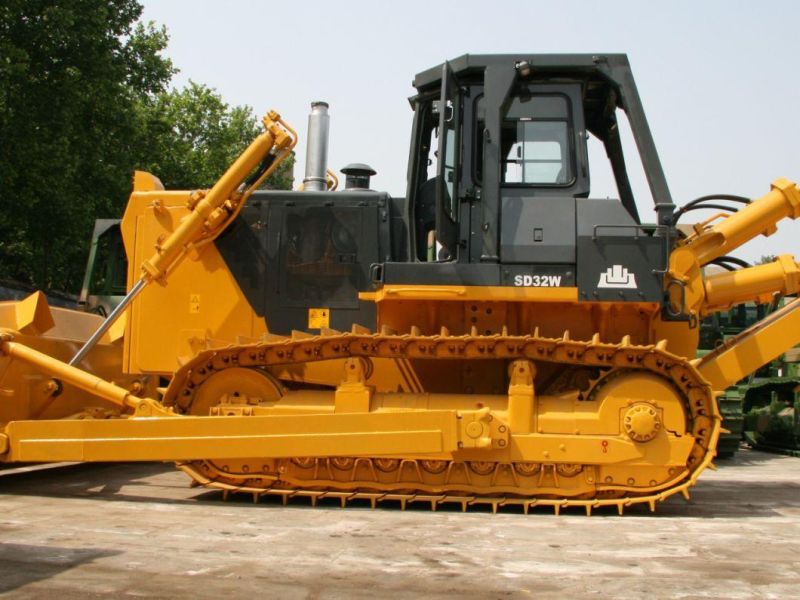

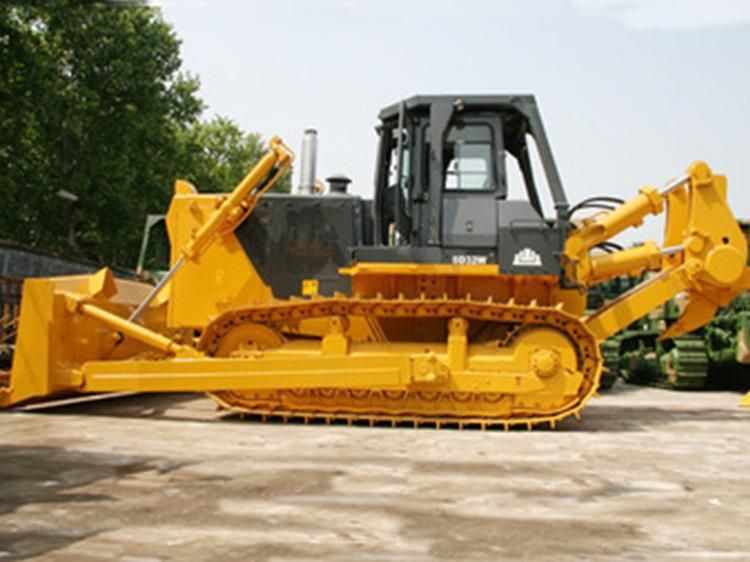

SHANTUI Brand New SD32 320HP BulldozerEasy maintenances

The structural parts inherit the excellent quality of Shantui mature products.

The electric harnesses adopt corrugated pipes for protection and deconcentrators for branching, featuring high protection grade.

The openable large-space side hoods make the repairs and maintenance easier.

All lubricating and maintenance points of machine are directed to the outer side of machine body to achieve convenient and rapid maintenances.

Working adaptability

Shantui's mature product chassis system is applicable to diversified severe working conditions, featuring high stability and reliability.

Long ground length, high ground clearance, stable driving, and good trafficability.

The straight tilting blade, semi-U blade, U-blade, angle blade, coal blade, rock blade, environmental sanitation blade, ripper, and traction frame can be installed depending on specific working condition to achieve higher working adaptability. The optional LED working lamps improve the illumination capability during nighttime operations to achieve higher safety and reliability.

Parameter name	SD32 (Standard version)	SD32C (Coal version)	SD32W (Rock version)	SD32D (Desert version)	SD32R (Environmental sanitation version)
Performance parameters
Operating weight (Kg)	40200	40500	40900	39500	37100
Ground pressure (kPa)	97.7	98.4	99.4	96	90.2
Engine
Engine model	WP12/QSNT-C345	QSNT-C345	WP12/QSNT-C345	QSNT-C345	QSNT-C345
Rated power/rated speed (kW/rpm)	257/2000,258/2000	257/2000	258/2000,257/2000	257/2000	257/2000
Overall dimensions
Overall dimensions of machine (mm)	8650*4130*3760	8650*4755*3760	8650*4130*3760	8650*4130*3760	8650*4332*3760
Driving performance
Forward speed (km/h)	F1:0-3.6 F2:0-6.6 F3:0-11.5	F1:0-3.6 F2:0-6.6 F3:0-11.5	F1:0-3.6 F2:0-6.6 F3:0-11.5	F1:0-3.6 F2:0-6.6 F3:0-11.5	F1:0-3.6 F2:0-6.6 F3:0-11.5
Reversing speed (km/h)	R1:0-4.4 R2:0-7.8 R3:0-13.5	R1:0-4.4 R2:0-7.8 R3:0-13.5	R1:0-4.4 R2:0-7.8 R3:0-13.5	R1:0-4.4 R2:0-7.8 R3:0-13.5	R1:0-4.4 R2:0-7.8 R3:0-13.5
Chassis System
Center distance of track (mm)	2140	2140	2140	2140	2140
Width of track shoes (mm)	560/610/660/710	560/610/660/710	560/610/660/710	560/610/660/710	560/610/660/710
Ground length(mm)	3150	3150	3150	3150	3150
Tank capacity
Fuel tank (L)	640	640	640	640	640
Working device
Blade type	Straight tilting blade , Angle Blade and Semi-U blade	Semi-U coal blade and coal U-blade	Rock straight tilting blade, rock angle blade and rock semi-U blade	Straight tilting blade , Angle Blade and Semi-U blade	Sanitation blade
Digging depth (mm)	560/630/560	560	560/630/560	560/630/560	560
Ripper type	Single-shank three-shank	Single-shank three-shank	Single-shank three-shank	Single-shank three-shank	--
Ripping depth (mm)	1,250 (Single-shank) and 842 (Three-shank)	1,250 (Single-shank) and 842 (Three-shank)	1,250 (Single-shank) and 842 (Three-shank)	1,250 (Single-shank) and 842 (Three-shank)	--
