• Model NO.：DG-50
• Pitch Length：22.225mm
• Links：100
• Total Length：2222.5mm
• Weight：3kg
• Thickness of Sprockets：35mm
• Thickness of Rollers：40mm
• Transport Package：Kraft Paper, Wooden Case, Pallet
• Specification：50*22.225*100
• Trademark：No Marks or As Buyers′ Requests
• Origin：Shanghai, China
• HS Code：8431499900
• Production Capacity：3000 Pieces,Month

(1). Less round damage
Rubber tracks cause less damage to roads than steel tracks, and less rutting of soft ground than either steel tracks of wheel products.
(2). Low noise
A benefit to equipment operating in congested areas, rubber track products less noise than steel tracks.
(3). High speed
 Rubber track permit machines to travel at a higher speed than steel tracks.
(4). Less vibration
 Rubber tracks insulate machine and operator from vibration, extending the machine's lifetime and lowering operate fatigue.
(5). Low ground pressure
The ground pressure of rubber tracks equipped machinery can be fairly low, about 0.14-2.30 kg/ cmm , a major reason for its use on the wet and soft terrain .
 (6). Superior traction
The added traction of rubber, track vehicles permits them to pull twice the load of wheel vehicles of the sane weight.
3. Application:
For small robot, mini excavator, bulldozer, agriculture, engineering, etc..

4.Warranty:
Guarantee one year under normal use.

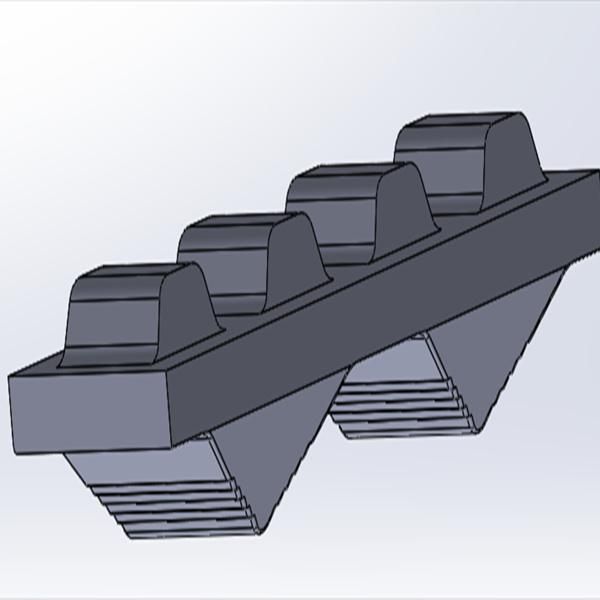

3D Drawings:


Small Sizes:
Rubber Tracks Specification Type:GF-BType:GMD-BType:JQ-BType:DN-BLink No.54Link No.46Link No.66Link No.50Pitch:19mmPitch:20mmPitch:12.7mmPitch:18.5mmWidth:50mmWidth:50mmWidth:60mmWidth:60mmTotal length:1026mmTotal length:920mmTotal length:838.2mmTotal length:925mmWeight:0.5KgWeight:0.5KgWeight:1.2KgWeight:0.44Kg    Type:JQ-AType:BF-AType:TH-85Type:BD-ALink No.120Link No.108Link No.24Link No.50Pitch:12.7mmPitch:15mmPitch:59.4mmPitch:40mmWidth:76mmWidth:80mmWidth:85mmWidth:100mmTotal length:1524mmTotal length:1620mmTotal length:1425.6mmTotal length:2000mmWeight:1.92KgWeight:1.2KgWeight:1.92KgWeight:4Kg    Type:GMD-AType:QD-118Type:RN-20Type:DB-ALink No.76Link No.20Link No.20Link No.18Pitch:20mmPitch:60mmPitch:60mmPitch:61mmWidth:100mmWidth:118mmWidth:120mmWidth:118mmTotal length:1520mmTotal length:1200mmTotal length:1200mmTotal length:1098mmWeight:1.84KgWeight:2.6KgWeight:2.5KgWeight:2.32Kg    Type:PY-148Type:CX-118Type:WG-123Type:WJ-130Link No.34Link No.24Link No.60Link No.68Pitch:60mmPitch:61mmPitch:38mmPitch:40mmWidth:148mmWidth:118mmWidth:123mmWidth:130mmTotal length:2040mmTotal length:1464mmTotal length:2280mmTotal length:2754mmWeight:10.9KgWeight:3.9KgWeight:4.5KgWeight:7.4Kg    Type:DN-AType:TH-136Type:SL-140Type:ZY-148Link No.76Link No.41Link No.36Link No.36Pitch:18.5mmPitch:45mmPitch:80mmPitch:60mmWidth:130mmWidth:136mmWidth:140mmWidth:148mmTotal length:1406mmTotal length:1845mmTotal length:2880mmTotal length:2160mmWeight:2.2KgWeight:3.56KgWeight:10KgWeight:16Kg    Type:YSD-165Type:PY-180Type:YN-180Type:HC-200Link No.36Link No.42Link No.37Link No.60Pitch:64.5mmPitch:65mmPitch:72mmPitch:60.2mmWidth:165mmWidth:180mmWidth:180mmWidth:200mmTotal length:2322mmTotal length:2730mmTotal length:2664mmTotal length:3612mmWeight:13KgWeight:15kgWeight:17.5KgWeight:18Kg    Type:HS-200Type:WHKD-170Type:YT-200Type:JH-220Link No.18Link No.31Link No.46Link No.26Pitch:72mmPitch:64mmPitch:52.5mmPitch:85mmWidth:200mmWidth:170mmWidth:200mmWidth:220mmTotal length:1296mmTotal length:1984mmTotal length:2415mmTotal length:2210mmWeight:13.5KgWeight:7.5kgWeight:18.1KgWeight:23.4kg    Type:SQ-AType:SQ-BType:WD-255Type:TG-320Link No.65Link No.30Link No.35Link No.33Pitch:53.5mmPitch:72mmPitch:73mmPitch:87mmWidth:220mmWidth:255mmWidth:255mmWidth:320mmTotal length:3477mmTotal length:2145mmTotal length:2625mmTotal length:2871mmWeight:13.4KgWeight:13.5kgWeight:15.92kgWeight:31.5Kg

Excavator Sizes:

Width*Pitch length(mm)	Number of Links	Width*Pitch length(mm)	Number of Links	Width*Pitch length(mm)	Number of Links
130*72	28-53	300*52.5K	72-84	400*72.5KW	68-92
150*60	28-49	300*52.5KW	72-92	400*74	68-76
150*72	29-40	KB300*52.5	72-92	400*75.5K	74
170*60	30-40	KB300*52.5N	72-98	B400*86	52-55
180*60	30-40	JD300*52.5N	72-98	400*90	42-56
180*72	30-58	300*53K	80-84	Y400*142	36-37
180*72K	30-37	300*55	70-86	400*144	36-41
B180*72K	34-51	300*55.5K	76-82	Y400*144K	36-41
B180*72A	30-51	300*71K	72-55	420*100	50-58
H180*72	30-50	300*109N	25-42	450*71	76-88
190*60	30-40	K300*109	37-41	DW450*71	76-88
190*72	34-39	300*109WK	35-42	450*73.5	76-84
200*72	34-47	B300*84	78-52	450*76	80-84
200-*72K	37-47	T300*86K	48-52	450*81N	72-80
230*48	60-84	320*52.5	72-98	450*81W	72-78
230*48K	60-84	B320*52.5	68-98	KB450*81.5	72-80
230*72	42-56	320*54	70-84	K450*83.5	72-74
230*72K	42-56	B320*86	49-52	B450*84	53-56
230*96	30-48	320*90	52-56	B450*86	52-55
230*101	30-36	320*100	38-54	450*90	58-76
250*47K	84	320*100W	37-65	KU450*90	58-76
250*48.5K	80-88	Y320*106K	39-43	T450*100K	48-65
250*52.5K	72-78	350*52.5	70-92	K450*163	38
250*72	47-57	350*54.5K	80-86	485*92W	74
B250*72	34-60	B350*55K	77-98	500*90	76-82
B250*72B	42-58	350*56	80-86	500-92	72-84
E250*72	37-58	350*75.5K	74	500*92W	78-84
250*96	35-38	350*90	42-56	500*100	71
250*109	35-38	350*100	46-60	K500*146	35
260*55.5K	74-80	350*108	40-46	600*100	76-80
Y260*96	38-41	350*109	41-44	600*125	56-64
260*109	35-39	Y370*107K	39-41	700*100	80-98
280*72	45-64	400*72.5N	70-80	750*150	66
Y280*106K	35-42	400*72.5W	68-92	800*125	80
300*52.5N	72-98	Y400*72.5K	72-74
300*52.5W	72-92	KB400*72.5K	68-76


In order to offer the detail quotation to you timely, could you please kinldy tell us the following QUESTIONS?
1. Which part is you need, the part name
2. The model and the sizes for the part you need? normally we could confirm the product and find out the price
according to the model. or if not, we would like to talk the details with you.
3. The quantity you need? more quantity more cheaper.
4. The way to transportation and the receipt address?

kindly note:
small order is accepted, for some items, 1 piece is possible.
As to normal models, we have the goods in stock.
Standard package.
With over 10 years experience in the construction equipment spare parts business, we understand your need for
urgent and efficient delivery of your spare parts and committed to providing you with prompt and quality service.
Any questions, please feel free to contact us at any time. we will do our best job for you.
