Robot Rubber Track 123X38X60 with Wheel for Robotic
Shanghai Puyi Industrial Co., Ltd.- After-sales Service:Replacement
- Warranty:12 Months Under Normal Use
- Type:Crawler
- Application:Robot and Other Small Machine
- Certification:ISO9001: 2000
- Condition:New
Base Info
- Model NO.:123*38*60
- Material:Rubber
- Width:123mm
- Pitch:38mm
- Links:60(Can Be Customized)
- Length:2280mm
- Color:Black
- Delivery Time:15 to 25 Days
- Transport Package:Bare Packing or Wooden Pallet
- Specification:123*38*60
- Trademark:No Marks or As Buyer′s Requests
- Origin:Shanghai
- HS Code:8431499900
- Production Capacity:5000PCS,Month
Description

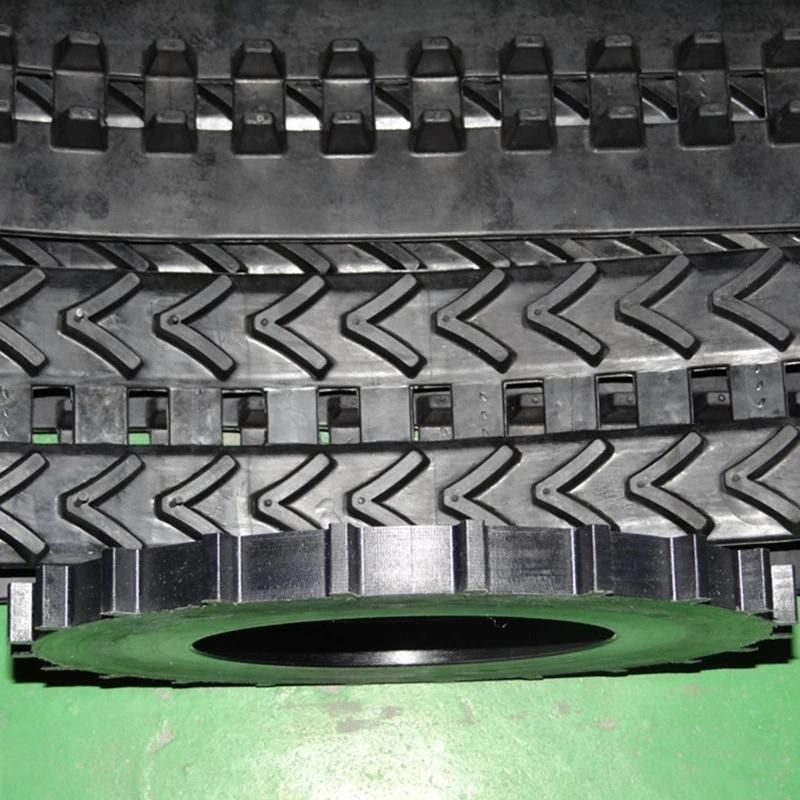

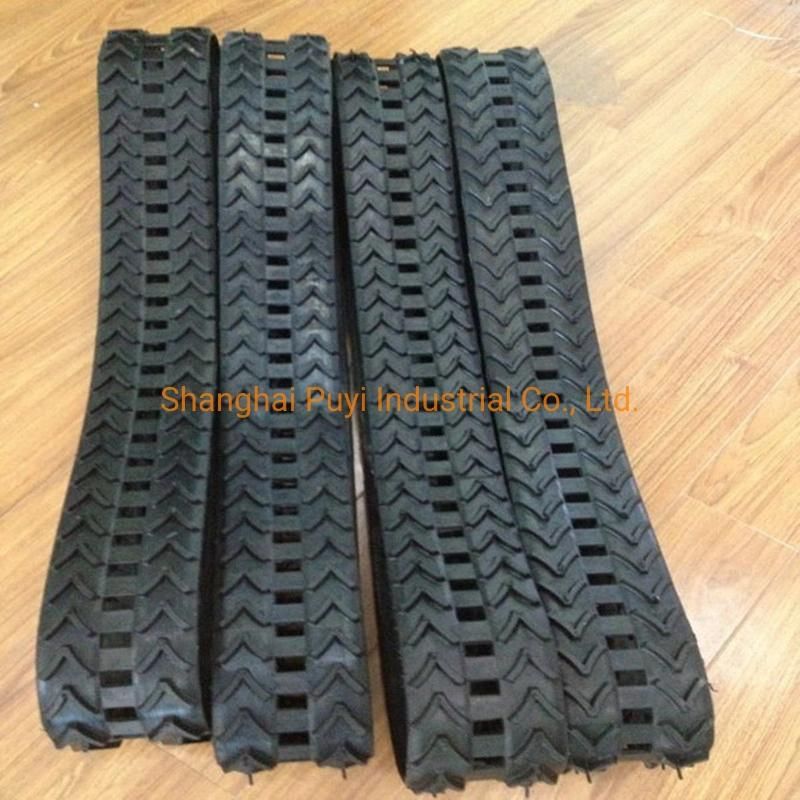

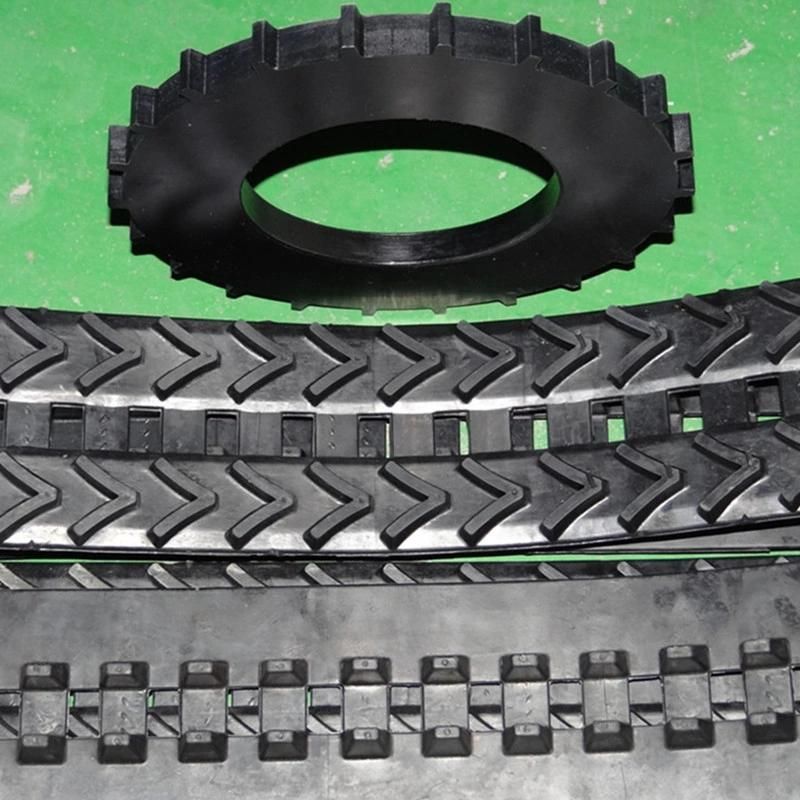

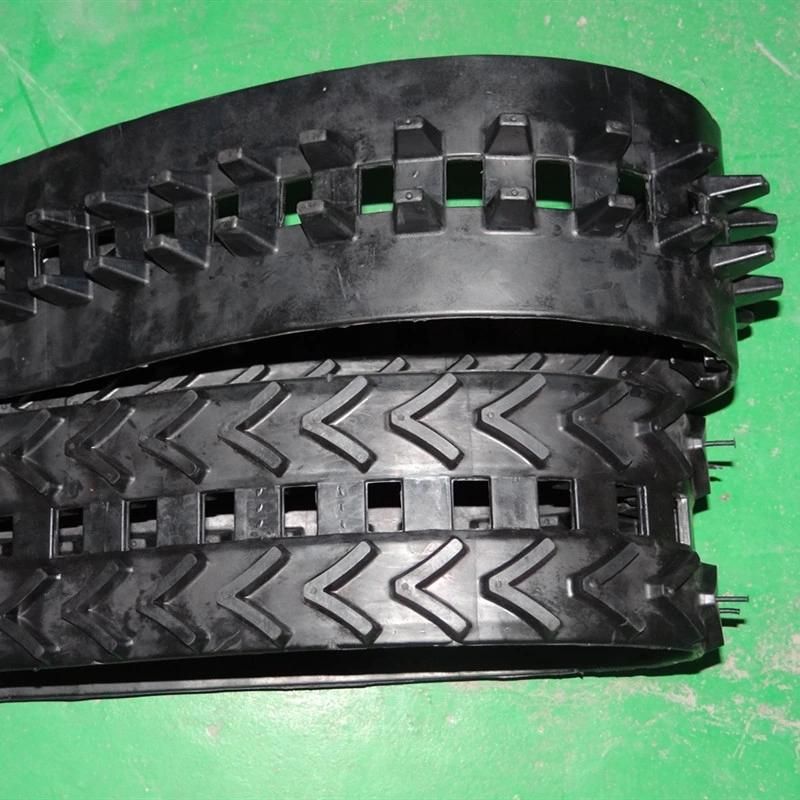

Specifications of the rubber track 123x38x60:
Width:123mm
Pitch:38mm
Link:60
Overall length:2280mm
Links and length can be adjustable
Weight:10kg
Material: natural rubber, Kevlar fiber
Apply to:Robot,mini Skid steer loader,Stair climbing robot etc.
2). Conventional type or interchangeable type rubber track
3). Warranty: Guarantee one year under normal use
4). Application: Mini-excavator, bulldozer, dumper, crawler loader, crawler crane, crawler
Carrier vehicle, agriculture machinery, paver and other special machine
2. The feature of rubber tracks:
(1). Less round damage
Rubber tracks cause less damage to roads than steel tracks, and less rutting of soft ground
Than either steel tracks of wheel products.
(2). Low noise
A benefit to equipment operating in congested areas, rubber track products less noise
Than steel tracks.
(3). High speed
Rubber track permit machines to travel at a higher speed than steel tracks.
(4). Less vibration
Rubber tracks insulate machine and operator from vibration, extending the machine's lifetime and Lowering operate fatigue.
(5). Low ground pressure
The ground pressure of rubber tracks equipped machinery can be fairly low, about 0.14-2.30 kg/ cmm, A major reason for its use on the wet and soft terrain.
(6). Superior traction
The added traction of rubber, track vehicles permits them to pull twice the load of wheel vehicles
Parameter:Rubber Tracks SpecificationType:PY-50A Type:PY-50B Type:PY-60A Type:PY-60B Link No.54 Link No.46 Link No.66 Link No.50 Pitch:19mm Pitch:20mm Pitch:12.7mm Pitch:18.5mm Width:50mm Width:50mm Width:60mm Width:60mm Total length:1026mm Total length:920mm Total length:838.2mm Total length:925mm Weight:0.5Kg Weight:0.5Kg Weight:1.2Kg Weight:0.44Kg Type:PY-76 Type:PY-80 Type:PY-85 Type:PY-100A Link No.120 Link No.108 Link No.24 Link No.50 Pitch:12.7mm Pitch:15mm Pitch:59.4mm Pitch:40mm Width:76mm Width:80mm Width:85mm Width:100mm Total length:1524mm Total length:1620mm Total length:1425.6mm Total length:2000mm Weight:1.92Kg Weight:1.2Kg Weight:1.92Kg Weight:4Kg Type:PY-100B Type:PY-110 Type:PY-115 Type:PY-118A Link No.76 Link No.32 Link No.32 Link No.18 Pitch:20mm Pitch:42mm Pitch:65mm Pitch:61mm Width:100mm Width:110mm Width:115mm Width:118mm Total length:1520mm Total length:1344mm Total length:2080mm Total length:1098mm Weight:1.84Kg Weight:2.12Kg Weight:Kg Weight:2.32Kg Type:PY-118B Type:PY-118C Type:PY-123 Type:PY-130 Link No.20 Link No.24 Link No.60 Link No.28 Pitch:60mm Pitch:61mm Pitch:40mm Pitch:72mm Width:118mm Width:118mm Width:123mm Width:130mm Total length:1200mm Total length:1464mm Total length:2400mm Total length:2016mm Weight:2.44Kg Weight:3.9Kg Weight:8Kg Weight:11.2Kg Type:PY-135 Type:PY-136 Type:PY-140 Type:PY-148 Link No.72 Link No.41 Link No.24 Link No.36 Pitch:18.5mm Pitch:45mm Pitch:80mm Pitch:60mm Width:135mm Width:136mm Width:140mm Width:148mm Total length:1332mm Total length:1845mm Total length:1920mm Total length:2160mm Weight:1.66Kg Weight:3.56Kg Weight:5Kg Weight:16Kg Type:PY-150 Type:PY-180 Type:PY-200 Type:PY-255A Link No.22 Link No.42 Link No.60 Link No.30 Pitch:63.4mm Pitch:65mm Pitch:61.5mm Pitch:72mm Width:150mm Width:180mm Width:200mm Width:255mm Total length:1394.8mm Total length:2730mm Total length:3690mm Total length:2160mm Weight:3.6Kg Weight:20Kg Weight:12Kg Type:PY-255B Type:PY-300 Type:PY-320 Type:PY-350 Link No.35 Link No.58 Link No.33 Link No.53 Pitch:65mm Pitch:109mm Pitch:87mm Pitch:100mm Width:255mm Width:300mm Width:320mm Width:350mm Total length:2275mm Total length:6322mm Total length:2871mm Total length:5300mm Weight:10Kg Weight:22Kg Type:PY-382 Type:PY-400 Type:PY-420 Type:PY-500 Link No.54 Link No.46 Link No.58 Link No.48 Pitch:64mm Pitch:90mm Pitch:100mm Pitch:63.5mm Width:382mm Width:400mm Width:420mm Width:500mm Total length:3456mm Total length:4140mm Total length:5800mm Total length:3048mm Weight:29Kg Weight:43.2Kg About us We supply Rubber Tracks,Rubber Tracks for Truck,Small Rubber Track,Mini Asphalt Paver Rubber
Track,Rubber Track for Harvesting Excvavtor,Rubber Track for Skid Steer Loader,Rubber Track for
snowmobile,Rubber Track for snowblower,Rubber track for robot,etc.
Width:123mm
Pitch:38mm
Link:60
Overall length:2280mm
Links and length can be adjustable
Weight:10kg
Material: natural rubber, Kevlar fiber
Apply to:Robot,mini Skid steer loader,Stair climbing robot etc.
2). Conventional type or interchangeable type rubber track
3). Warranty: Guarantee one year under normal use
4). Application: Mini-excavator, bulldozer, dumper, crawler loader, crawler crane, crawler
Carrier vehicle, agriculture machinery, paver and other special machine
2. The feature of rubber tracks:
(1). Less round damage
Rubber tracks cause less damage to roads than steel tracks, and less rutting of soft ground
Than either steel tracks of wheel products.
(2). Low noise
A benefit to equipment operating in congested areas, rubber track products less noise
Than steel tracks.
(3). High speed
Rubber track permit machines to travel at a higher speed than steel tracks.
(4). Less vibration
Rubber tracks insulate machine and operator from vibration, extending the machine's lifetime and Lowering operate fatigue.
(5). Low ground pressure
The ground pressure of rubber tracks equipped machinery can be fairly low, about 0.14-2.30 kg/ cmm, A major reason for its use on the wet and soft terrain.
(6). Superior traction
The added traction of rubber, track vehicles permits them to pull twice the load of wheel vehicles
Parameter:Rubber Tracks Specification
Track,Rubber Track for Harvesting Excvavtor,Rubber Track for Skid Steer Loader,Rubber Track for
snowmobile,Rubber Track for snowblower,Rubber track for robot,etc.
