• Model NO.：TY230
• Engine Power：169kw +,- 5%
• Certification：CE, ISO9001: 2000
• Condition：New
• Color：Yellow
• Machine Weight：25500kg
• Dozing Capacity：4.5m3
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Blade Type：Straight Tilt Blade
• Width * Height：3725mm*1315mm
• Max.Lift Above Ground：1210mm
• Max.Drop Below Ground：540mm
• Pitch Adjustment：55 Degree
• Max.Tiit：735mm
• Blacle Capacity：5.45m3
• Max. Working Pressure of Hydraulic Syste：13.7MPa
• Rated Speed：1800r,Min
• Min Fuel Consumption Ratio：218g,Kw.H
• Track Width：560mm
• Transport Package：Comply with Export Packaging Requirements
• Specification：5477*3725*3517mm
• Trademark：XCMG
• Origin：Xuzhou, China
• Production Capacity：10000 Unit,Units Per Year

Overview Product Parameters



Specification/Blade typeStraight-tiltAngleU-BladeOperating Weight(kg)174001770017900Min.Ground Clearance(mm)400400400Min.Tuming Radius(m)3.23.23.2Ground Pressure(MPa)0.0690.0700.071Track Gauge(mm)188018801880Max.Pulling Force(KN)142142142Grade Ability(°)303030Blade Capacity(m³)4.54.38.6Blade WidthxHeight(mm)3416x11453970x10374061x1386Max.Lift(mm)111010951095Max.Depth(mm)530545545Max.tilt Adjustment(mm)≥860≥400≥400Pitch Adjustment(°)555555Capability(m³/H)(Theoreticalvalue 40m)247247260Weight Of Blade(kg)235024502560 ENGINEModel&Type Cummins NT855-C280S10/Shangchai SC11CB200G2B1/Weichai WD 10G200E25,6-cylinder,

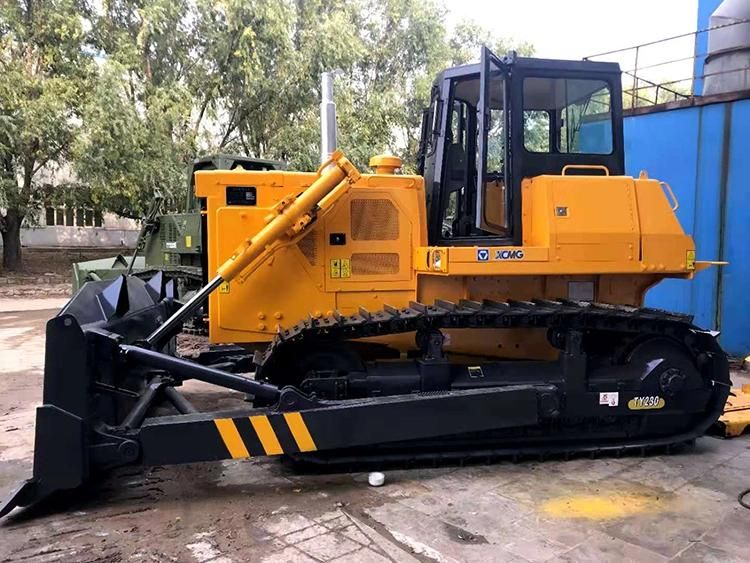

in-line,vertical.water-cooled.4-stroke-cycle,turbo-charged,over valve directs injectionRated Revolution(rpm)1850Flywheel Horsepower(HP)160Cylinder Number-BoreX Stroke(mm)Cummins :6-139.7x152.4Shangchai:6-120.6x152.4Weicha i:6-126x130Piston Displacement(L)1410.59.73Min.Fuel Consumption(g/kW.h)212223223Max.Torque(Nm/rpm)877/1250830/1100830/1100Starting MethodStarting motor 24V 7.5KW Detailed Photos
