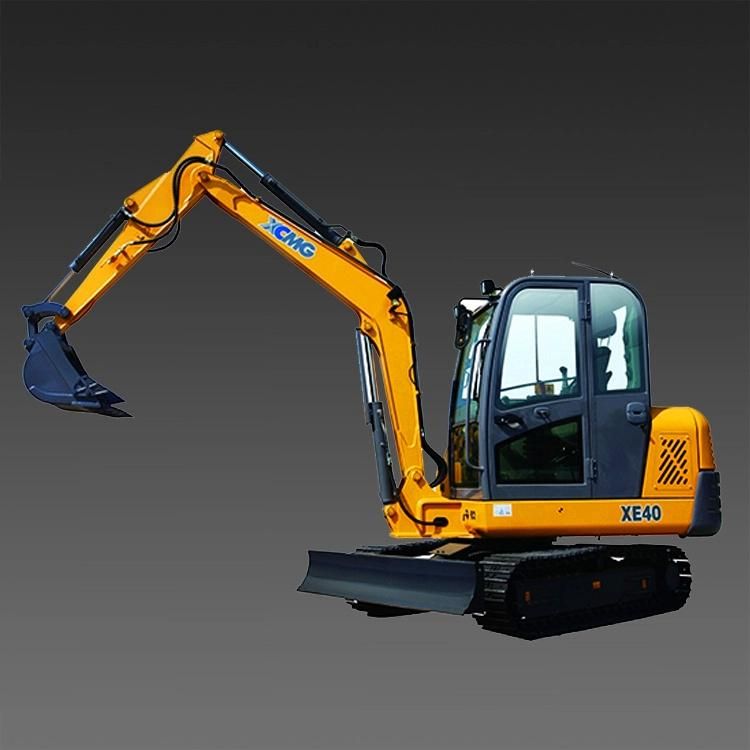

• Model NO.：XE40
• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.14m3
• Size：Small-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Operating Weight：4050kg
• Maximum Digging Height：5317mm
• Maximum Digging Depth：3598mm
• Max Digging Radius：5810mm
• Rated Speed：2200rpm
• Power：27.1kw
• Transport Package：Comply with Export Packaging Requirements
• Specification：5455*1650*2440mm
• Trademark：XCMG
• Origin：Xuzhou, Jiangsu, China
• HS Code：87059091
• Production Capacity：1000,Year

ModelXE40Bucket capacitym30.14Standard bucket widthmm652Operation weightkg4,050Dimension(in transportation)Overall lengthmm5,455Overall widthmm1,650Overall heightmm2,440Min. clearancemm350engineModel4TNV88Total displacementL2.19Rated output powerKW/rpm27.1/2200Digging performanceMax. digging heightmm5,317Max. dumping heightmm3,697Max. digging depthmm3,598Max. vertical digging depthmm3,330Max. digging radiusmm5,810Boom deflection angle ° Min. slew radiusmm2,385Min. rear slew radiusmm1,490Bucket digging forcekn23.2Track typeRubber/steelTrack widthmm300Travel SystemTrack lengthmm2,198Wheel basemm1,721Track gaugemm1,335Travel speed (Gear I/II)km/h4.2/2.6Gradeability%58Slew speedrpm13.5Bulldozing plateBulldozing plate widthmm1650Bulldozing plate heightmm300Lifting distancemm267/365Hydraulic pump typeVariable pump×1      +gear pump×1Slew motor typePiston hydraulic motorTravel motor typePiston hydraulic motorFuel tank capacityL65Hydraulic oil tank capacityL70
