China Top Brand Road Roller 14ton Xs143 Best Quality
Evangel Industrial (Shanghai) Co., Ltd.- Type：Road Roller
- Working Method：Vibration
- Axle：Biaxial Dual-Drum
- Grinding Wheel Type：Slot Grind
- Compaction Depth：40cm
- Engine Type：Diesel Engine
Base Info
- Model NO.：xs143
- Travel Speed：35cm,s
- Centrifugal Force：30.5KN
- Certification：ISO 9001:2000, ISO 9001:2008
- Condition：New
- Theoretical Gradeability：30%
- Max. External Turning Radius：6415mm
- Engine Model：6btaa5.9-C
- Drum Diameter：1523mm
- Vibration Frequency：28,35Hz
- Transport Package：Nude Package
- Specification：14TON
- Origin：Jiangsu, China
Description
Type
Unit
XS143J
Operating weight
kg
14000
Load on front drum
kg
8200
Load on rear wheels
kg
5800
Drum width
mm
2130
Static linear load
N/cm
385
Vibration frequency(Low/High)
Hz
28/35
Nominal amplitude(High/Low)
mm
1.86/0.88
Excitation force(High/Low)
KN
305/225
Travel speed
km/h
0~12
Steering angle
°
±33
Swing angle
°
±10
Theoretical gradeability
%
55
Min. external turning radius
mm
6415
Engine model
B5.9
Engine power
kw
110
Rated engine speed
r/min
2200
Engine oil consumption
g/kW.h
232
Hydraulic oil tank capacity
L
240
Fuel tank capacity
L
240

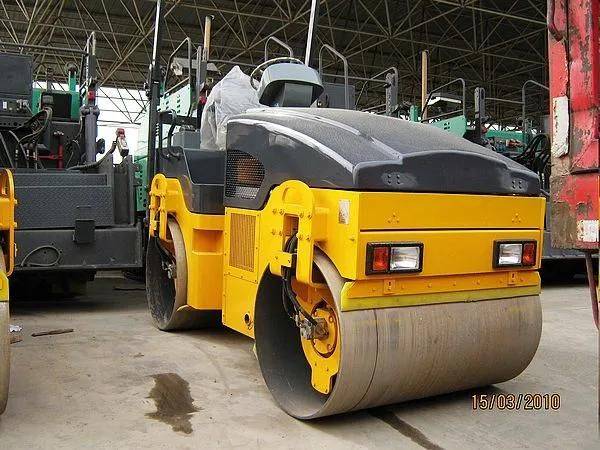

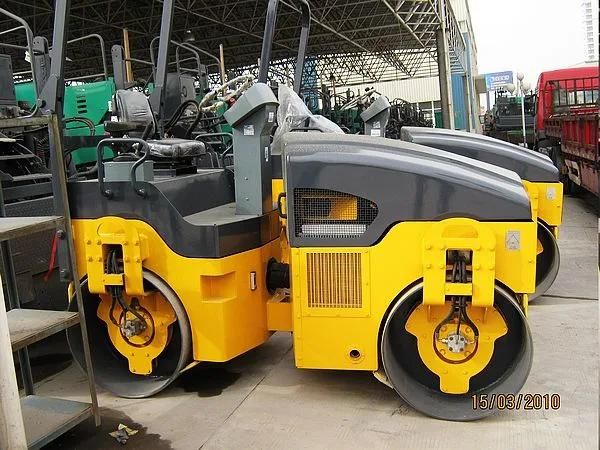

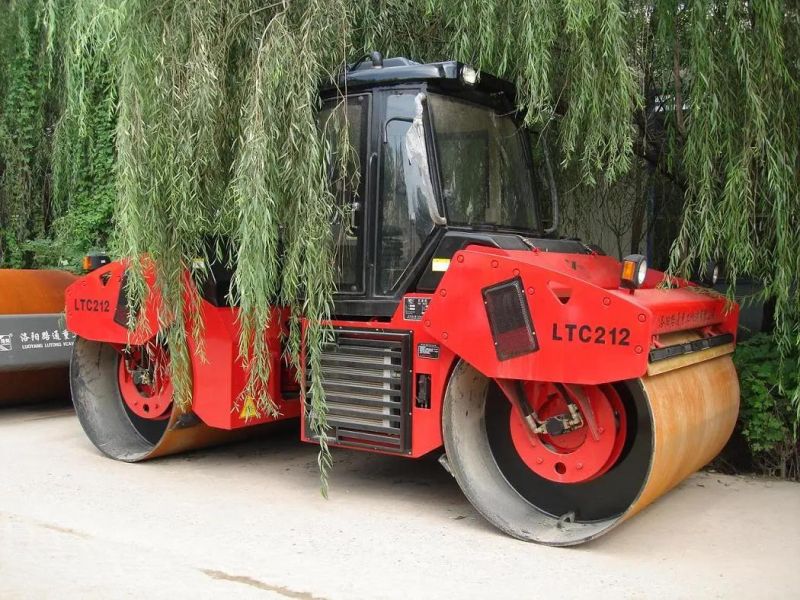

PICTURES
