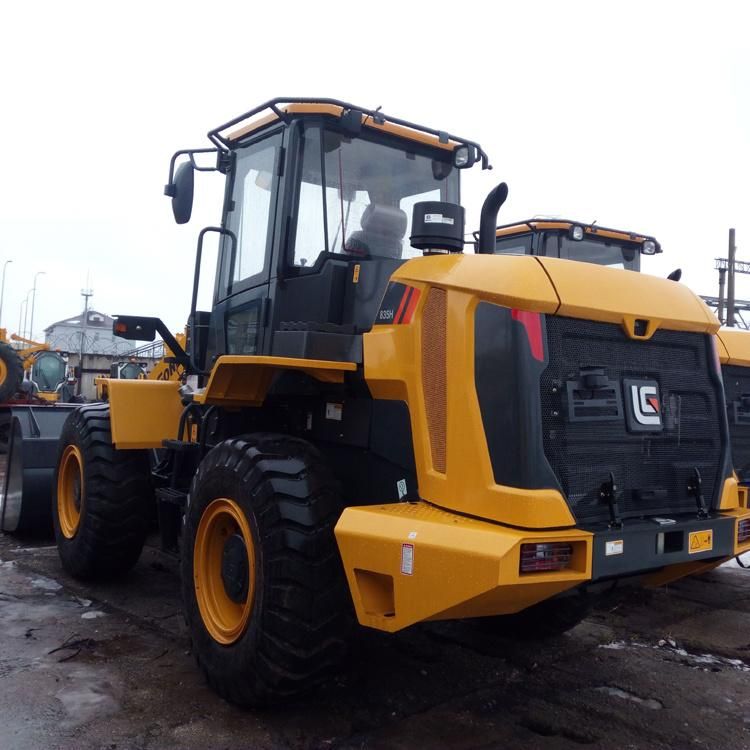

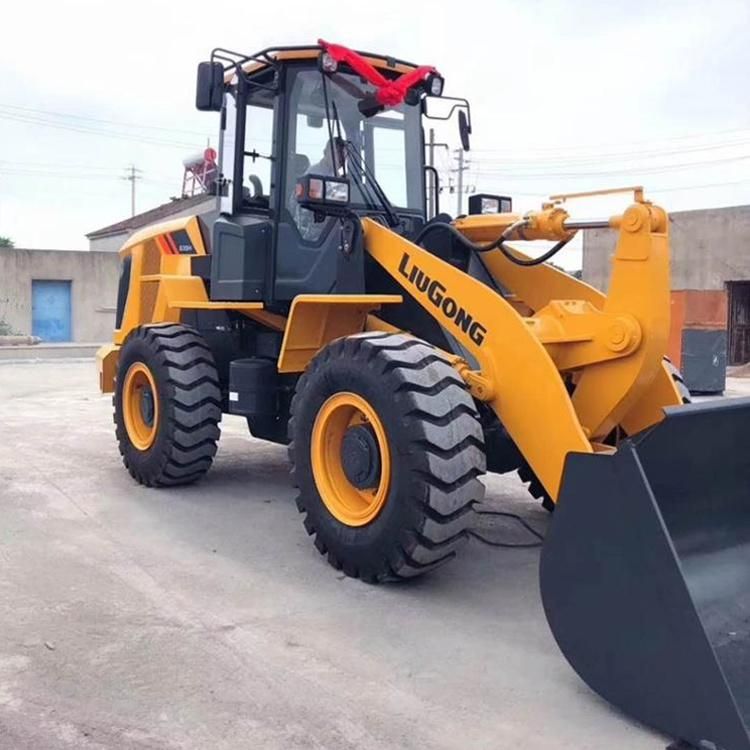

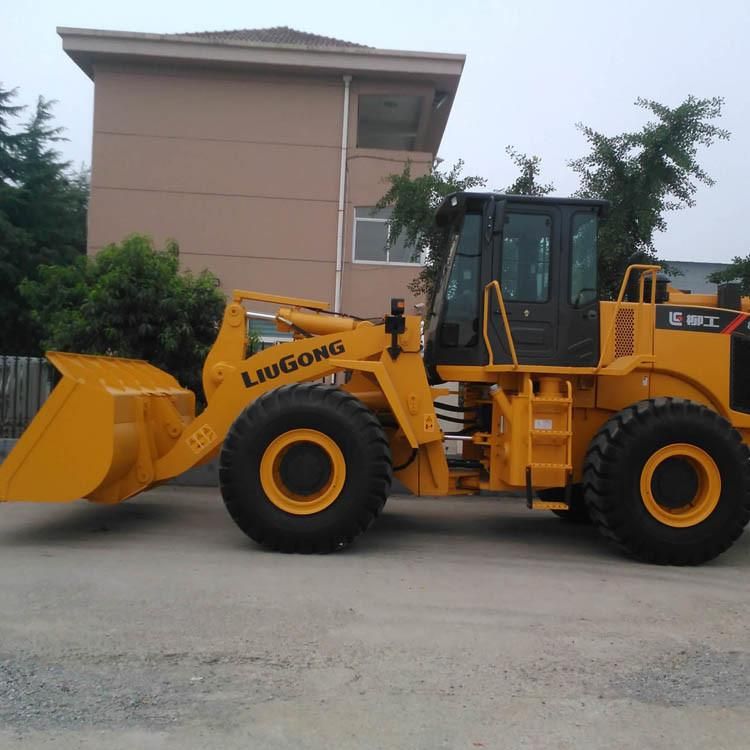

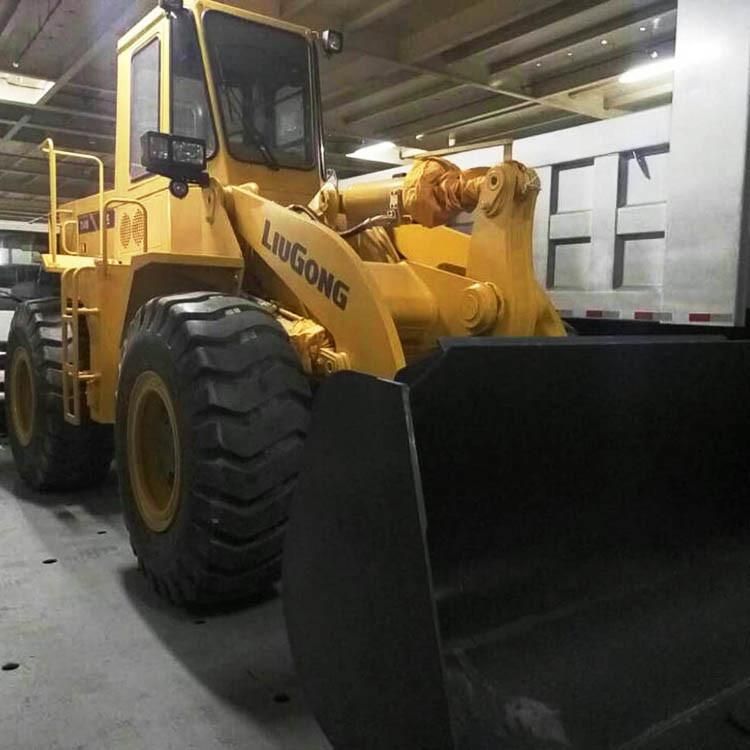

Liugong 3ton Wheel Loader Clg835 3ton 5ton Pilot Wheel Loader
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Certification：ISO
- Condition：New
- Rated Load：3-6t
- Transmission：Hydraulic
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
Base Info
- Model NO.：CLG835
- Type：Medium-sized Loader
- Bucket Capacity：3m3
- Engine：Yuchai Yc6108g
- Rated Power：160kw
- Operating Weight：16800kg
- Dump Height：2911mm
- X. Traction Force：100kn
- Transport Package：Nude
- Specification：8110*3070*3400mm
- Trademark：liugong
- Origin：Guangxi
- Production Capacity：100unit,Month
Description
Basic Info.
Model NO. CLG835 Type Medium-sized Loader Bucket Capacity 3m3 Engine Yuchai Yc6108g Rated Power 160kw Operating Weight 16800kg Dump Height 2911mm X. Traction Force 100kn Transport Package Nude Specification 8110*3070*3400mm Trademark liugong Origin Guangxi Production Capacity 100unit/MonthProduct Description
China wheel loader CLG835H kaiwei wheel loader
1.Rated load: 5000kg
2.Bucket capacity: 3m3
3.Engine: Yuchai
Specifications for Your Reference
Engine Model | Yuchai YC6108G |
Rated power | 160KW |
Bucket capacity | 3 M3 |
Rated load | 5000kg |
Operating weight | 16800kg |
Dump height | 2911mm |
Max. Digging force | 93.5KN |
Max. Traction force | 100KN |
Min. Operating radius (outside bucket) | 5676mm |
Min. Operating radius (outside the machine) | 5140mm |
Hydraulic torque converter | Double turbine |
Tune pressure with hydraulic system safety valve | 16Mpa |
Steering Angle (Left/Right) | 40 degree |
Fuel tank capacity | 150L |
Cooling system | 35L |
Crankcase of diesel engine | 15L |
Torque converter & gear box system | 45L |
Main transmission (front axle/rear axle) | 18L/18L |
Hydraulic system capacity | 150L |
Tires | 17.5-25 |
Dimension(mm) L*W*H | 6760*2500*3300 |
