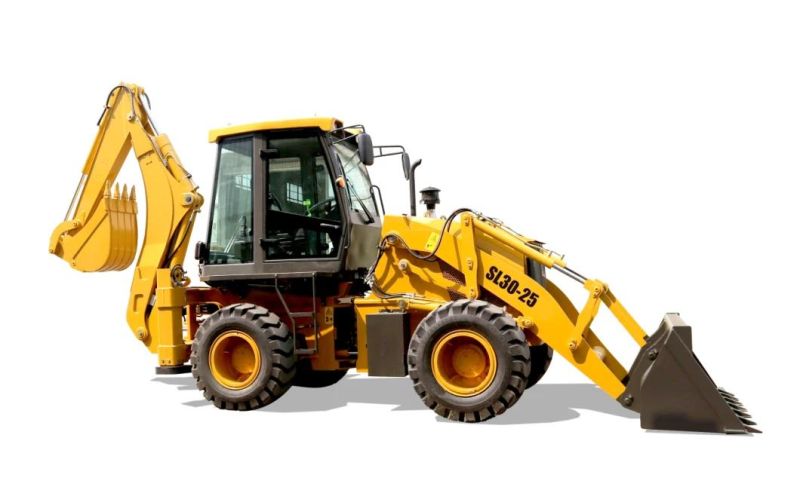

Shantui Towable Mini Backhoe Loader (SL30-25) with Cheap Price
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：Available
- Warranty：2 Years
- Certification：CE
- Condition：New
- Rated Load：6-9t
- Transmission：Hydraulic
Base Info
- Model NO.：SL30-25
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
- Type：Small Loader
- Transport Package：Nude
- Specification：As below
- Trademark：Shantui
- Origin：Hunan
- HS Code：842951000
- Production Capacity：1000 Pieces,Month
Description
Basic Info.
Model NO. SL30-25 Load and Unload Mode Front Discharge Walking Mode Wheeled Type Small Loader Transport Package Nude Specification As below Trademark Shantui Origin Hunan HS Code 842951000 Production Capacity 1000 Pieces/MonthProduct Description
Various brands and prices available, just send me inquiry, product list will be offered!!!Shantui Towable Mini Backhoe Loader (SL30-25) with Cheap PriceHigh-end system configuration
The high-performance turbocharged engine with mechanical pump features high power, low fuel consumption, and powerful fuel adaptability.
The upper frame adopts the modal analysis technology to realize high firmness and durability while effectively reducing the vibration and noise of machine.
The design of structural parts is comprehensive optimized and the critical load-carrying locations are reinforced to resist against severe working conditions.
The baseplates, side plates, and reinforcement plates of bucket are made of high-strength wear-resistant material to improve the durability of bucket.
The colors of the all-injection-molded interior trim parts are effectively matched as per ergonomics to mitigate the operator's visual fatigue.
The cab in high-strength irregular-shaped tubular framework structure features broad forward and backward visions and high working safety and is installed with fire extinguisher, escape hammer, and seat belt.
The high-power A/C system outputs pleasant airflow in three-dimensional manner. The excellent shock-absorbing and noise-reduction performance can realize a perfect driving/riding comfort.
| Product name | SL30-25 |
| Overall Operating Weight | 7600KG |
| L*W*H | 5910X 2268 X 3760 |
| Wheel base | 2250mm |
| Min. Ground Clearance | 300mm |
| Bucket Capacity | 1.0m3 |
| Breakout Force | 25KN |
| Loading Lifting Capacity | 2500KG |
| Bucket Dumping Height | 2795mm |
| Bucket Dumping Distance | 1048mm |
| Digging Depth | 52mm |
| Backhoe Capacity | 0.1-0.4 m3 |
| Max. Digging Depth | 4080-4500mm |
| Swing Angle of Excavator Grab | 190o |
| Max. Pulling Force | 39KN |
| Engine | |
| Model | YC4A105Z-T20 |
| Type | turbocharging four-stroke |
| Cylinder-Inside Diameter*Stroke | 4-105 |
| Rated Power | 75KW/100HP |
| Rated Speed | 2400r/min |
| Min. Fuel Consumption | 235g/kw.h |
| Max.Torque | 310NM |
| Displacement | 4.3L |
| Steering System | |
| Model of Steering Device | BZZ5-250 |
| Steering Angle | ±36 o |
| Min. turning radius | 5018mm |
| Pressure of the system | 12Mpa |
| Axle | |
| Manufacturer | Feicheng Axles |
| Main Transmission Type | single reduction |
| Torque Converter | |
| Model | YJ280 |
| Type | Single-stage Three Elements |
| Max. Efficiency | 0.844 |
| Inlet Pressure | 0.4Mpa-0.55 Mpa |
| Outlet Pressure | 1.2Mpa-1.5 Mpa |
| Cooling Method | Oil-cooling Pressure Circulation |
| Gearbox | |
| Type | Fixed Shaft Power Transmission |
| Oil Pressure of Clutch | 1373Kpa-1569 Kpa |
| Gears | Two Gears Ahead, Two Gears Astern |
| Max.Speed | |
| Tyre | |
| Model | 16/70-20 |
| Pressure of Front wheel | 0.22 Mpa |
| Pressure of Back Wheel | 0.20 Mpa |
| Brake System | |
| Service Brake | air over hydraulic disc on 4 wheels |
| Emergency Brake | manual parking brake |
| Hydraulic System | |
| Digging Power of Excavator Grab | 46KN |
| Digging Power of Dipper | 31KN |
| Bucket Lifting Time | 6.8S |
| Bucket Lowering Time | 2.5S |
| Bucket Discharge Time | 1.2S |
Construction Case Picture
