• Model NO.：SE215
• Drive Type：Electric Drive
• Bucket Capacity：0.1~0.5m³
• Size：Small-Scale
• Certification：CE
• Condition：New
• Transport Package：Nude
• Specification：As below
• Trademark：Shantui
• Origin：Hunan
• HS Code：8429521200
• Production Capacity：1000 Pieces,Month

Basic Info.

Model NO. SE215 Drive Type Electric Drive Bucket Capacity 0.1~0.5m³ Size Small-Scale Certification CE Condition New Transport Package Nude Specification As below Trademark Shantui Origin Hunan HS Code 8429521200 Production Capacity 1000 Pieces/Month

Product Description

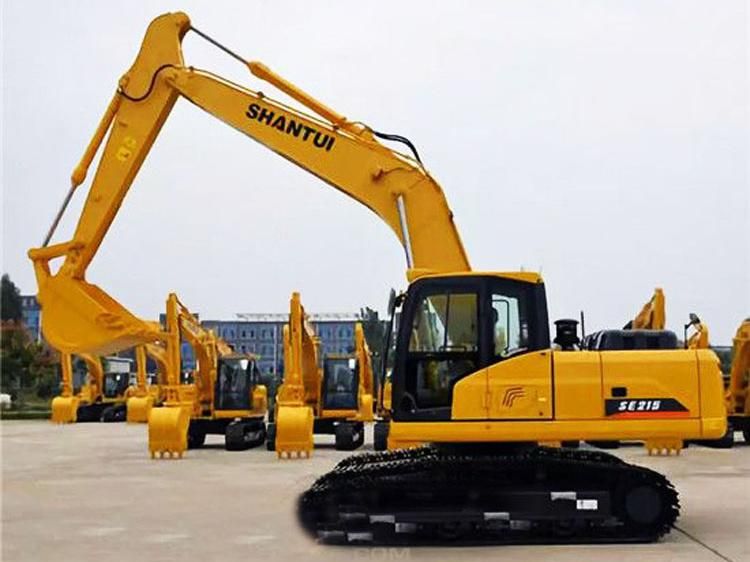

Construction Machinery SHANTUI (SE215) Crawler Excavator with Bucket High-end system configuration

The high-adaptability turbocharged engine features high torque, high altitude adaptability, and high fuel adaptability.

The high-end reliable hydraulic system configuration reduces the energy loss and realizes high efficiency and energy-saving and good motion coordination.

Enhanced working device

The design of structural parts is comprehensive optimized and the critical load-carrying locations are reinforced to resist against severe working conditions.

The baseplates, side plates, and reinforcement plates of bucket are made of high-strength wear-resistant material to improve the durability of bucket.

The booms, bucket arms, and buckets of diversified specifications can be combined easily to adapt to diversified working conditions.

Drive sprockets, idlers, track rollers, carrier rollers, and tracks

30 years of R&D and manufacturing experiences of drive sprockets, idlers, track rollers, carrier rollers, and tracks and industry's leading technologies

The mature and high-quality forging and heat treatment processes guarantee stable and reliable quality.



Optional equipment of machine

Refueling pump

Cab warning lamp

Cab ceiling lamp

Cab overhead protective net

Cab front upper protective net

Cab front lower protective net

Rubber track


Comparative item	SE215 (Standard version)
Overall dimensions
Overall length (mm)	9625
Ground length (During transport) (mm)	4915
Overall height (To the top of boom) (mm)	3075
Overall width (mm)	2800
Overall height (To top of cab) (mm)	3055
Ground clearance of counterweight (mm)	1075
Minimum ground clearance (mm)	470
Tail turning radius (mm)	2925
Track length (mm)	4140
Track gauge (mm)	2200
Track width (mm)	2800
Standard track shoe width (mm)	600
Turntable width (mm)	2725
Distance from slewing center to tail (mm)	2920
Working range
Maximum digging height (mm)	10095
Maximum dumping height (mm)	7190
Maximum digging depth (mm)	6490
Maximum vertical digging depth (mm)	5915
Maximum digging distance (mm)	9860
Maximum digging distance at ground level (mm)	9675
Working device minimum turning radius (mm)	2970
Maximum lifting height of bulldozer blade (mm)	-
Maximum digging depth of bulldozer blade (mm)	-
Engine
Model	Cummins QSB7 (China-III)
Type	6-cylinder, high pressure common rail, and water-cooled and turbocharged
Displacement (L)	6.7
Rated power (kW/rpm)	124/2050
Hydraulic system
Type of hydraulic pump	Variable displacement duplex plunger pump
Rated working flow (L/min)	2x213
Bucket
Bucket capacity (m³)	0.9
Swing system
Maximum swing speed (r/min)	11
Brake type	Mechanically applied and pressure released
Digging force
Bucket arm digging force (KN)	135/146
Bucket digging force (KN)	99/107
Operating weight and ground pressure
Operating weight (kg)	20800
Ground pressure (kPa)	47.5
Traveling system
Traveling motor	Axial variable displacement plunger motor
Traveling speed (km/h)	3.15/5.15
Traction force (KN)	214
Gradeability	70%(35°)
Tank capacity
Fuel tank capacity (L)	330
Cooling system (L)	28
Engine oil capacity (L)	22
Hydraulic oil tank/system capacity (L)	270/400

 C

Construction Case Picture
