• Model NO.：SR14
• Travel Speed：40cm,s
• Centrifugal Force：40KN
• Certification：ISO 9001:2000
• Condition：New
• Operating Weight：14000kg
• Exciting Force：310,200kn
• Compacting Width：2130mm
• Vibration Frequency：30,35Hz
• Grade Ability：45%
• Engine Model：Weichai Wp6g140e22
• Engine Power：105kw,2200kw,Rpm
• Fuel Tank：240L
• Transport Package：Nude Package
• Specification：6140*2280*3100mm
• Origin：China
• HS Code：84294019
• Production Capacity：10000

Basic Info.

Model NO. SR14 Travel Speed 40cm/s Centrifugal Force 40KN Certification ISO 9001:2000 Condition New Operating Weight 14000kg Exciting Force 310/200kn Compacting Width 2130mm Vibration Frequency 30/35Hz Grade Ability 45% Engine Model Weichai Wp6g140e22 Engine Power 105kw/2200kw/Rpm Fuel Tank 240L Transport Package Nude Package Specification 6140*2280*3100mm Origin China HS Code 84294019 Production Capacity 10000

Product Description

SHANTUI SR14 14 ton Single Steel Drum Road Roller

SR14 full-hydraulic single-drum vibratory road roller adopts the full-hydraulic drive, articulated frame, and stepless speed change and features high compacting performance to provide the user with outstanding reliability and durability. This product is suitable for the high density compacting of various clayed and non-clayed materials.

Parameter:

Parameter name	SR14
Performance parameters
Operating weight (Kg)	14000
Exciting force (KN)	310/200
Vibration frequency (Hz)	30/35
Nominal amplitude (mm)	1.65/0.70
Gradeability (%)	45
Engine
Engine model	Weichai WP6G140E22
Rated power/rated speed (kW/rpm)	105kw/2200rpm
Overall dimensions
Overall dimensions of machine (mm)	6140*2280*3100
Driving performance
Forward speed (km/h)	F1: 0-5.5, F2: 0-10
Reversing speed (km/h)	R1: 0-5.5, R2: 0-10
Chassis System
Wheelbase (mm)	3100
Tank capacity
Fuel tank (L)	240
Working device
Compacting width(mm)	2130

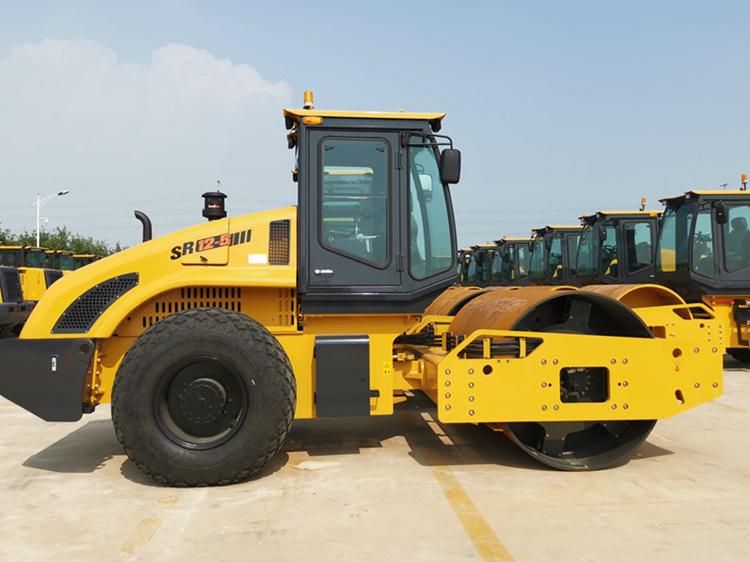

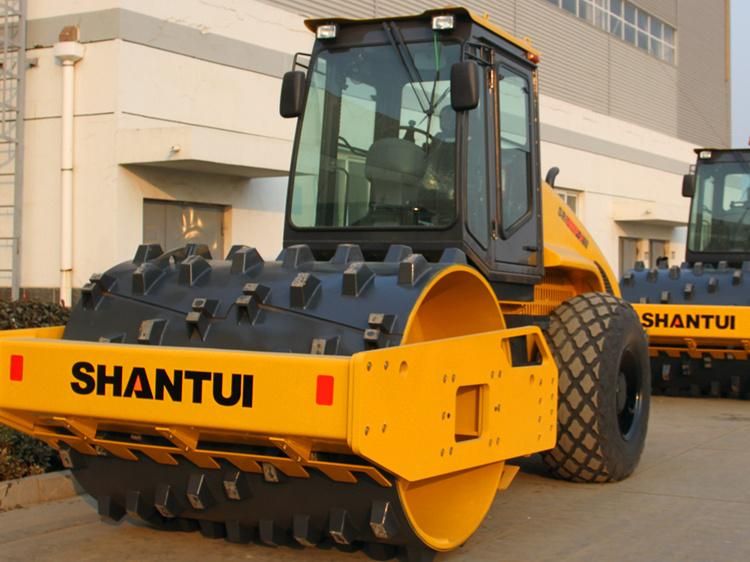

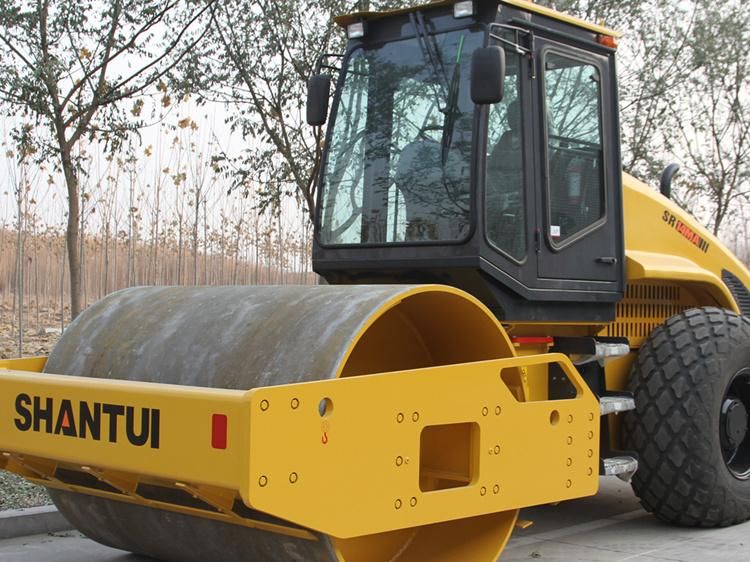

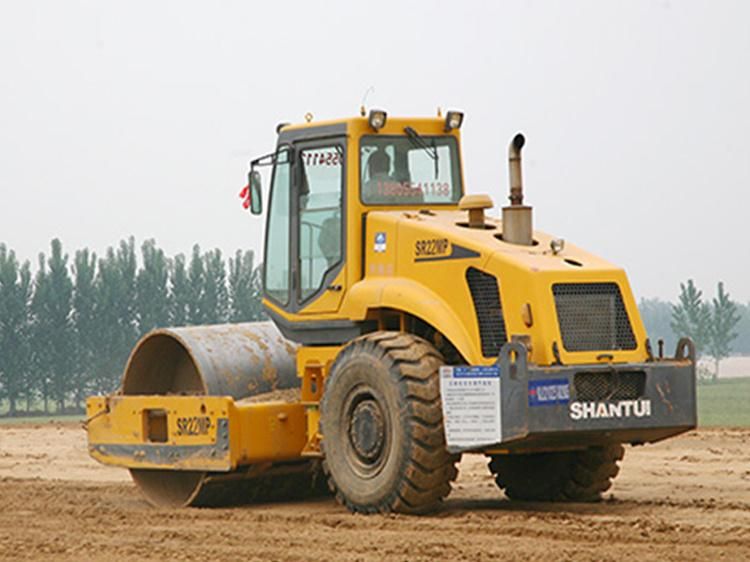

Pictures:
