• Model NO.：ZT821-LG5
• Type：Large Loader
• Operating Weight：21000kg
• Tooth Number：64
• Engine Power：162kw
• Drive Type：Hydraulic Doubule Change, Power Shift
• Engine：Weichai
• Size of Steel Weel：1600*1290*900mm
• Color：Yellow, Gray
• Rated Speed：2200rpm
• Grond Clearance：280mm
• Shovel Height：1880mm
• Shovel Width：3350mm
• Lifting Height：980mm
• Wheel Base：2750mm
• Transport Package：Nude
• Specification：7000*3050*3530mm
• Trademark：ZTMACHINE
• Origin：China
• HS Code：842959000
• Production Capacity：30 Sets,Months

Basic Info.

Model NO. ZT821-LG5 Type Large Loader Operating Weight 21000kg Tooth Number 64 Engine Power 162kw Drive Type Hydraulic Doubule Change, Power Shift Engine Weichai Size of Steel Weel 1600*1290*900mm Color Yellow, Gray Rated Speed 2200rpm Grond Clearance 280mm Shovel Height 1880mm Shovel Width 3350mm Lifting Height 980mm Wheel Base 2750mm Transport Package Nude Specification 7000*3050*3530mm Trademark ZTMACHINE Origin China HS Code 842959000 Production Capacity 30 Sets/Months

Product Description

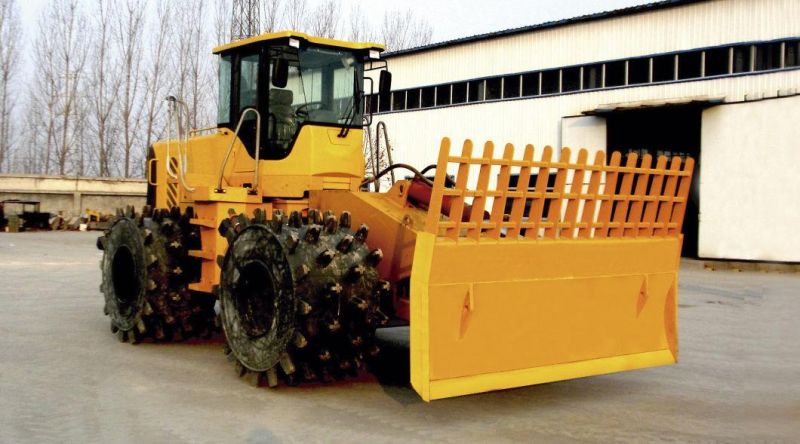

 Landfill Compactor






 The landfill compactors are essential equipments for refuse landfill site. It has the functions of spreading, pulverizing demolishing and compacting the refuse. Using this refuse compactor will help to save the land, protect the environment and extend the operating life of the refuse landfill site.





 Characteristic
  1.Water-cooled turbocharged diesel engine with the cold starting system.
2.Torque converter and power gearshift transmission are applied on four wheels.
3.The high wear life teeth are arranged specially, two scraper bars and two wire cutters on four compaction wheels will avoid the wire wrap-around and keep the wheel clean.
4.Hydraulic system is driven by a piston pump with load sensing system, provides smooth and light control, high efficiency and energy economy.
5.The crucial spots are maintained regularly by the central lubrication system. The disinfector spray device is equipped to guard against mosquito.






Reliable power system

Water-cooling engines have the power strong enough to keep the whole machine at the best working status, guaranteeing the quality and featuring the efficiency and energy-saving.

Comfortable driving environment

The full-closed cab could keep the operator away from the harsh working environment. In addition, the equipment traveling system is controlled with the single-ever handle and the equipment with the steering wheel, effectively improving the working efficiency and reducing the labor intensity.
Lifting of the shovel is controlled with the electrical handle, easy and useful. The longitudinal-adjustable and comfortable seat, left-right reversible handle,make the work more comfortable.

Optimal safety design

The special anti-wind device could prevent the trash from winding the steel wheel.
The baffles shall be easy to access to removal and installation.
The overhead steering cylinder could effectively prevent against the trash impacting.
The bottom of the compactor is completely sealed with the guard, farthest guaranteeing the cleanness of compactor.

Good maintenance performance

The shovel head is connected to the front frame by using the screw cap special for the base and the ball joint, for easy assembly and replacement after wear.



Application

Landfill Compactors are the heavy-duty compacting equipment with the large unit linear load. In addition, the lugs of the compacting wheels are formed by surfacing with the special material, making them more anti-abrasive and corrosive. Pushing, smashing and compacting of trashes are done by the dead weights of this machine.
In addition, this machine is available for filling and leveling of all kinds of bulky material, and also servers as the filling compactor and the high-speed compactor, satisfying the requirements of the landfill in the big and medium cities.

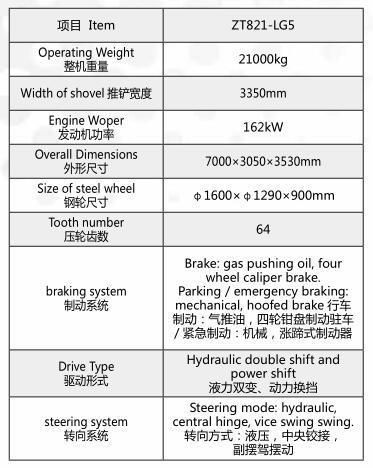

Specification



Packing

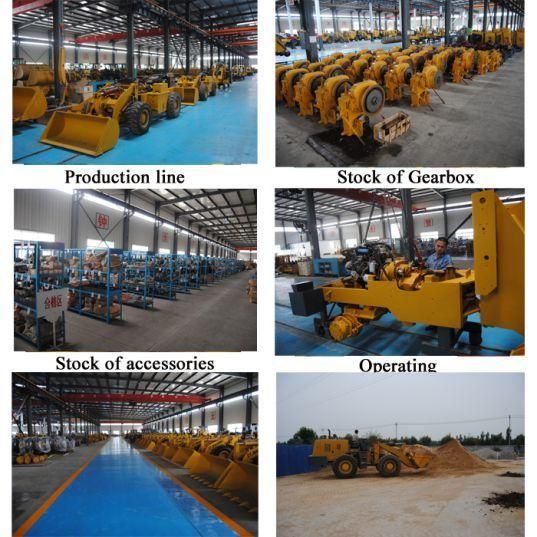

Company






Our Service
  1. OEM order accepted: Customer's brand, Color etc.
2. Spare parts in stock.
3. Factory visiting, third party inspection etc. 4. We will reply for your inquiry in 24 hours.
5. Purchasing agent for related machines.

Contact:


FAQ

Q1. Are you a manufacturer or trader?
A: We are a manufacturer of construction machines which specilized in producing and exporting loaders including backhoe loaders ,wheel loaders and other construction Machinery .

Q2. What is your terms of payment?
A: T / T 30% as deposit in advance and 70% will be paid against copy of B/L.

Q3. How about your delivery time?
A: Generally, it will take 15 days after deposite payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have some stock.

Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q5. What is your warranty policy?
A: We can supply 6 months or 2000h warranty for our machines and parts for free within warranty.
