• Model NO.：GMD-B
• Width：50mm
• Pitch Length：20mm
• Links：46
• Weight：0.5kg
• Warranty：12months
• Transport Package：Nude Packing or Pallets
• Specification：50*20*46
• Trademark：puyi
• Origin：Shanghai, China
• HS Code：8431499900
• Production Capacity：3000PCS,Months

Basic Info.

Model NO. GMD-B Width 50mm Pitch Length 20mm Links 46 Weight 0.5kg Warranty 12months Transport Package Nude Packing or Pallets Specification 50*20*46 Trademark puyi Origin Shanghai, China HS Code 8431499900 Production Capacity 3000PCS/Months

Product Description

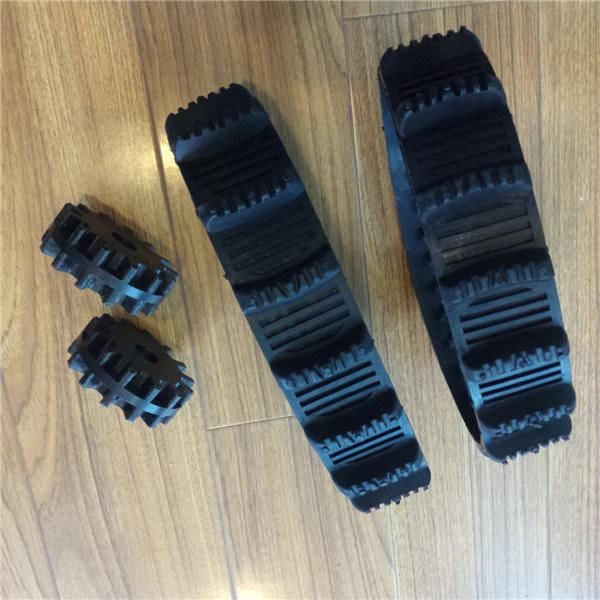

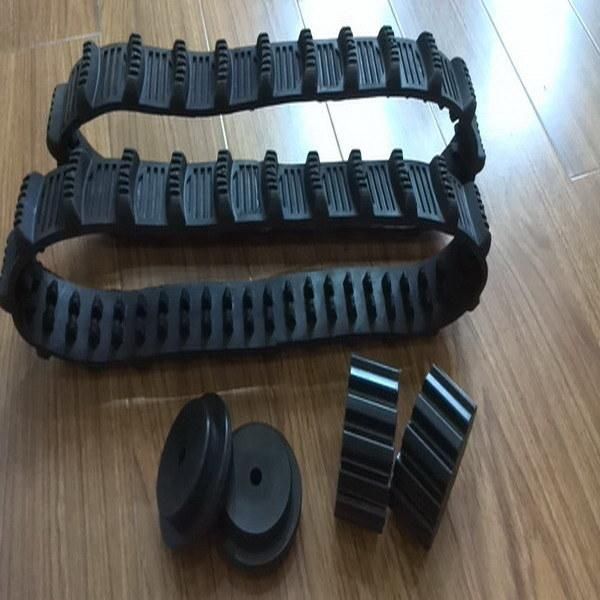

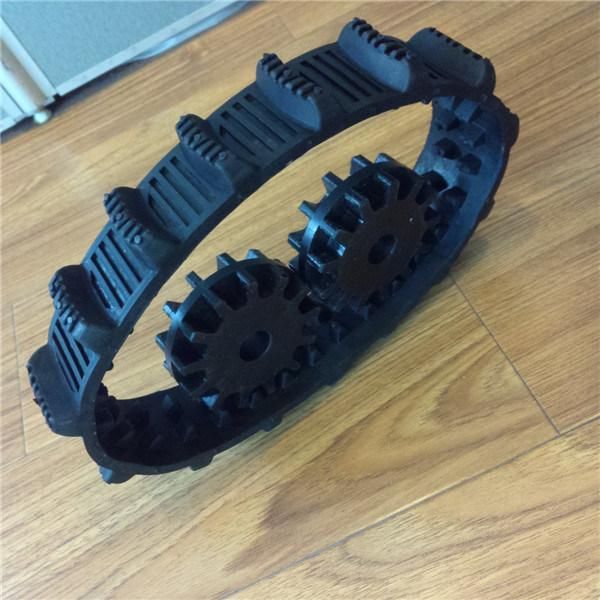

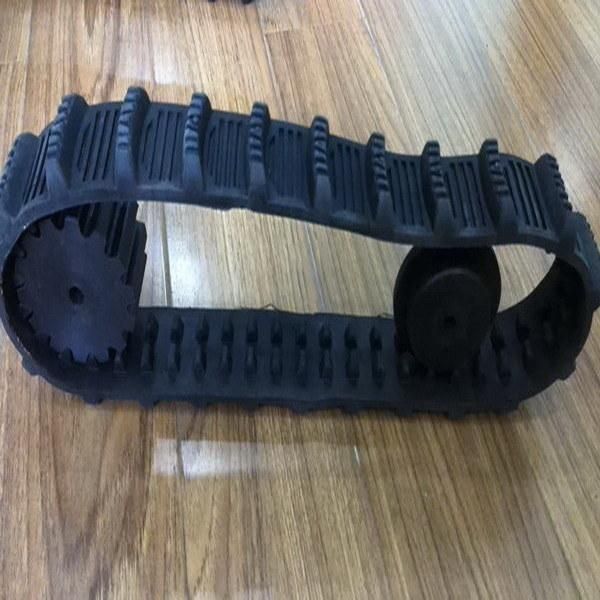

Small Rubber Track for Robotic Machine (50*20*46)


Size:Width50*Pitch20*Links46
1. Small order accept
2. Fast delivery
3. Advanced technique


We are a professional supplier for rubber track. They could be used on Wheelchair,Agriculture machine such as Rice harvester, Wheat harvester,Combine harvester machine; Construction machine like Excavator, Mini-excavator, Bulldozer, Dumper, Crawler loader, Crawler crane, Carrier vehicle,Swamp Truck, Amphibious Tank,Paver.Othe vehicle like Snowblower,Snowmobile,Off-road jeep, Crawler Robot etc.
1. Type of rubber tracks:
(1) Bolt on type
(2) Bolt on type with steel bottom
(3) Chain on type
(4) Clip on type
(5) Pavers rubber pads

2. The feature of rubber tracks:
(1). Less round damage
Rubber tracks cause less damage to roads than steel tracks, and less rutting of soft ground than either steel tracks of wheel products.
(2). Low noise
A benefit to equipment operating in congested areas, rubber track products less noise than steel tracks.
(3). High speed
Rubber track permit machines to travel at a higher speed than steel tracks.
(4). Less vibration
Rubber tracks insulate machine and operator from vibration, extending the machine's lifetime and lowering operate fatigue.
(5). Low ground pressure
The ground pressure of rubber tracks equipped machinery can be fairly low, about 0.14-2.30 kg/ CMM, a major reason for its use on the wet and soft terrain.
(6). Superior traction
The added traction of rubber, track vehicles permits them to pull twice the load of wheel vehicles of the sane weight.

Model	Size	Weight(kg)/Link	Model	Size	Weight(kg)/Link	Model	Size	Weight(kg)/Link
HS-32	32*12.7	0.0031	HL-105	105*42	0.0572	YT-200	200*52.5	0.3935
BK-B	40*9.3	0.0084	CX-118	118*61	0.1625	SQ-A	220*53.5	0.2062
HL-40	40*44	0.0268	QD-118	118*60	0.122	JH-220	220*85	0.9
PY-40	45*31.75	0.0172	SJ-120	120*61	0.1477	JA-220	220*50.3	0.4
PY-40	40*31.3	0.0163	RN-120	120*60	0.125	DY-250	250*50.3	0.3507
LG-48	48*10	0.0042	WG-123	123*38	0.0703	LP-250	250*50.3	0.523
DG-50	50*22.225	0.03	GF-A	125*19	0.0243	CQ-255	255*72	0.4758
GF-B	50*19	0.0093	DN-A	130*18.5	0.0289	FP-250	250*80	0.4897
GMD-B	50*20	0.0109	WJ-130	130*40	0.1088	WD-255	255*73	0.4549
HGD-52	52*58	0.0474	TH-136	136*45	0.0868	SQ-B	255*72	0.45
JTDX-60	60*15.2	0.012	WGJ-130	130*65	0.4348	CF-280	280*60	1.9
XL-60	60*13.9	0.59	HBC-140	140*30	0.0334	LEVE-280	280*87	0.4839
LWM-60	60*22.225	0.023	SL-140	140*80	0.2778	KD-320	320*87	2.1607
JQ-B	60*12.7	0.0182	JT-140	140*20	0.0332	QATV-320	320*87	0.4688
BF-B	60*15	0.0073	PW-148	148*60	0.2804	WD-320	320*72
BK-A	60*13.01	0.0178	ZY-148	148*60	0.4445	TG-320	320*87	0.9412
DN-B	60*18.5	0.0088	XF-A	150*59	0.2051	TJ-360A	360*87	0.8285
JT-60	60*20	0.0125	NG-150	150*65	0.3095	NY-380	380*65	0.7854
JQ-A	76*12.7	0.0158	SF-150	150*72	0.3781	YQZG-400	400*73
BF-A	80*15	0.0112	XF-B	150*59	0.2178	QATV-400	400*87	1.25
HL-80	80*44	0.055	LEVE-160	160*60	0.8065	TK-560	560*105	3
SMX-70	70*40	0.0636	YSD-165	165*64.5	0.3612	DNS-580	580*60.5	0.675
CHJ-80	80*40.2	0.0817	WJ-165	165*65.5	0.2989	XLG-620	620*100
TH-85	85*59.4	0.08	WHKD-170	170*64	0.2419	BV206	620*90.6	3.125
THG-85	85*59.4	0.1072	LEVE-180	180*65	0.3571	WZY-800	800*90.6
GMD-A	100*20	0.0242	YN-180	180*72	0.4729	KCM-500	500*110	2.9836
BD-B	100*40	0.0454	HC-200	200*60.2	0.3
BD-A	100*40	0.08	HS-200	200*72	0.75



Width*Pitch length(mm)	Number of Links	Width*Pitch length(mm)	Number of Links	Width*Pitch length(mm)	Number of Links
130*72	28-53	300*52.5K	72-84	400*72.5KW	68-92
150*60	28-49	300*52.5KW	72-92	400*74	68-76
150*72	29-40	KB300*52.5	72-92	400*75.5K	74
170*60	30-40	KB300*52.5N	72-98	B400*86	52-55
180*60	30-40	JD300*52.5N	72-98	400*90	42-56
180*72	30-58	300*53K	80-84	Y400*142	36-37
180*72K	30-37	300*55	70-86	400*144	36-41
B180*72K	34-51	300*55.5K	76-82	Y400*144K	36-41
B180*72A	30-51	300*71K	72-55	420*100	50-58
H180*72	30-50	300*109N	25-42	450*71	76-88
190*60	30-40	K300*109	37-41	DW450*71	76-88
190*72	34-39	300*109WK	35-42	450*73.5	76-84
200*72	34-47	B300*84	78-52	450*76	80-84
200-*72K	37-47	T300*86K	48-52	450*81N	72-80
230*48	60-84	320*52.5	72-98	450*81W	72-78
230*48K	60-84	B320*52.5	68-98	KB450*81.5	72-80
230*72	42-56	320*54	70-84	K450*83.5	72-74
230*72K	42-56	B320*86	49-52	B450*84	53-56
230*96	30-48	320*90	52-56	B450*86	52-55
230*101	30-36	320*100	38-54	450*90	58-76
250*47K	84	320*100W	37-65	KU450*90	58-76
250*48.5K	80-88	Y320*106K	39-43	T450*100K	48-65
250*52.5K	72-78	350*52.5	70-92	K450*163	38
250*72	47-57	350*54.5K	80-86	485*92W	74
B250*72	34-60	B350*55K	77-98	500*90	76-82
B250*72B	42-58	350*56	80-86	500-92	72-84
E250*72	37-58	350*75.5K	74	500*92W	78-84
250*96	35-38	350*90	42-56	500*100	71
250*109	35-38	350*100	46-60	K500*146	35
260*55.5K	74-80	350*108	40-46	600*100	76-80
Y260*96	38-41	350*109	41-44	600*125	56-64
260*109	35-39	Y370*107K	39-41	700*100	80-98
280*72	45-64	400*72.5N	70-80	750*150	66
Y280*106K	35-42	400*72.5W	68-92	800*125	80
300*52.5N	72-98	Y400*72.5K	72-74
300*52.5W	72-92	KB400*72.5K	68-76
