• Model NO.：LEC-YSB-12
• Certification：ISO9001: 2000, CE, SGS
• Condition：New
• Color：Yellow
• Pump Type：Mortar Pump , Concrete Pump
• Dynamic Brand：Electric Motor
• Dynamic Model：3-Phase
• Max. Theoretical Concrete Output：12
• Hydraulic Oil Tank Volume：165L
• Theoretical Vertical Conveying Height：80m
• Theoretical Level Transmission Distance：300m
• Max. Aggregate Particles：20mm
• Concrete Tube Conveying Diameter：100A,70A
• Hopper Volume：0.22cbm
• Transport Package：Standard Export Packing for The Cement Mortar Pump
• Specification：CE
• Trademark：LEC
• Origin：Henan, China
• Production Capacity：12m3,H

Basic Info.

Model NO. LEC-YSB-12 Certification ISO9001: 2000, CE, SGS Condition New Color Yellow Pump Type Mortar Pump , Concrete Pump Dynamic Brand Electric Motor Dynamic Model 3-Phase Max. Theoretical Concrete Output 12 Hydraulic Oil Tank Volume 165L Theoretical Vertical Conveying Height 80m Theoretical Level Transmission Distance 300m Max. Aggregate Particles 20mm Concrete Tube Conveying Diameter 100A/70A Hopper Volume 0.22cbm Transport Package Standard Export Packing for The Cement Mortar Pump Specification CE Trademark LEC Origin Henan, China Production Capacity 12m3/H

Product Description

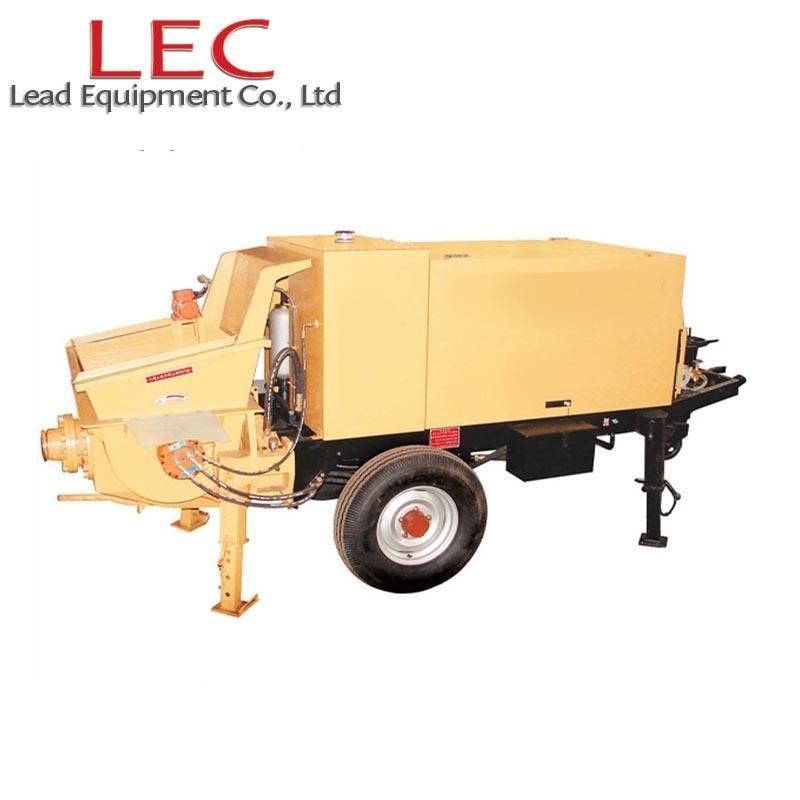

China LEC Small Stationery Concrete Delivery Pump


Introduction of our piston mortar pump Concrete Pump:
LEC mortar pump is absorbs the domestic and foreign advanced technology to develop a new type of multifunctional construction machinery. It is widely used for building mortar conveying and geotechnical engineering grouting large spray.

Advantage of our piston mortar pump Concrete Pump:
Hydraulic drive, piston regulated, with mature technology and stability
Assembled with pressure compensator on the opening, continuously regulate the output speed, with small pulsation.
Low request of labor intensity with operator
High delivery pressure, heavy flow and high efficiency.
Quite easy to operate.

Warrantee:
The warranty will be one year from the date of shipment. Any detected parts during this period caused by the quality of products will be replaced by seller free of cost (exclude wear and tear parts), improper operation and other manmade reasons are excluded.

Application of piston mortar pump Concrete Pump:
1. Construction works: Transport the mortar vertically and horizontally Spray massively.
2. Mine Tunnel, National Defense and Civil Air Defense Works: Transport the mortar and grout to protect the slope
3. Chemical Industry and Paper-Making: Transport the pulp raw material and wastes
4. Water Conservancy project: Transport the mortar to reinforce the dam
5. Other suitable place.


Model No./Concrete pump	LEC-YSB-12
Max. theoretical concrete output(m³/h)	12
Max. theoretical concrete pumping pressure(Mpa)	6
Theoretical vertical conveying height(m)	80
Theoretical level transmission distance(m)	300
Max. Aggregate particles(mm)	20
Slump(mm)	120-230
Concrete tube conveying diameter(mm)	100A/70A
Hopper volume(m³)	0.22
Dynamic brand	Electric motor
Dynamic model	3-phase asynchronous motor
Rated power(kw)	22
Hydraulic oil tank volume(L)	165
Overall dimension(L×W×H)(mm)	4000×1300×1550
Total weight(kg)	1800
