• Model NO.：LEC-CMTS15-8-22
• Name：Small Concrete Pump
• Max. Concrete Pumping Pressure：8MPa
• Concrete Conveying Pipe Diameter：76mm
• Max. Aggregate Particles：25mm
• Hydraulic Oil Tank Volume：120L
• Hose Diameter：76mm
• Overall Dimension：3380*1270*1245mm
• Total Weight(Kg)：1480
• Transport Package：Standard Export Packing for The Concrete Pump
• Specification：CE, ISO
• Trademark：LEC
• Origin：Henan, China
• Production Capacity：15cbm Per Hour

Basic Info.

Model NO. LEC-CMTS15-8-22 Name Small Concrete Pump Max. Concrete Pumping Pressure 8MPa Concrete Conveying Pipe Diameter 76mm Max. Aggregate Particles 25mm Hydraulic Oil Tank Volume 120L Hose Diameter 76mm Overall Dimension 3380*1270*1245mm Total Weight(Kg) 1480 Transport Package Standard Export Packing for The Concrete Pump Specification CE, ISO Trademark LEC Origin Henan, China Production Capacity 15cbm Per Hour

Product Description

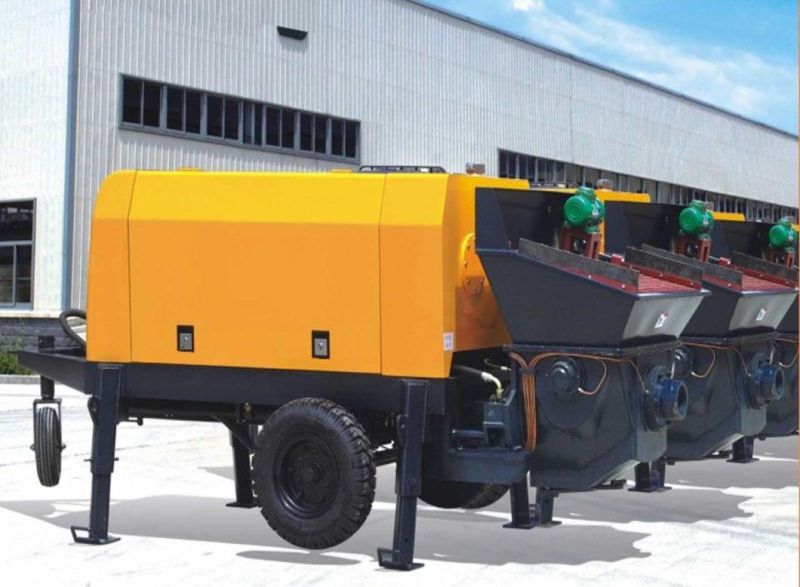

High capacity small electric concrete pump for sale

Brief introduction of Small Concrete Pump:

THE PUMPING OF CONCRETE IS AN EFFICIENT METHOD OF MOVING AND PLACING CONCRETE. THIS BASIC PROCESS IS USED! N THE MANUFACTURE OF PRECAST AND TILTUP PANELS, CONCRETE FORMWORK, SLAB CONSTRUCTION, CONCRETE PAVING AND CONCRETE SPRAYING.

Application of Small Concrete Pump:
Conveying heating, heat insulation, light weight foam cement mortar.
Conveying light-weight foam cement, mortar for ground heating, heat insulation.
Conveying and injection of fireproof and heat preservation materials.
Press grouting and filling for all kinds of engineering and construction.

Feathure of Small Concrete Pump:
Use S-valve to switch the direction, for fine stone concrete conveying
Good sealing S-valve, installed with floating wear resistant ring
High-quality wear resistant alloy components for long service-life
High delivery pressure for demand of high-rise and long distance projects
Double-loop open circuit hydraulic system, ensure fast direction switching speed and high efficiency
Air cooling system, without dependence of external water supply
With re-pumping function to smooth construction of better accessibility
Automatic lubrication system for long service-life
PLC system to ensure best electrical control performance
Equipped with wired remote controller, easy to operate

For more information, please feel free to contact me.

Model No./Mortar pump	LEC-CMTS15-8-22
Max. theoretical concrete output(m ³/h)	Low pressure 13 /high pressure 7
Max. theoretical concrete pumping pressure(Mpa)	Low pressure4.2/high pressure8
Theoretical vertical conveying height(m)	110
Theoretical level transmission distance(m)	300
Max. Aggregate particles(mm)	25
Hopper volume(m³)	0.34
Filling height(mm)	950
Dynamic brand	Electric motor
Dynamic model	3-phase asynchronous motor
Rated power(kw)	22
Hydraulic oil tank volume(L)	120
Concrete tube conveying diameter(mm)	Φ76
Overall dimension(L×W×H)(mm)	3380×1270×1245
Total weight(kg)	1480
