1000kg Agriculture Farming Wheel Loader with 32kw Engine
Taian Zhengtai Construction Machinery Co., Ltd.- Certification：ISO
- Condition：New
- Rated Load：1-3t
- Transmission：Hydraulic - Mechanical
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
Base Info
- Model NO.：ZT912
- Type：Small Loader
- Standard Bucket：0.5cbm
- Unloading Distance (mm)：840mm
- Operating Weight：3200kg
- Max Dump Heigh：3500mm
- Tyre Specification：12-16.5
- Transport Package：Nude
- Specification：5480*1630*2520mm
- Trademark：ZTMACHINE
- Origin：China
- HS Code：842959000
- Production Capacity：30
Description
Basic Info.
Model NO. ZT912 Type Small Loader Standard Bucket 0.5cbm Unloading Distance (mm) 840mm Operating Weight 3200kg Max Dump Heigh 3500mm Tyre Specification 12-16.5 Transport Package Nude Specification 5480*1630*2520mm Trademark ZTMACHINE Origin China HS Code 842959000 Production Capacity 30Product Description
| Rated load weight(kg) | 1000 |
| Rated bucket capacity (m³) | 0.5 |
| machine weight(kg) | 3200 |
| Maximum Unloading height (mm) | 3500mm |
| Unloading distance (mm) | 840 |
| Discharging angle (°) | 35 |
| Max. Gradeability (°) | 30 |
| Automatic bucket flat performance | include |
| Lift time of the moving arm(s) | ≤4 |
| The time of the lifting, loading and unloading and landing,(s) | ≤9 |
| vehicle turning angle(°) | 35 |
| minimum turning radius(mm) | 4800 |
| distance between shafts(mm) | 2050 |
| Wheelbase(mm) | 1370 |
| Minimum Ground Clearance(mm) | 230 |
| machine size(mm) | 5480×1630×2520 |
| Running speed(km/h) | |
| Forward I | 0~6 |
| II | 0~18 |
| reverse I | 0~6 |
| II | 0~18 |
| engine model | Xinchai490BG |
| Engine type | Inline, water-cooled, four stroke, direct injection |
| engine power(kW) | 32 |
| rated speed(rpm) | 2300 |
| Torque converter / transmission model | YJ240/ZL10 |
| Torque converter / transmission type | Fixed shaft type hydraulic dual variable, power shift |
| transmission gear | Forward 2 , reverse 2 |
| driving axle | Isuzu aggravate axle |
| tyre model | 12-16.5 |
| working pump | CBG1045 |
| multi way-valve model | ZT-DF15 |
| Priority valve model | YXL-160 |
| steering assy model | BZZ5-315 |
| system pressure (MPa) | 16 |
| Brake system | Drum type hydraulic brake |
| Voltage (V) | 12 |
Packing & Delivery

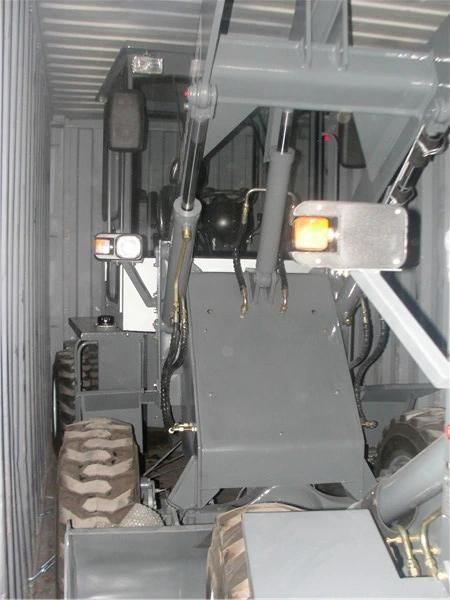

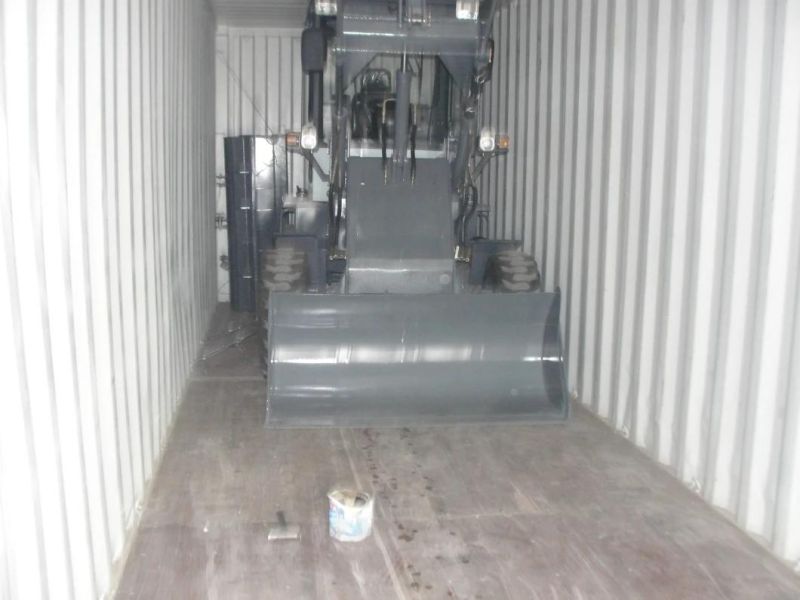

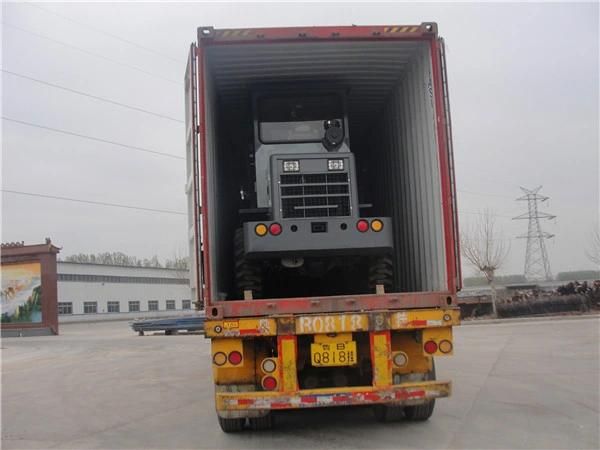

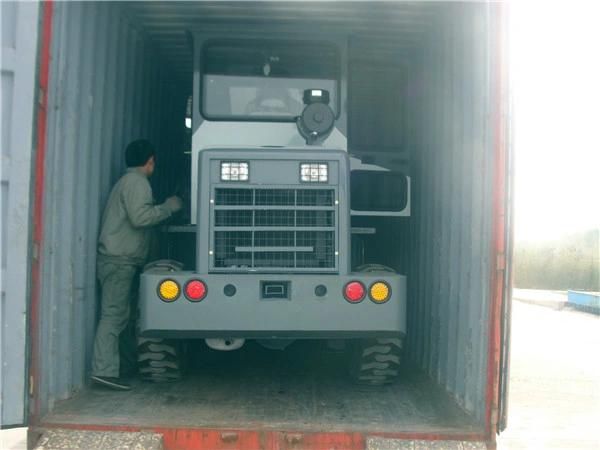

Container 40HC 2 units can be installed
1.Standard packing, the machine body is without packing, but the machine will be well fastened and fixed in the container by wire rope.2. spare parts or wearing parts will be packed in wooden box or paper carton. 3. Standard shipping method is by container.
