• Model NO.：400HD
• Length：106mm
• Height：51mm
• Pitch：135mm
• Color：Black
• Warranty：12 Months Under Normal Use
• Material：Rubber and Steel
• Export Market：Global
• Weight：3.395kgs,PC
• Transport Package：Wooden Pallet
• Specification：450HD
• Trademark：POOYERT
• Origin：Shanghai, China
• HS Code：8431499900
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. 400HD Length 106mm Height 51mm Pitch 135mm Color Black Warranty 12 Months Under Normal Use Material Rubber and Steel Export Market Global Weight 3.395kgs/PC Transport Package Wooden Pallet Specification 450HD Trademark POOYERT Origin Shanghai, China HS Code 8431499900 Production Capacity 10000PCS/Month

Product Description

450HD 17.7inch rubber pad for PC60-6~7/ PC7500/KH02/KX60     1.Protection of Road Surface
     2.Labor Cost Savings
     3.Double Roles
     4.Easy Attaching/Detaching
     5.Saving in Maintenance and Management Cost
     6.Good Safety and Stability
     7.Larger Digging and Hosting Power
     8.Noise Reduction



Size: (mm)

Model

Pitch

A(Length)

B(Height)

C(Width)

D

E

F

G

Weight

PY450HD

135

450

51

106

13

31

81.5

20

3.955

Bolt-on

Type	Pitch	h	D	d	Bolt	L	W	H
350BD	135	14	250	46	12	350	106	40
350BL	135	14	290	46	12	350	106	40
350BR	135	14	290	46	12	350	106	40
380B	135	14	300	46	12	380	1
400B	135	14	300	46	12	400	106	40
400BD	135	14	300	46	12	400	106	40
400BW	140	18	300	52	14	400	123	45
400BH	140	18	350	52	14	400	123	45
450BE	135	14	350	46	12	450	106	40
450B	154	20	350	58	14	450	124	49
450BD	154	20	350	58	14	450	124	49

Chain-on

Type	Pitch	A*B*C	Bolt	D	E	F
400C	135	400*125*52	12	94	64	46
400CA	135	400*125*52	12	99	72	43.4
400CB	135	400*125*52	12	104	80	46
400CD	135	400*125*52	12	110	80	46
400CK	140	400*125*52	12	80	80	52
400CW	140	400*125*52	12	86	86	52
450CN	140	450*125*52	12	83	83	52
450CW	140	450*125*52	12	86	86	52
450CA	135	450*125*52	12	99	72	43.4
450CB	154	450*146*52	14	90	90	46.3
450CD	154	450*146*52	14	90	90	55
450CS	154	450*146*52	14	73	73	57
450CV	135	450*146*52	13	106	76	46
450C	154	450*146*52	14	89	73	57
500CK	135	500*125*52	12	104	80	46
500CB	171.5	500*162*69	16	102.4	86.4	57
500C	171.5	500*162*69	16	108	108	60.4
500CS	171	500*162*69	16	104	88	58
500CM	190	500*178*72	20	160.4	124.4	62
500CD	190	500*178*72	20	155.6	119.6	69
600C	171.5	600*162*69	16	108	108	60.4
600CD	190	600*178*72	20	156.0	119.0	69
600CA	190	600*178*72	20	160.4	124.4	62
600CB	190	600*178*72	18	160.4	124.4	62

3. Clip-on

Type	Pitch	h	L*W*H	Weight
380HD	135/154	18	380*104*55	3.215kg
400HD	135/154	18	400*106*51	3.055kg
450HD	135/154	18	450*104*51	3.395kg
450HB	175	24	450*122*60	5.600kg
500HD	175	26	500*126*62	6.230kg
500HB	175	18	500*126*60	6.206kg
600HD	175	24	600*126*63	7.22kg
600HS	190	26	600*132*72	8.220kg
600HA	216	30	600*158*70	8.98kg
700HD	175	24	700*127*62	8.275kg
750HD
800HD	190	26	800*133*67	9.505kg

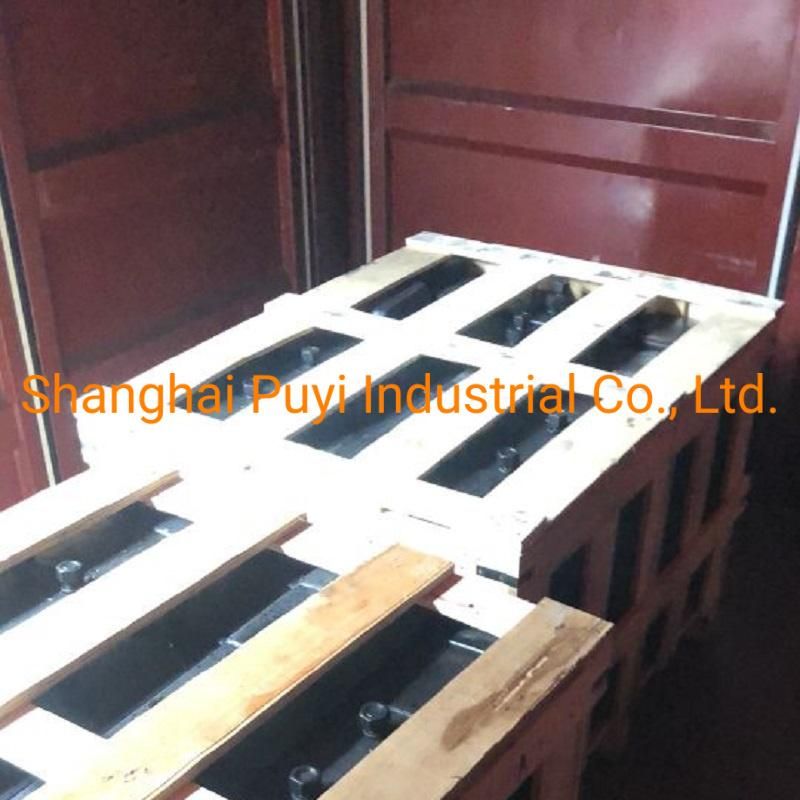

Package
