• Model NO.：swl120c
• Type：Large Loader
• Product Name：Shovel Loader
• Brand：Sinoway
• Model：Swl120f
• Engine Power：570HP
• Bucket：Rock Bucket
• Operating Weight：52 Ton
• Dump Reach：2865mm
• Application：Mining and Engineering
• Warranty：One Year
• Color：Yellow
• Transport Package：Nude
• Specification：ISO9001
• Trademark：SINOWAY
• Origin：China
• HS Code：84314990
• Production Capacity：50PCS,Month

Basic Info.

Model NO. swl120c Type Large Loader Product Name Shovel Loader Brand Sinoway Model Swl120f Engine Power 570HP Bucket Rock Bucket Operating Weight 52 Ton Dump Reach 2865mm Application Mining and Engineering Warranty One Year Color Yellow Transport Package Nude Specification ISO9001 Trademark SINOWAY Origin China HS Code 84314990 Production Capacity 50PCS/Month

Product Description

Main Highlight
Heavy duty powerful engine
At the heart of our exceptional powertrain lies the latest Cummins engine. This power house has been designed to deliver impressive acceleration and torque output, along with a serious bucket filling and lifting capability which greatly increases cycle times and earning potential.

Heavyweight Combination
Faster cycle times are made easy with the machine's power combination. The engine is teamed up with a four speed, ZF smooth shifting transmission. This combination optimizes power and fuel efficiency, day after day, increasing bucket breakout force and loading capability. To this, we've added larger, high capacity axles which make light work of the toughest terrain and intelligent hydraulics for low-engine speed performance, quick steering response and rapid boom up speeds. We put this power right in your operator's hands with simple and intuitive controls designed to get the job done faster and more effectively every cycle.

The long life of capability of lifting
Our new buckets load heavy materials easier and faster; saving you time, lowering fuel consumption and reducing damage. In tests, our new buckets increase production by14% and lower fuel consumption by 15% per hour. In addition, damage to the bucket and teeth can be greatly reduced thanks to the stronger anti-wear blade.

German ZF axle performance
Stability, traction and weight loading capability are the 3 key essentials for axles in heavy applications. The new ZF axles with limited-slip differentials excel in handling heavy loads up to 44T static and 25T dynamic in tough terrain. The intelligent, responsive power combined with excellent traction and stability give operators a real feeling of confidence on any ground - soft and shifting or hard and unforgiving.

New Z-Bar enhancements
Careful distribution of stress loads increases the Z-bar's tolerance significantly. Hinge pins and lift arm mounting plates have been strengthened, while optimized Z-Bar geometry improves bucket breakout force, operator visibility, loading stability and speed.

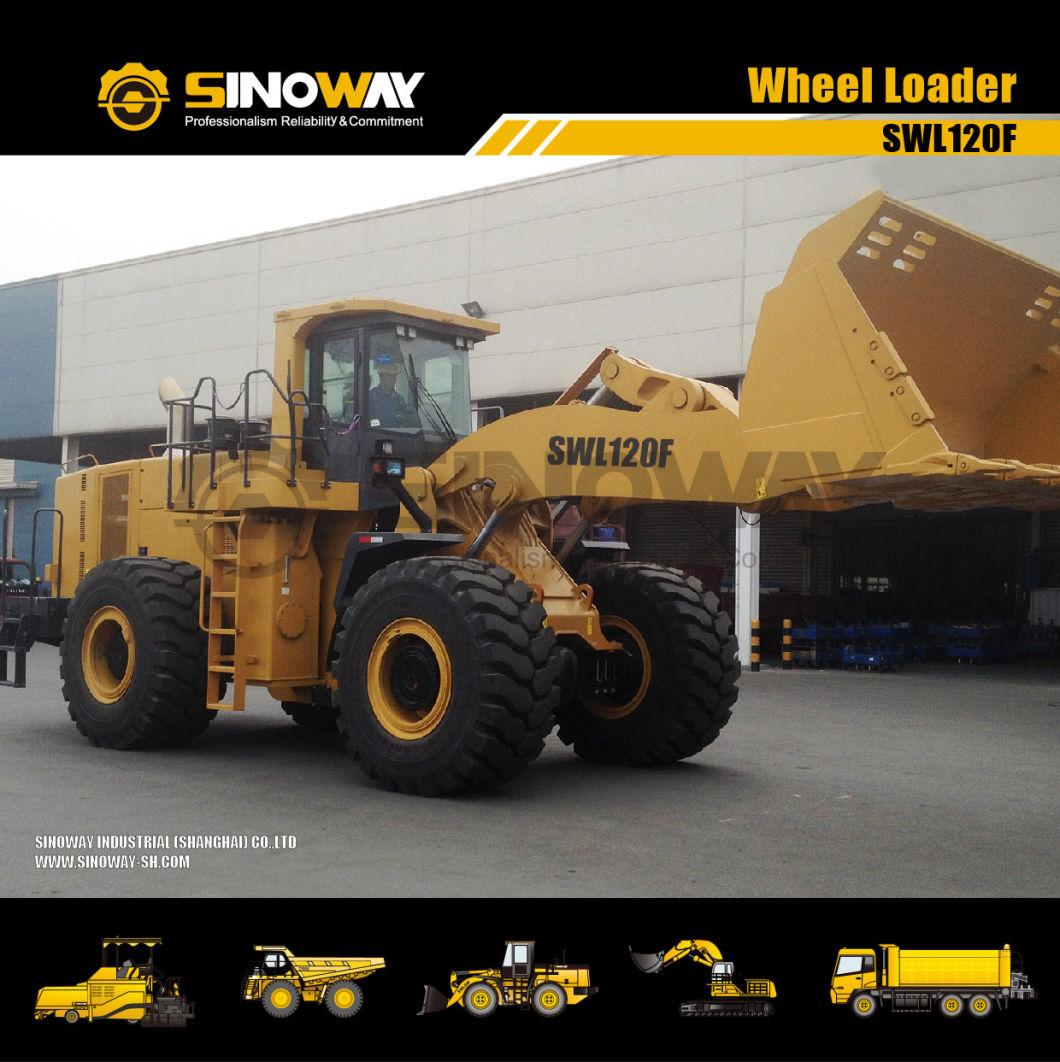

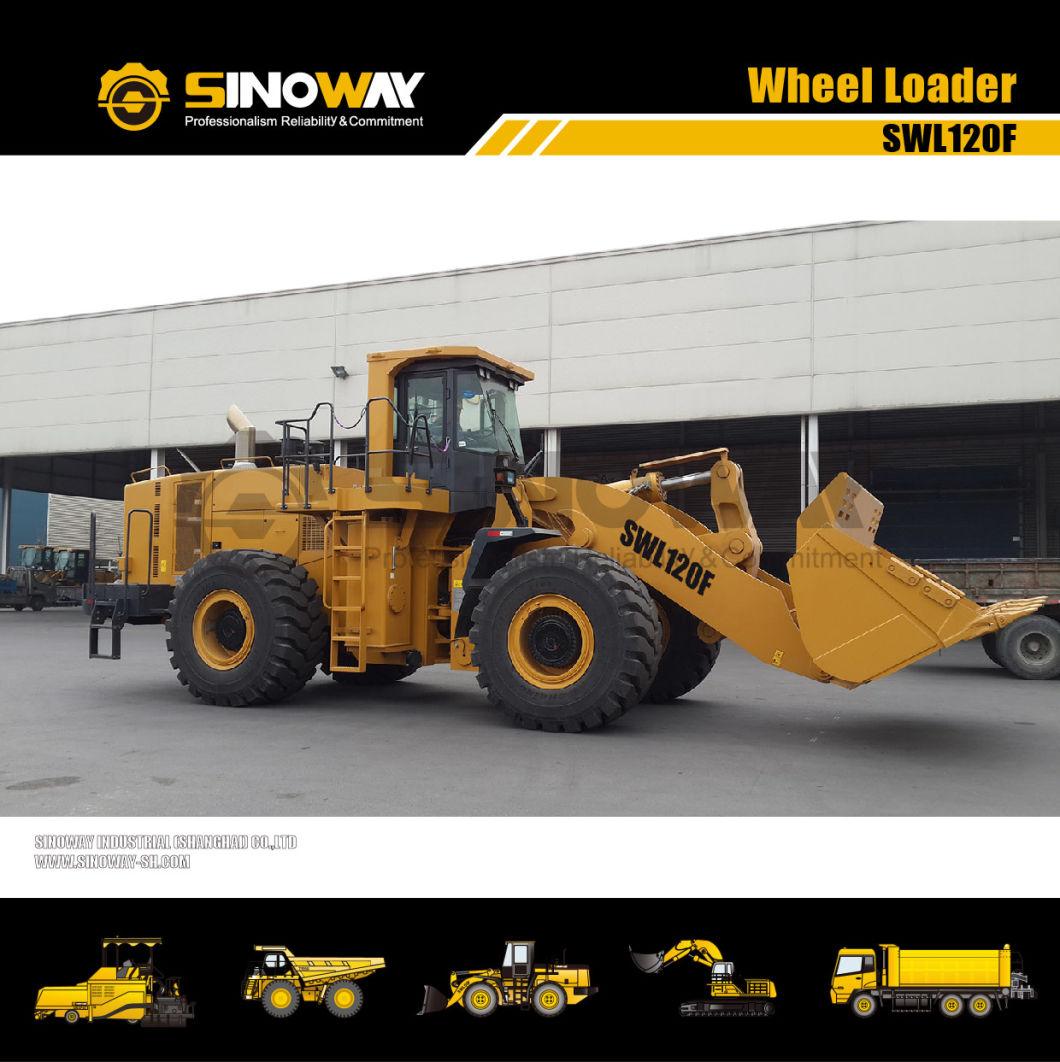

Machine Show



Specifications

Main Technical Specification
Engine make	Cummins
Rated power	418KW
Rated speed	2000rpm
Rated load	12000kg
Bucket capacity	6.5m³
Dump height	4337mm
Dump reach	2865mm
Max breakout force	398kN
Total cycle time(Lifting+lowering+dumping)	≤16.5s
Min. turning radius (outside of bucket)	7618mm
Max. traveling speed	33km/h
Operation weight	51600kg
Overall dimension	12290×3886×4545mm
Wheel base	4500mm
