• Model NO.：swb30-25f
• Type：Backhoe Loader
• Engine Power：74 Kw
• Drive Mode：4X4
• Bucket Capacity：0.2m3
• Shovel Capacity：1.0m3
• Travelling Speed：40km,H
• Warranty：One Year
• Transport Package：Naked
• Specification：ISO
• Trademark：SINOWAY
• Origin：China
• HS Code：84294990
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. swb30-25f Type Backhoe Loader Engine Power 74 Kw Drive Mode 4X4 Bucket Capacity 0.2m3 Shovel Capacity 1.0m3 Travelling Speed 40km/H Warranty One Year Transport Package Naked Specification ISO Trademark SINOWAY Origin China HS Code 84294990 Production Capacity 100 PCS/Month

Product Description

Product Description

* The highest breakout force on the loading end is leading the industry by 15%~ 20% compared with like models. The advanced structure and hinge points on the digging end and the industry's largest rotating angle of the bucket ensure strong soil holding capacity.
* The high strength structural design features high operation efficiency, with the breakout force up to 63kN.
* The design optimized and industry leading 8-link working device features good levelness of bucket and rapid operations.
* The ultra-high discharge height (2770mm) and ultra-high breakout force (66kN) lead the like products.
* The 360° panoramic view luxury cab with air conditioning system features large space, good sound and heat insulation, and good shock absorption. With openable side windows and rear window, the cab realizes broader visual field and comfortable operations.

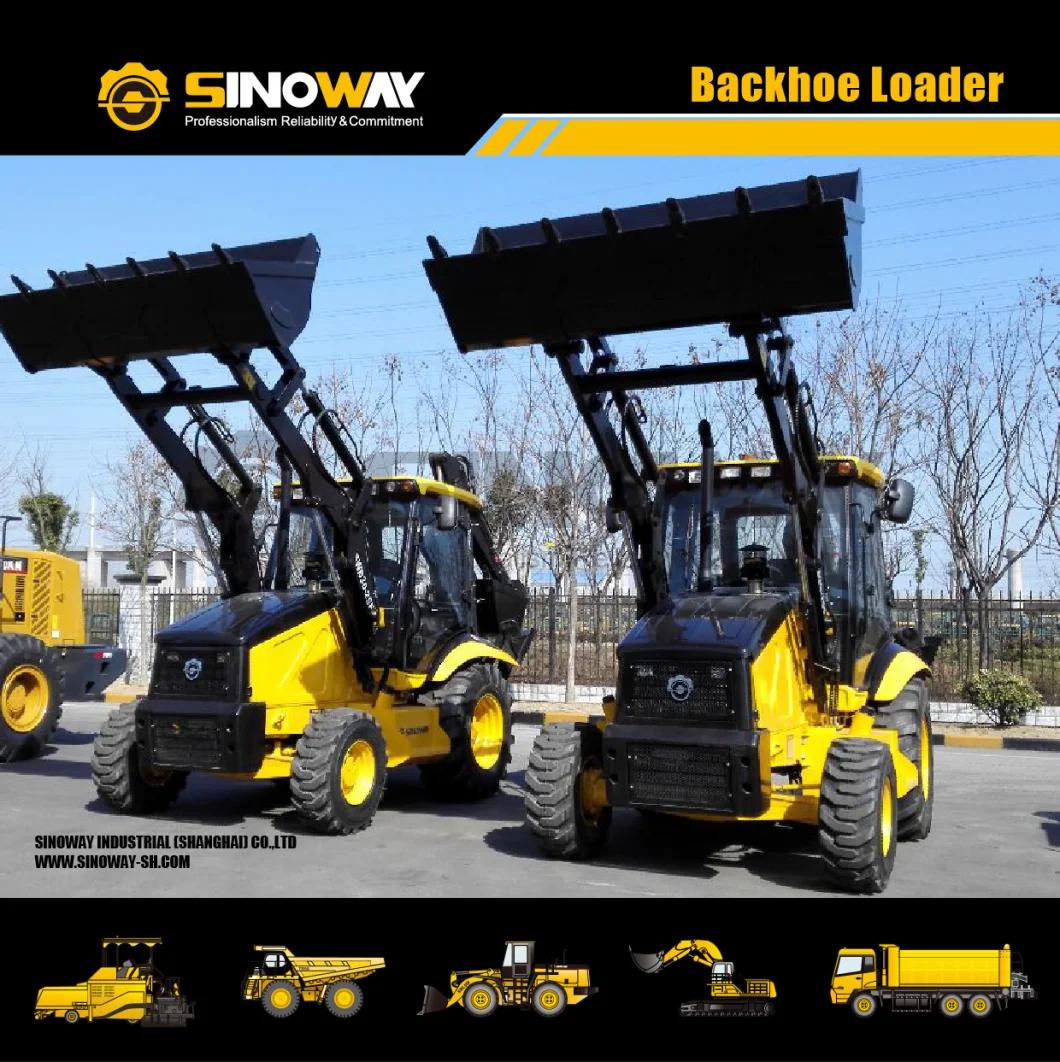

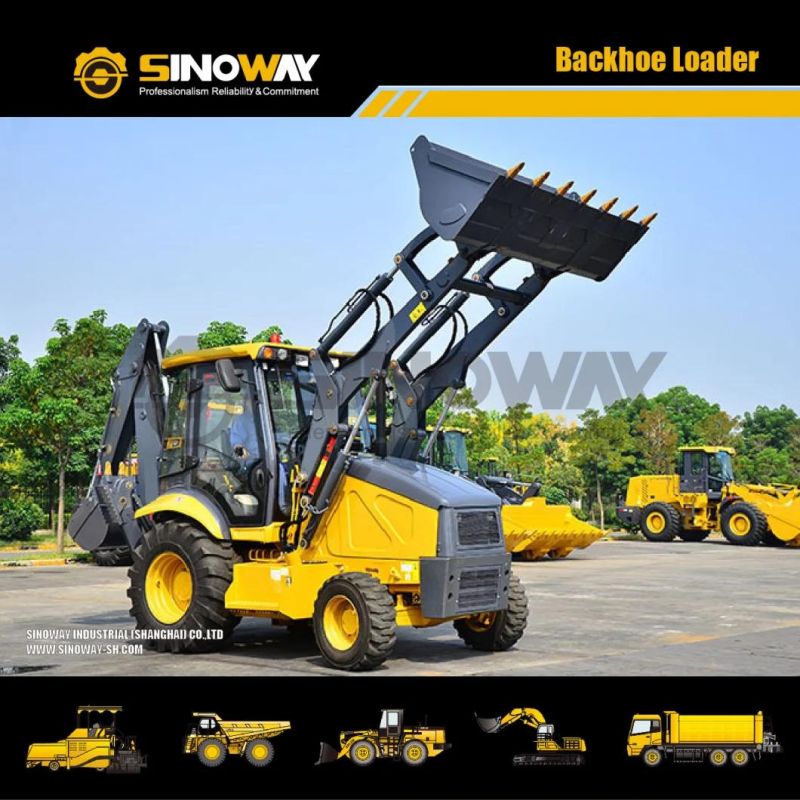

Product Show

Specifications

Engine
Make	CUMMINS
Type	Four-cylinder,water-cooled turbocharged,mechanical injection
Rated power	74KW
Rated speed	2200rpm
Main Technical Specification
Loading
Rated load	2500Kg
Operating weight	8100Kg
Rated bucket capacity	1.0m3
Max. breakout force	66KN
Max. dump clearance	2770mm
Dump reach	705mm
Min. turning radius	3350mm
Lifting time of bucket	≤5s
Fastest Total Cycle Time	≤10s
Pressure	24Mpa
Digging
Rated bucket capacity	0.2m3
Max. digging depth	4250mm
Max. digging force	51KN
Max. digging radius	5500mm
Pressure	24Mpa
Steering System
Type	Front wheel Steering
Make of steering pump	EATON
Transmission System
Torque Converter
Make	CARRARO
Torque ratio	2.55
Cooling type	Pressure oil circulating
Gear box
Make	CARRARO
Type	Synchromesh mechanical shift
Travelling speed	40km/h
Implement Hydraulic System
Make of oil pump	PERMCO
Make of loading/digging valve	WALVOIL
Service Capacities
Fuel tank	150L
Hydraulic tank	150L
Dimensions
Overall length	7400mm
Overall width	2350mm
Overall height	3450mm
