• Type：Small Loader
• OEM：Available
• Tire：16,70-16
• Operating Weight：3500kg
• Bucket Capactiry：0.9cbm
• Transport Package：Nude Cargo
• Specification：5340*1900*2750mm
• Trademark：LuGong
• Origin：China
• HS Code：8429510000
• Production Capacity：40000

Basic Info.

Type Small Loader OEM Available Tire 16/70-16 Operating Weight 3500kg Bucket Capactiry 0.9cbm Transport Package Nude Cargo Specification 5340*1900*2750mm Trademark LuGong Origin China HS Code 8429510000 Production Capacity 40000

Product Description

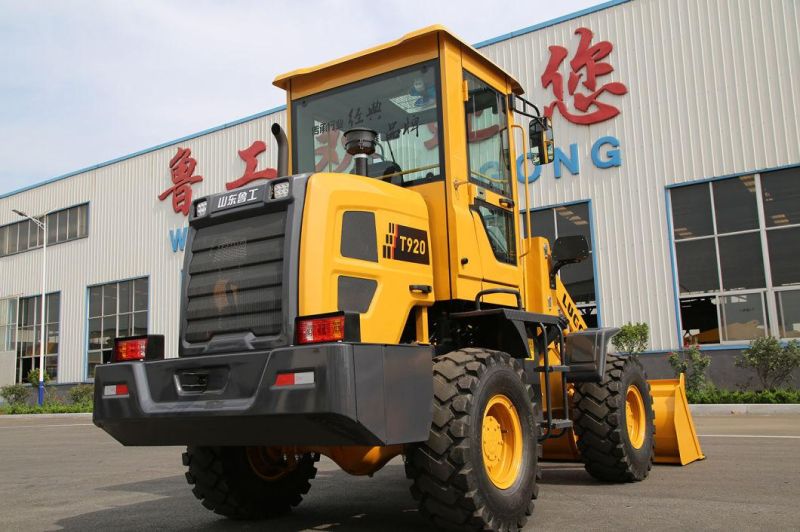

Lugong Chinese Brand New Generation Agricultural Garden Machinery Construction Front End Mini Wheel Loader T930

Basic Qualification




The parameter of T series


	T920	T930	T933
bucket capacity	0.60m³	0.90m³	0.90m³
rated load	1500kg	1800kg	1800kg
operating weight	2950kg	3500kg	4340kg
overall dimension	4940X1800X2750mm	5340X1900X2750mm	5640X2000X2750mm
bucket width	1800mm	1900mm	2000mm
Max. dumping height	2900mm	3200mm	3500mm
Max. dumping distance	740mm	650mm	700mm
turning radius	4700mm	4900mm	4900mm
Engine Model	Sida490	Huafeng 4102	Huafeng 4102 turbo
rated power	42kw	65KW	65KW
type	hydraulic torque converter	hydraulic torque converter	hydraulic torque converter
gearbox pattern	automatic 265	automatic 265 split	automatic 265 split
axle	AWD, small hub reduction	AWD, small hub reduction	AWD, medium hub reduction
tyre size	20.5-16	20.5-16	16/60-20

Advantages of T930


1.Engine

•Famous brand opption:CUMMINS, DEUTZ, YUNNEI;
•Better cost-effective and best cooperation with brands:WEICHAI-HF, YUCHAI,SIDA

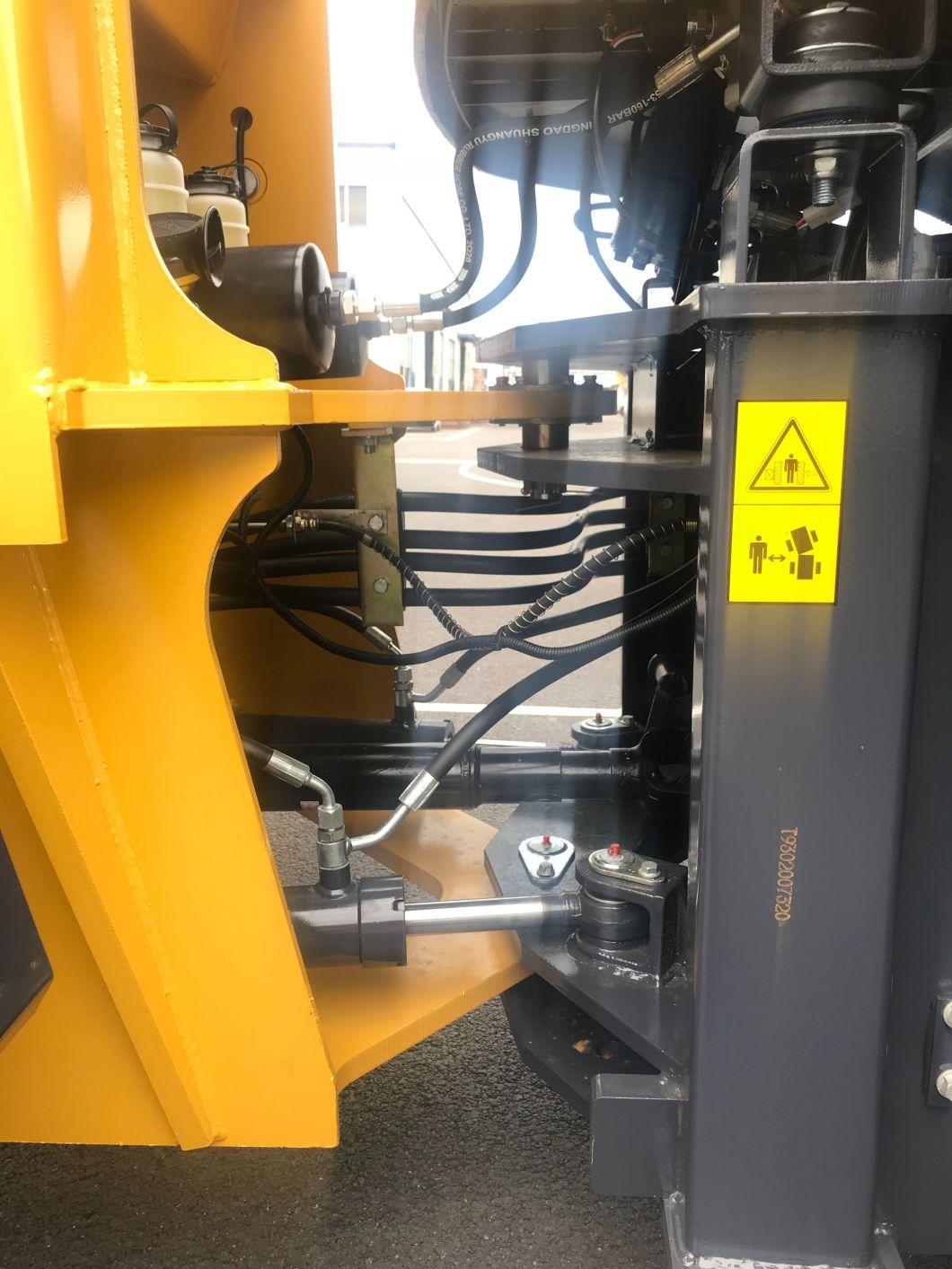

2.Articulaiton

• Extended and widened plate charges in column,more strengthfull.
•Trajectory coincidence technology reduce tire wear and machine load capacity, turning radius is small and more flexible.

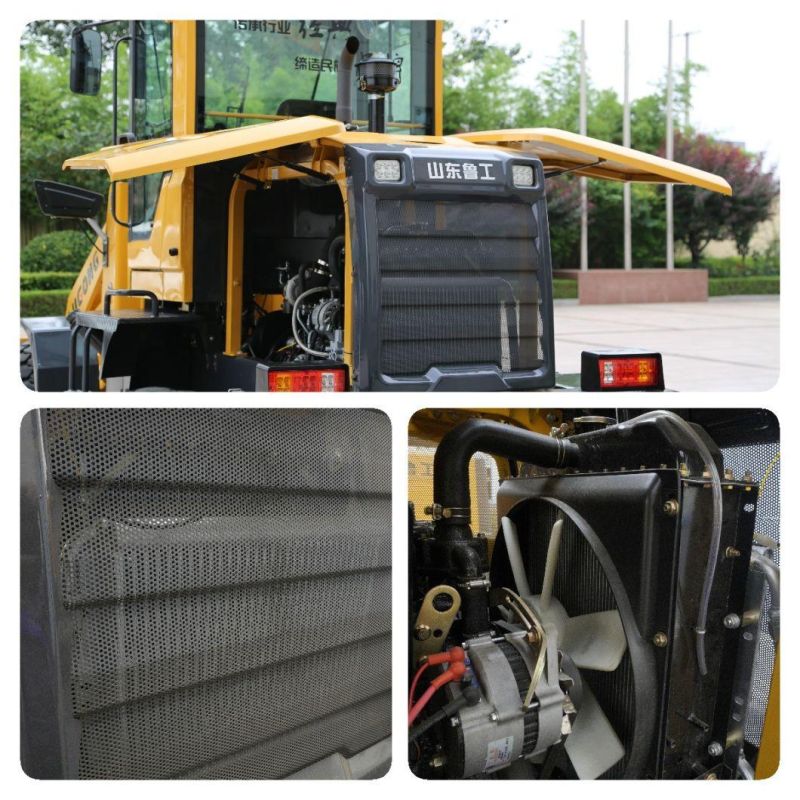

3.Cooling systerm

•High level water tank gets better radiation effect.
•Water and oil cooling systerm separately.
•Large hole grid and widen 32mm double-row pipes increases radiation effect and prevent blocked;



4.Appearance

•Drawing stamping process gets high structural strength and arc design gets good visual effect;
•Electro-painting prevents metal from getting rusted soon.
•Stamping engineering gets more durable performance for grid plate.Small and narrow hole on it prevent dirties and crops into it.

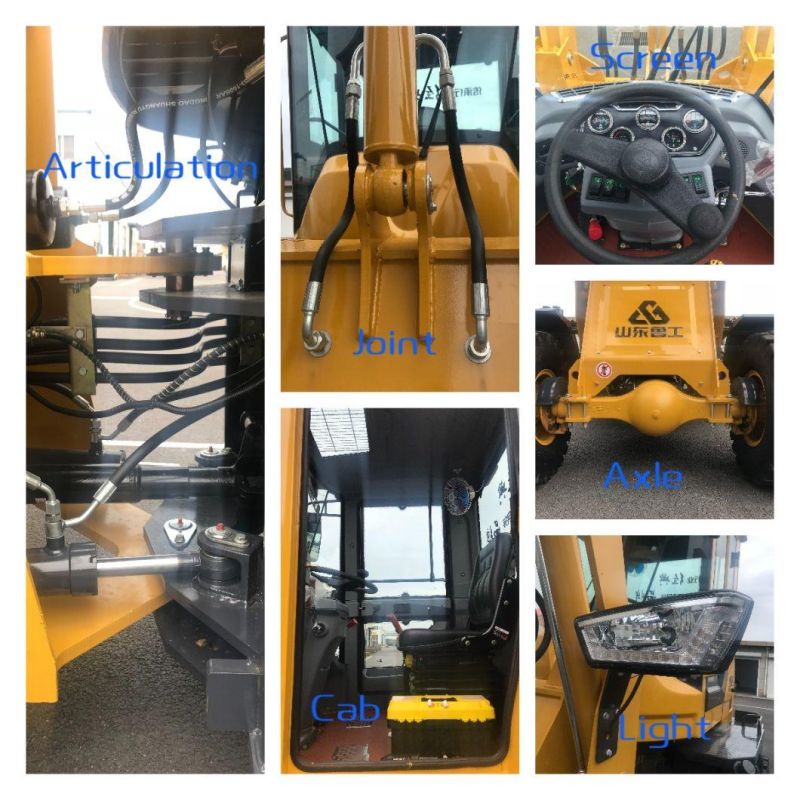

Other Details

• Shanghai "Steel" brand tire and made of 18PR Nylon;
•H type joint with two sealing rings ensures no oil leakage;

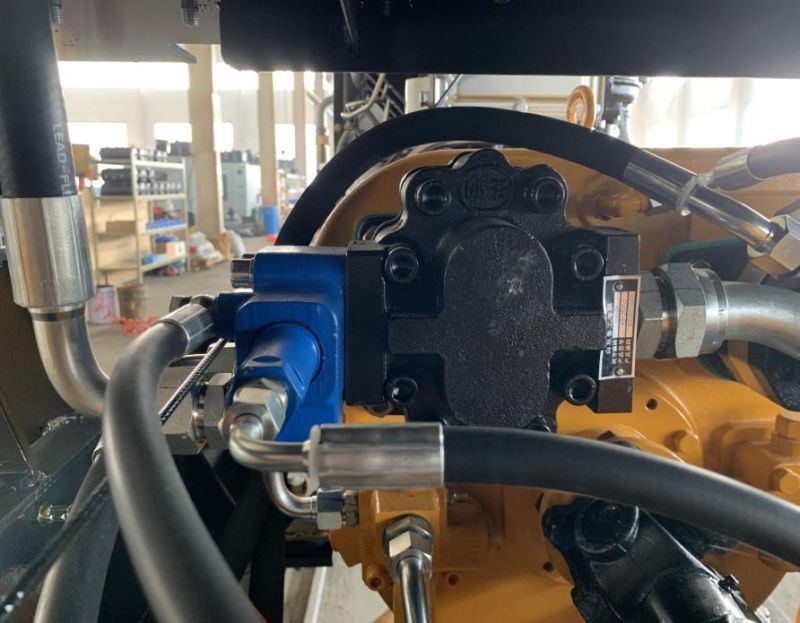

•Integrated pump and valve without hose increases safety and reduce fault;

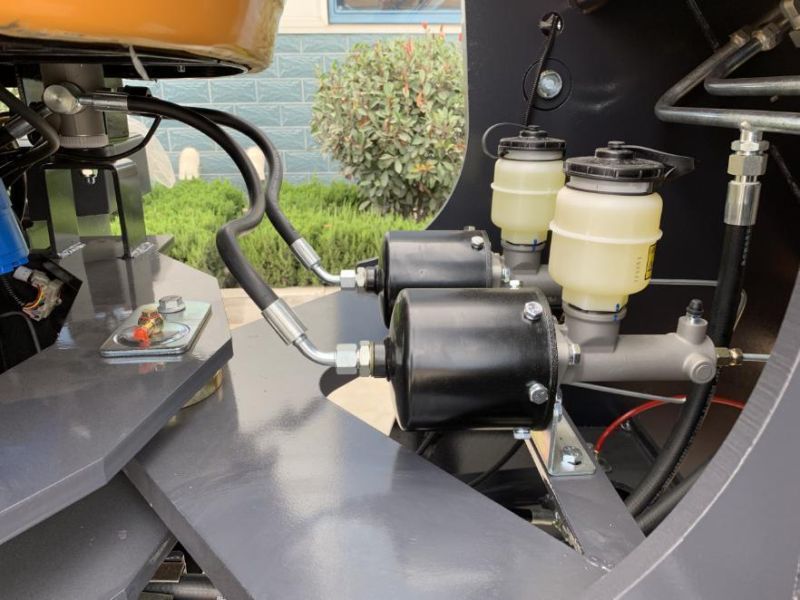

•Front and rear brake pumps separated design prevents brake failure;
•LED lights are more bright and have longer life;

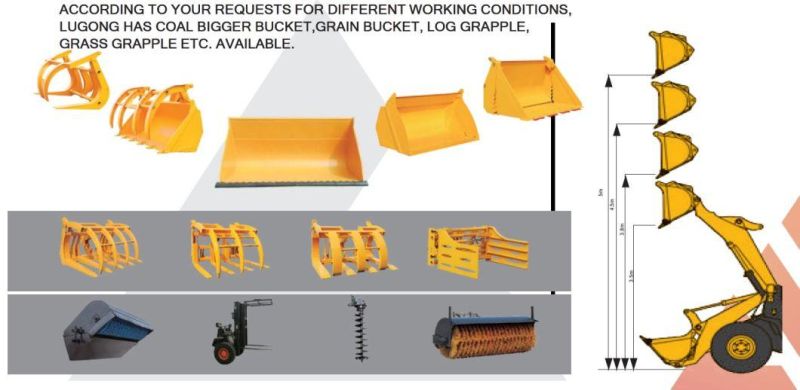

Attachements

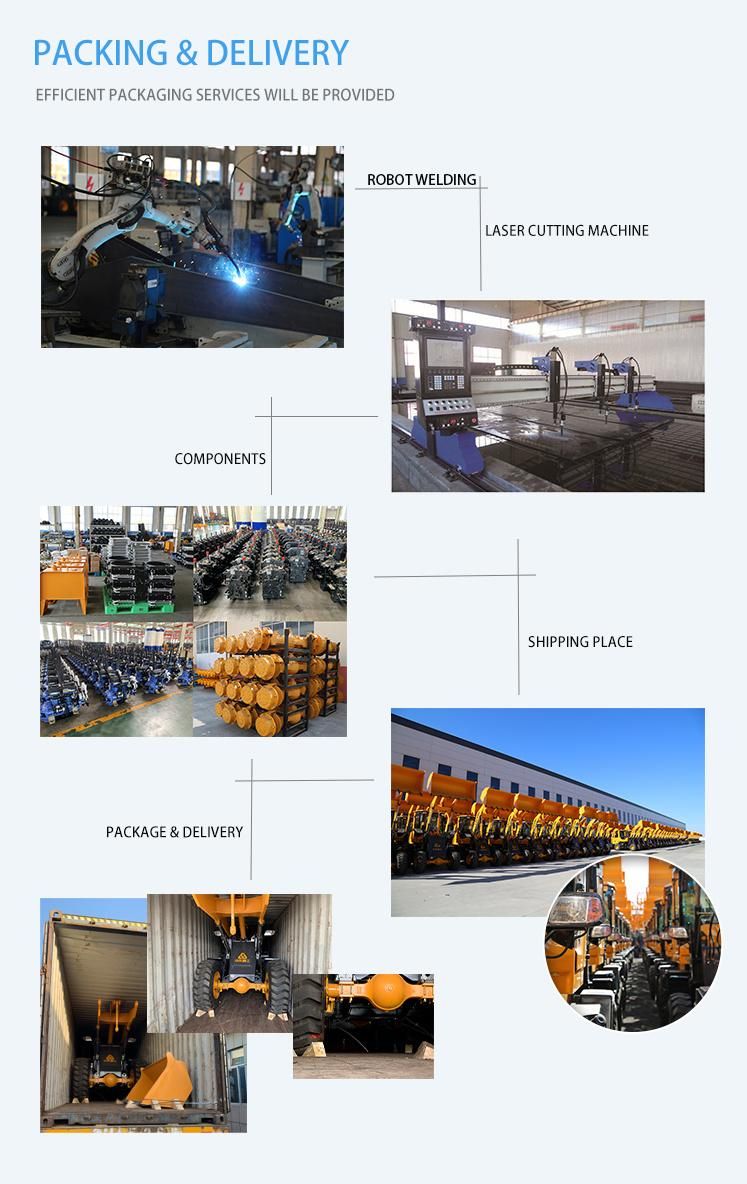

Packing & Delivery


The Company Profile

  Shandong Lugong Machinery CO.,Ltd was founded in 2000.which is located at Yantai Shandong City.It's the backbone enterprise of construction machinery national wide with fixed asset 500 million Yuan.It covers a land of 200 thousand square meter and 1100 employees,88 of whom are engineers and technicians.
Our company mainly produces wheel loaders.Products are mainly sold to over to 20 provinces in China and exported to dozens of countries and regions in Africa,South Asia,South America and Russia.The quality and performance of our small farm-use loaders and construction trippers are in leading position of the industry throughout the nation and well received by users.
