• Model NO.：T928
• Type：Small Loader
• OEM：Available
• Tire：20.5-16
• Operating Weight：3200kgs
• Bucket Capacity：0.8cbm
• Transport Package：Nude Cargo
• Specification：5460*1800*2750mm
• Trademark：LuGong
• Origin：China
• HS Code：8429510000
• Production Capacity：40000

Basic Info.

Model NO. T928 Type Small Loader OEM Available Tire 20.5-16 Operating Weight 3200kgs Bucket Capacity 0.8cbm Transport Package Nude Cargo Specification 5460*1800*2750mm Trademark LuGong Origin China HS Code 8429510000 Production Capacity 40000

Product Description

Chinese Brand LUGONG Agricultural Garden Farming Machinery Construction Front End Mini Wheel Loader T928 with CE Approved

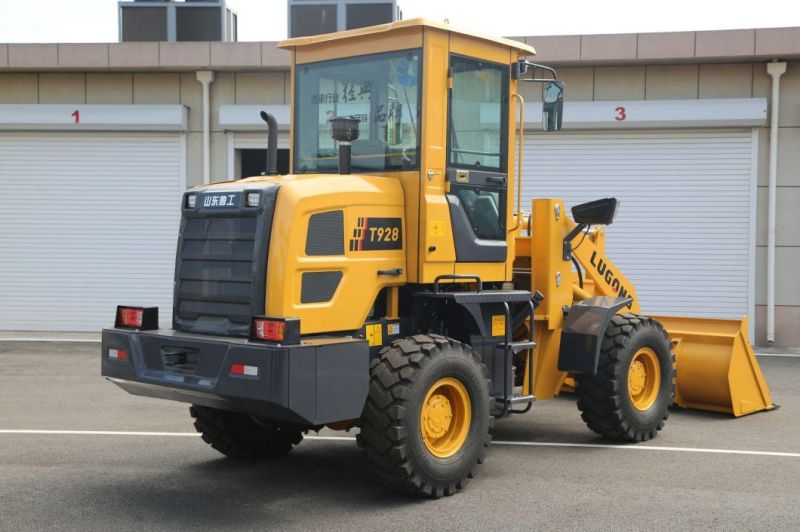

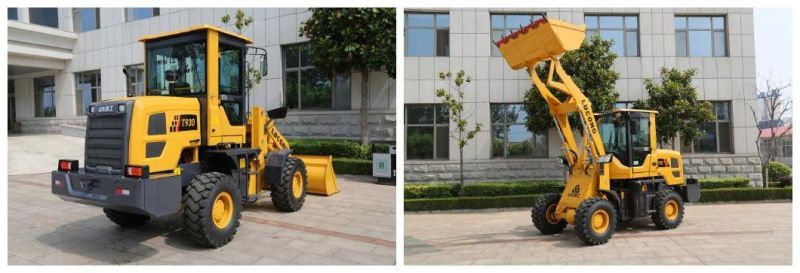

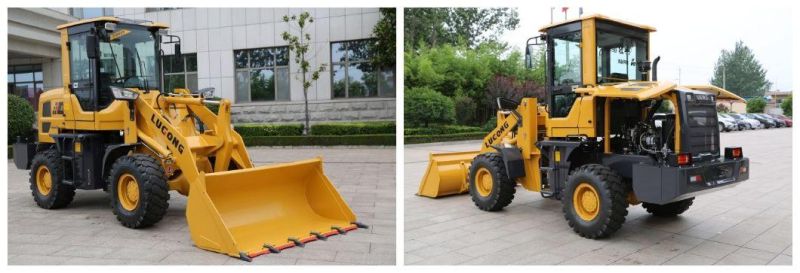

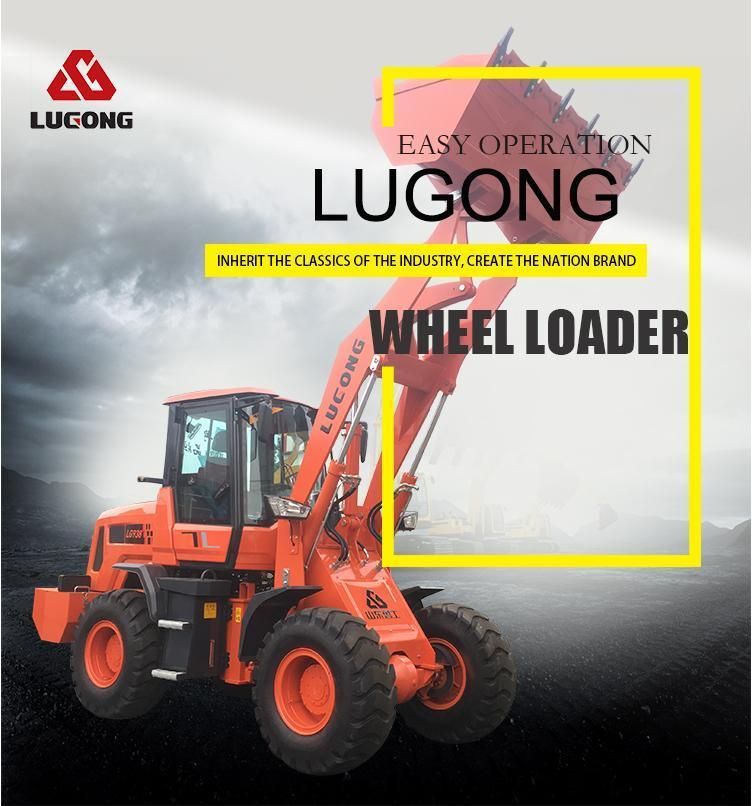

Product Appearance





The parameter of T series



	T920	T930	T933
bucket capacity	0.60m³	0.90m³	0.90m³
rated load	1500kg	1800kg	1800kg
operating weight	2950kg	3500kg	4340kg
overall dimension	4940X1800X2750mm	5340X1900X2750mm	5640X2000X2750mm
bucket width	1800mm	1900mm	2000mm
Max. dumping height	2900mm	3200mm	3500mm
Max. dumping distance	740mm	650mm	700mm
turning radius	4700mm	4900mm	4900mm
Engine Model	Sida490	Huafeng 4102	Huafeng 4102 turbo
rated power	42kw	65KW	65KW
type	hydraulic torque converter	hydraulic torque converter	hydraulic torque converter
gearbox pattern	automatic 265	automatic 265 split	automatic 265 split
axle	AWD, small hub reduction	AWD, small hub reduction	AWD, medium hub reduction
tyre size	20.5-16	20.5-16	16/60-20

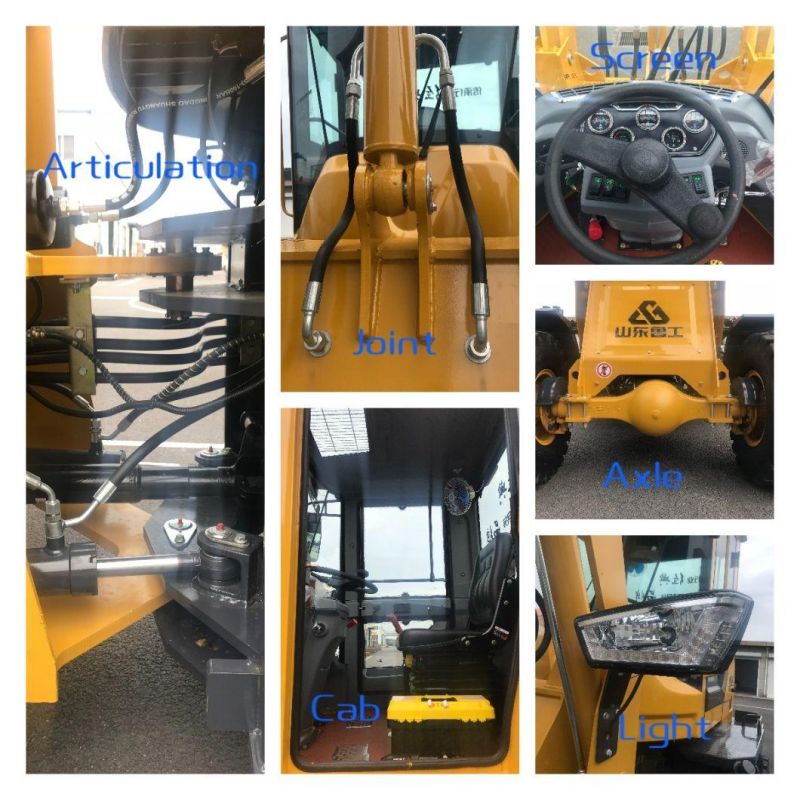

The Details of T Seires

1.Engine

•Famous brand opption:CUMMINS, DEUTZ, YUNNEI;
•Better cost-effective and best cooperation with brands:WEICHAI-HF, YUCHAI,SIDA

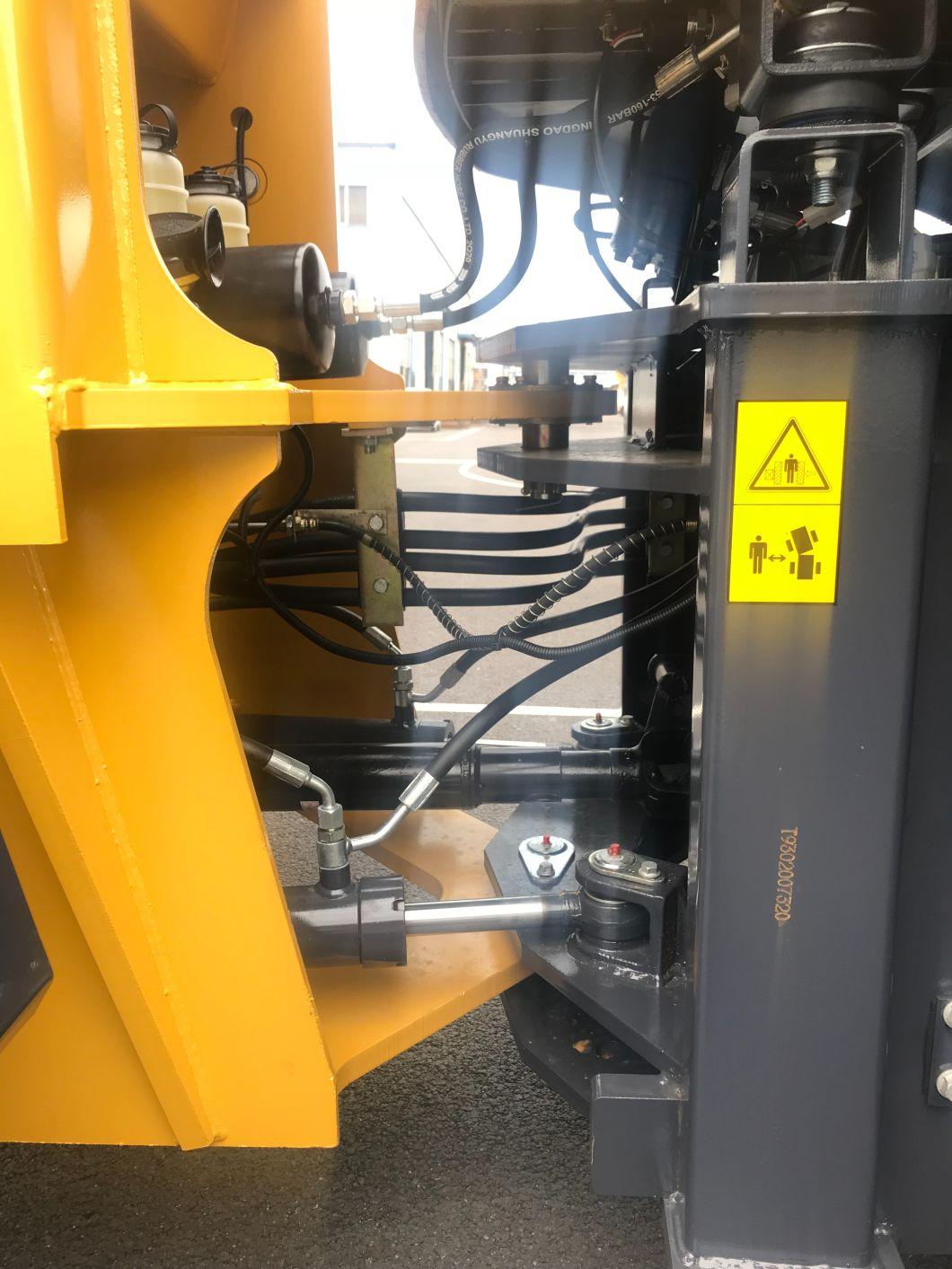

2.Articulaiton

• Extended and widened plate charges in column,more strengthfull.
•Trajectory coincidence technology reduce tire wear and machine load capacity, turning radius is small and more flexible.

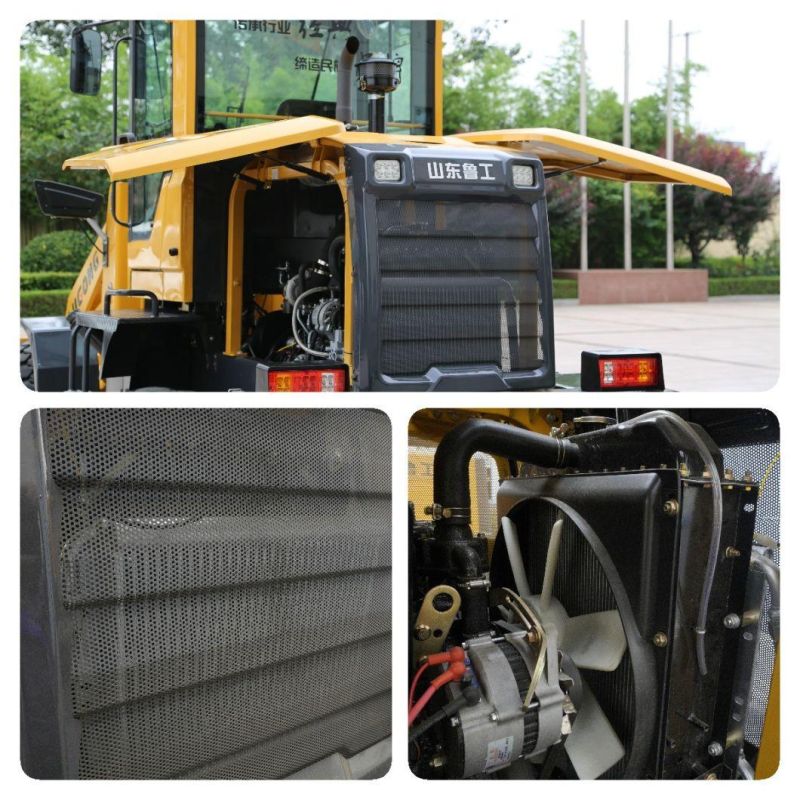

3.Cooling systerm

•High level water tank gets better radiation effect.
•Water and oil cooling systerm separately.
•Large hole grid and widen 32mm double-row pipes increases radiation effect and prevent blocked;

4.Appearance

•Drawing stamping process gets high structural strength and arc design gets good visual effect;
•Electro-painting prevents metal from getting rusted soon.
•Stamping engineering gets more durable performance for grid plate.Small and narrow hole on it prevent dirties and crops into it.


Other Details

• Shanghai "Steel" brand tire and made of 18PR Nylon;
•H type joint with two sealing rings ensures no oil leakage;
•Integrated pump and valve without hose increases safety and reduce fault;
•Front and rear brake pumps separated design prevents brake failure;
•LED lights are more bright and have longer life;

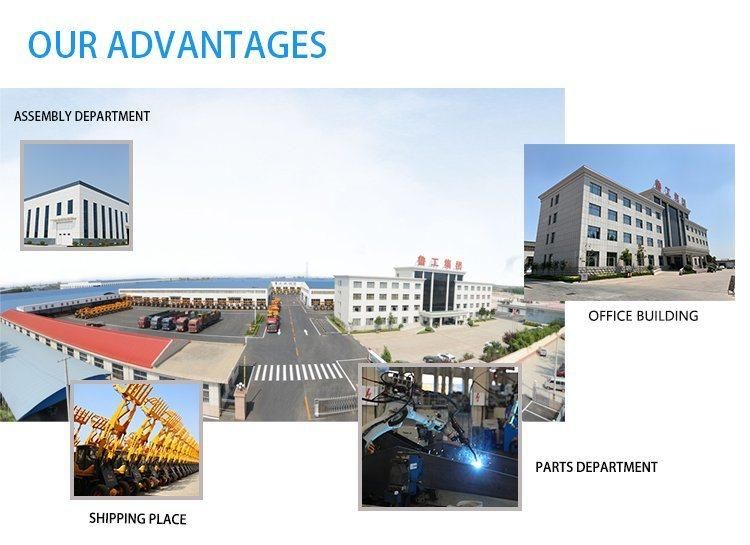

Brief introduction of factory



•Founded in 2000.
•Covers a land of 200,000 square meter.
•1100 employees,88  engineers.
•Compact wheel loaders are in leading position in demestic market.
•40,000 set of machines sold out on average last year


Honor and Certificate



Market Distribution

Lugong compact wheel loaders are mainly sold in China and exported to  Australia, Africa, Southeast Asia, South America and Russia etc.

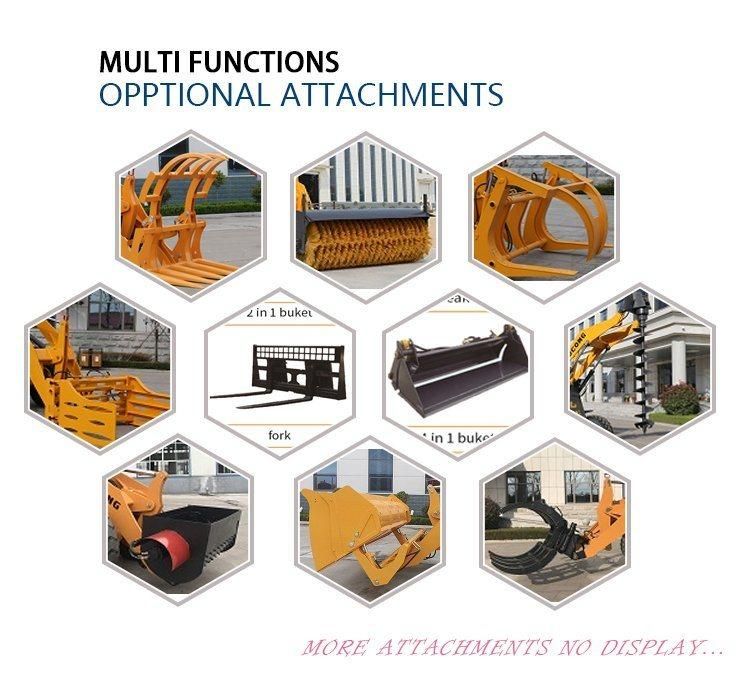

Attachments
Packing & Delivery
