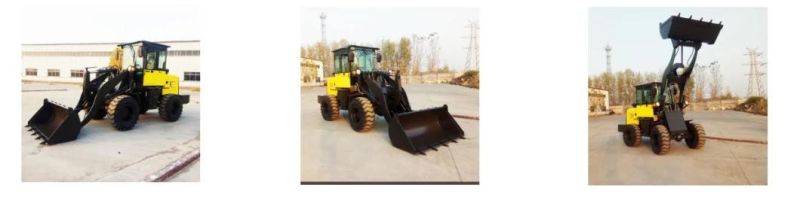

Wheel Loader Machine 1.5 Ton Small Machine Front Bucket Loader
Taian Zhengtai Construction Machinery Co., Ltd.- Certification：ISO
- Condition：New
- Rated Load：1-3t
- Transmission：Hydraulic - Mechanical
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
Base Info
- Type：Small Loader
- Standard Bucket：0.75cbm
- Unloading Distance (mm)：880mm
- Operating Weight：4700kg
- Max Dump Heigh：2930mm
- Tyre Specification：16,70-20
- Transport Package：Nude
- Specification：55560*1860*2650mm
- Trademark：ZTMACHINE
- Origin：China
- HS Code：842951000
- Production Capacity：30
Description
Basic Info.
Type Small Loader Standard Bucket 0.75cbm Unloading Distance (mm) 880mm Operating Weight 4700kg Max Dump Heigh 2930mm Tyre Specification 16/70-20 Transport Package Nude Specification 55560*1860*2650mm Trademark ZTMACHINE Origin China HS Code 842951000 Production Capacity 30Product Description
| Description | Specification |
| rated load(kg) | 1500 |
| Rated bucket capacity(m³) | 0.7 |
| operating weight(kg) | 4700 |
| Max.dump height(MM) | 3210 |
| Max.dump reach(MM) | 880 |
| Automatic leveling ability | Y |
| steering angle(°) | 35 |
| Min turning radius(MM) | 5060 |
| Wheel base(MM) | 2250 |
| Tread(MM) | 1490 |
| Min.ground clearance(MM) | 360 |
| Overall dimensions (l×w×h)mm(MM) | 5500×1860×2650 |
| travel speed(km/h) | |
| Forward gear I | 0~9 |
| II | 0~35 |
| reverse gear I | 0~9 |
| II | 0~35 |
| Engine Model | Xinchai498/Yunnei 4BL105 |
| Type | Water injection four-stroke inline |
| Rated power(kW) | 40/76 |
| Rated speed(rpm) | 2200 |
| The voltage(V) | 12 |

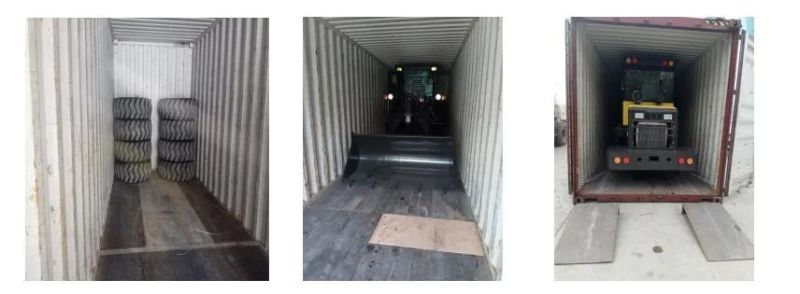

Packing & Delivery
Container 40HC 2 units can be installed (2* 40HC containers can hold 5 units)
1.Standard packing, the machine body is without packing, but the machine will be well fastened and fixed in the container by wire rope.2. spare parts or wearing parts will be packed in wooden box or paper carton. 3. Standard shipping method is by container.
Client visit

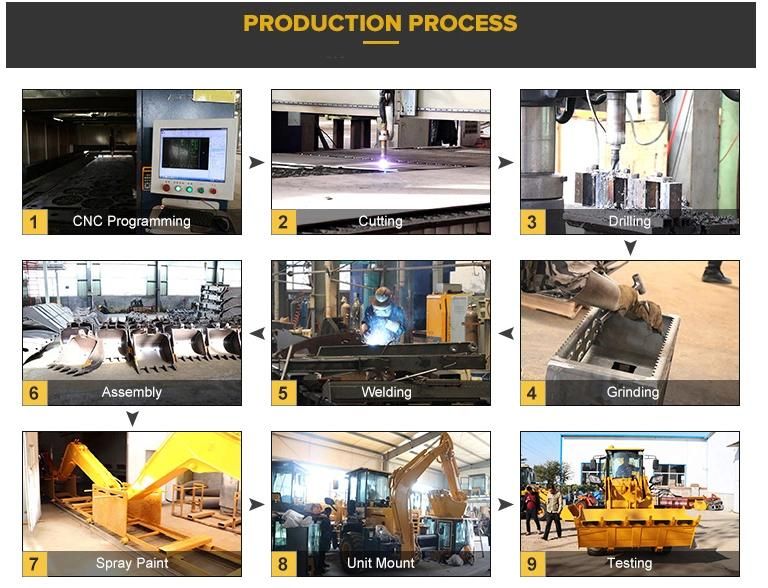

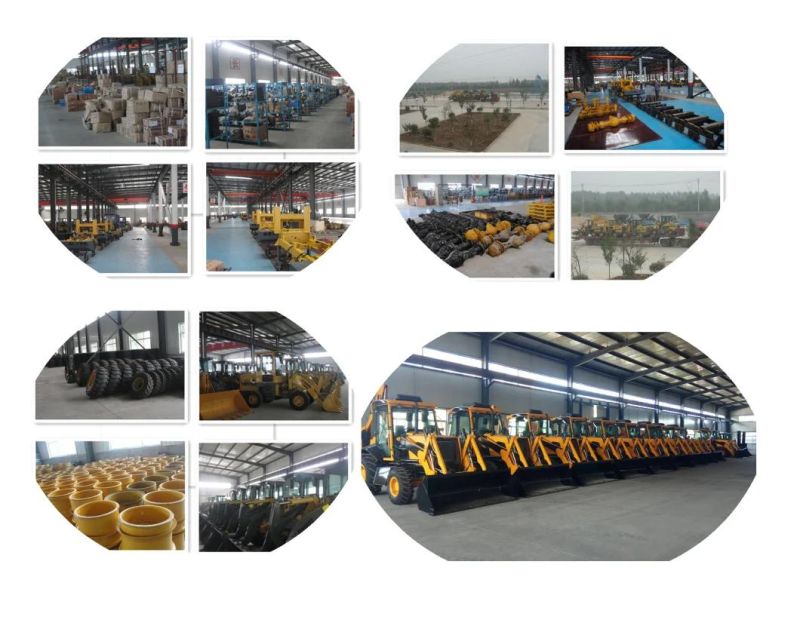

production line
