• Type：Small Loader
• Standard Bucket：0.75cbm
• Unloading Distance (mm)：880mm
• Operating Weight：4700kg
• Max Dump Heigh：2930mm
• Tyre Specification：16,70-20
• Transport Package：Nude
• Specification：55560*1860*2650mm
• Trademark：ZTMACHINE
• Origin：China
• HS Code：842951000
• Production Capacity：30

Basic Info.

Type Small Loader Standard Bucket 0.75cbm Unloading Distance (mm) 880mm Operating Weight 4700kg Max Dump Heigh 2930mm Tyre Specification 16/70-20 Transport Package Nude Specification 55560*1860*2650mm Trademark ZTMACHINE Origin China HS Code 842951000 Production Capacity 30

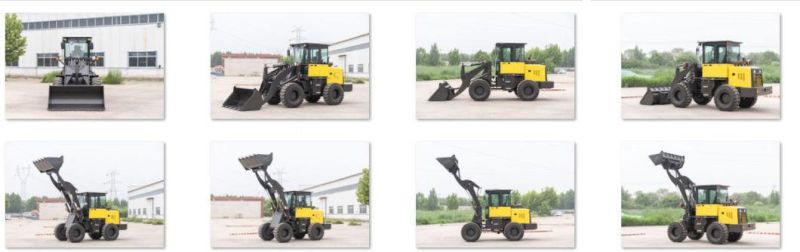

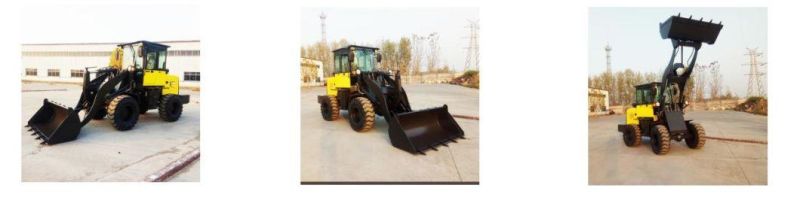

Product Description



Description	Specification
rated load(kg)	1500
Rated bucket capacity(m³)	0.7
operating weight(kg)	4700
Max.dump height(MM)	3210
Max.dump reach(MM)	880
Automatic leveling ability	Y
steering angle(°)	35
Min turning radius(MM)	5060
Wheel base(MM)	2250
Tread(MM)	1490
Min.ground clearance(MM)	360
Overall dimensions (l×w×h)mm(MM)	5500×1860×2650
travel speed(km/h)
Forward gear     I	0~9
II	0~35
reverse gear    I	0~9
II	0~35
Engine Model	Xinchai498/Yunnei 4BL105
Type	Water injection four-stroke inline
Rated power(kW)	40/76
Rated speed(rpm)	2200
The voltage(V)	12

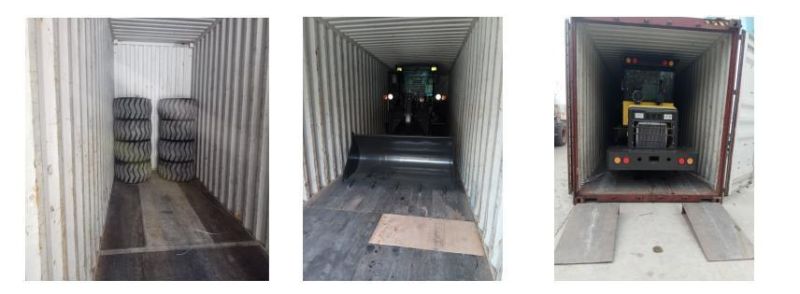

Packing & Delivery
Container 40HC 2 units can be installed  (2* 40HC containers can hold 5 units)
1.Standard packing, the machine body is without packing, but the machine will be well fastened and fixed in the container by wire rope.2. spare parts or wearing parts will be packed in wooden box or paper carton. 3. Standard shipping method is by container.
Client visit

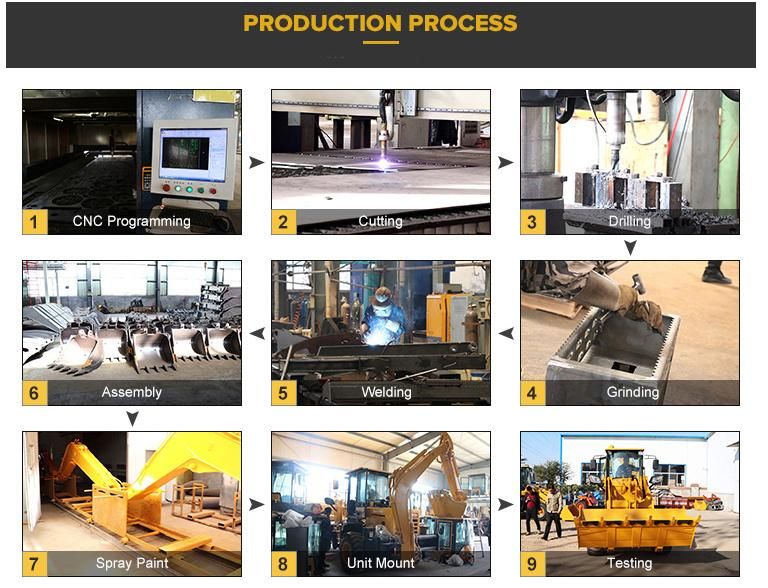

production lineFAQ

Q: Are you a manufacturer or a trading company?
A: We absolutely are a manufacturer for 23 years.

Q: Is it convenient for us to visit your factory?
A: Yes, of course. Welcome to visit our factory. Our company is in the Industrial Park Shiheng town Feicheng City Shandong province China. So the traffic is very convenient.

Q: Can you do some changes according to our requests?
A: Sure. We can do some changes according to your uses. We provide many options, like A/C, Cabin heater, Forklift, Pallet fork,log grapple, grass fork etc.

Q: Where is your main market?
A: Southeast Asia, Russia, South America, Africa and the whole Chinauses.

Q:What is the payment iterm?
A: Payment iterm is negotiable and there will be favorable payment terms for long-term customers. TT or L/C depends on the cooperation time, country and contract value.

Q:What kind of logistic service do you supply?
A: FOB, CIF
