• Model NO.：SWMD420S
• Condition：New
• Color：Yellow
• Blade Capacity：16m3
• Blade Type：Semi-U
• Track Width：610 mm
• Max. Lifting Height：1545 mm
• Track Gauge：2260mm
• Warranty：1 Year
• Transport Package：Nude
• Specification：Operating weight 53 ton
• Trademark：SINOWAY
• Origin：China
• HS Code：84314900
• Production Capacity：100 PCS , Year

Basic Info.

Model NO. SWMD420S Condition New Color Yellow Blade Capacity 16m3 Blade Type Semi-U Track Width 610 mm Max. Lifting Height 1545 mm Track Gauge 2260mm Warranty 1 Year Transport Package Nude Specification Operating weight 53 ton Trademark SINOWAY Origin China HS Code 84314900 Production Capacity 100 PCS / Year

Product Description

Main Advantages

Equipped with Cummins engine, more powerful and more reliable, compliant with national emission standard stage III .
Hydraulic gearshift transmission for easier gear shifts and lower impacts.
3-element, single stage, single phase torque converter for higher efficiency and bigger capacity.
Newly cab for a wide view, ROPS-FOPS structure for safety.
Three-stage alarm electron monitor system effectively monitors the movement of the machine.
Implement control is piloted for less operating efforts. Hydraulic system effects according to the load feedback to save fuel.
More pleased appearance; Improved operating comfort.
New elastic and shock absorption track frame for increased adhesion force and added wheel life.
Centralized lubrication for easy maintenance.
Electric fuel feeder for easy fuel feeding.
Centralized pressure checking for easier malfunction diagnosis.
Automatic dust discharge type air precleaner adopted to remove dust efficiently.

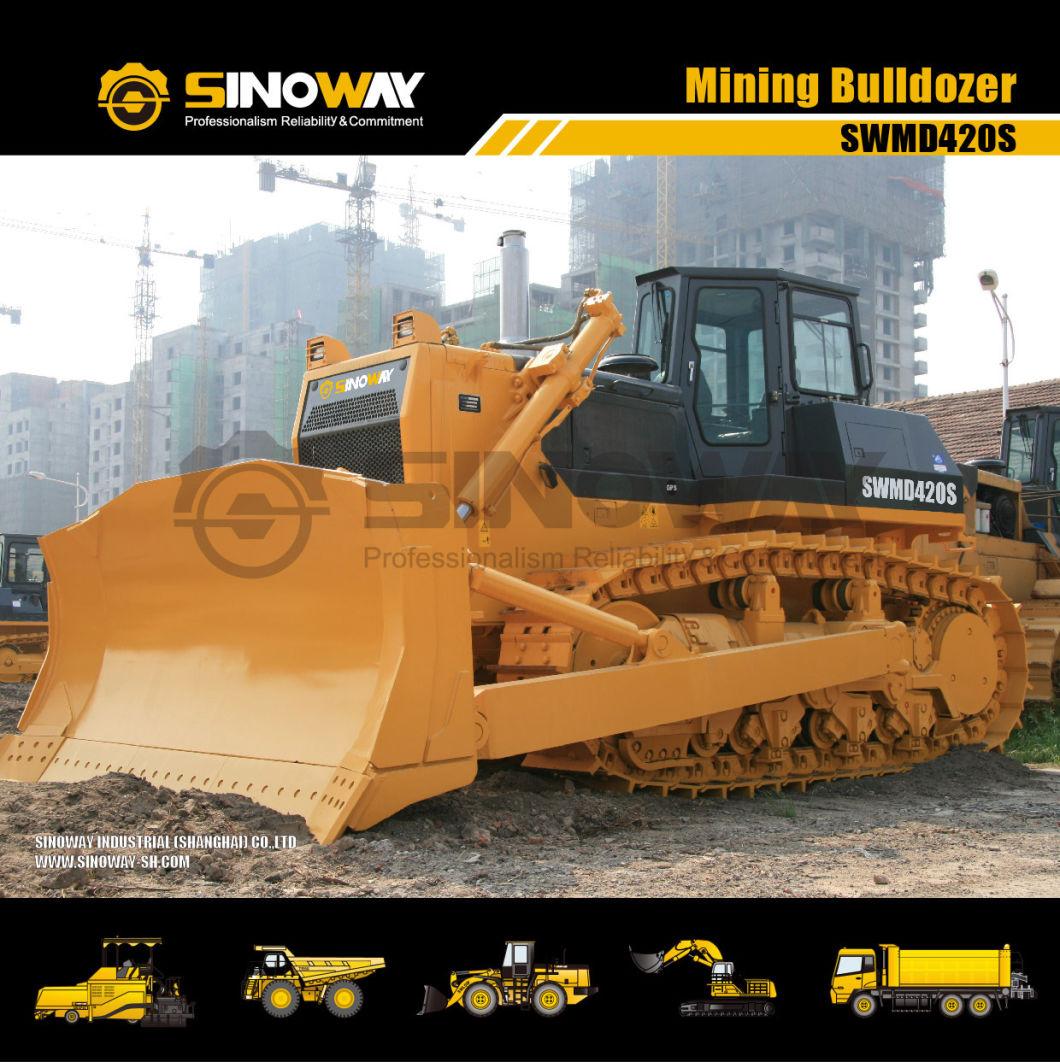

Machine Show




Specifications

Engine
Model	Cummins K19
Type	In-line, water-cooled, 4-cycle turbocharged, intercooled, direct injection
Rated power	310KW
Rated Speed	2000rpm
Under Carriage System
Type	K type elastic suspended structure
Number of track rollers (each side)	7
Number of carrier rollers (each side)	2
Track type	Link master, seal, lubricated type
Track pitch	260.35mm
Track width	610mm
Number of track shoes (each side)	41
Track length on ground	3560mm
Track gauge	2260mm
Ground clearance	525mm
Main Technical Specification
Operating weight(with ripper)	53000Kg
Ground pressure	0.123MPa
Grade ability	30°

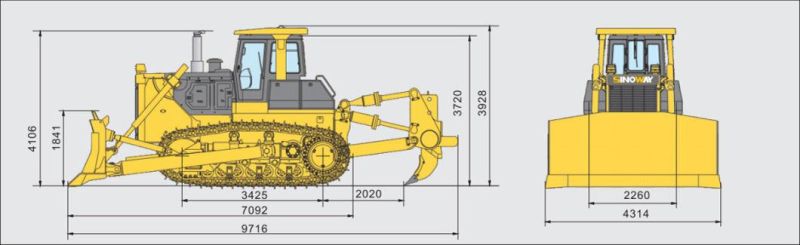

Overall dimensions (L×W×H)	9630×4315×3955mm
Working Equipment
Blade type	Semi-U blade
Width	4315mm
Height	1875mm
Max. digging depth	700mm
Max. lift above ground	1545mm
Blade capacity	16m³
Ripper type	Single-shank ripper
Ripping depth of ripper	1400 mm
Lifting height of ripper	1130 mm
Transmission System
Torque converter	3-element, 1 stage, 1 phase
Transmission	Forced connected, planetary gear hydraulic control
Main drive	Spiral bevel gear, splash lubrication
Final drive	1-stage spur gear, 1-stage planetary speed reduction, splash lubrication
Travel Speed
Gear shifts(Forward/Reverse)	F3/R3
Travelling speed
Forward I	0~3.7km/h
Forward II	0~6.8km/h
Forward III	0~12.2km/h
Reverse I	0~4.4km/h
Reverse II	0~8.2km/h
Reverse III	0~14.8km/h
Steering clutch	Wet, multi-disc, spring loaded, hydraulically separated, electric and hydraulic control
Steering brake	Wet, floating, hydraulic helping operation, hydraulic control

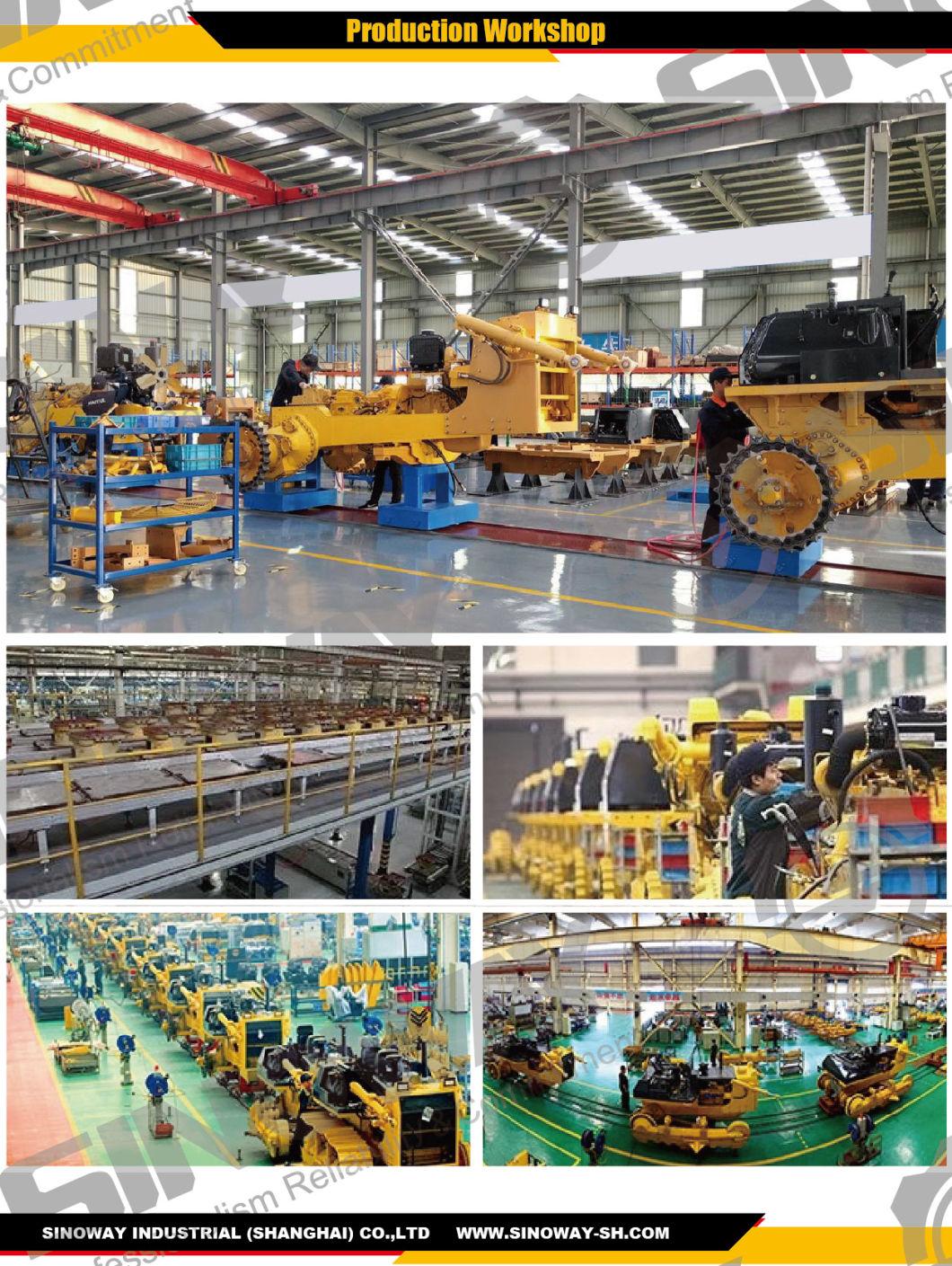

Assembly Line


Service Support

Sinoway treat Service as a significant segment in our value chain. All of our service-related businesses-aftermarket parts, technical support, training, OEM Solutions are based on offering more professional service, extending the life of each machine we delivered.

For special key projects and VIP customers, Sinoway offer on-site field service for a certain period, to allow the team of our users with a better understanding on the operating and maintenance, to help training the service team of their own, or give a proposal on the maintenance solutions according to the special operating environment. With the field service, we are confident to enable our machinery reduce the downtime at maximum and help our clients fulfill the project smoothly and on time.

Condition	Brand New
Warranty	One year or 2000 working hours, whichever comes earlier.
Shipment Terms	FOB, CFR, CIF, CIP DAF
