• Model NO.：SWMH250K
• Drive Type：Internal Combustion Drive
• Bucket Capacity：1.0~1.5m³
• Size：Medium-Sized
• Certification：ISO9001: 2000, ISO14001
• Condition：New
• Working Radius：10.2 M
• Max. Lifting Height：11.3 M
• Max. Lifting Moment：300kn.M
• Operating Weight：25 Ton
• Transport Package：Nude
• Specification：ISO
• Trademark：SINOWAY
• Origin：China
• HS Code：84314990
• Production Capacity：200 PCS Per Year

Basic Info.

Model NO. SWMH250K Drive Type Internal Combustion Drive Bucket Capacity 1.0~1.5m³ Size Medium-Sized Certification ISO9001: 2000, ISO14001 Condition New Working Radius 10.2 M Max. Lifting Height 11.3 M Max. Lifting Moment 300kn.M Operating Weight 25 Ton Transport Package Nude Specification ISO Trademark SINOWAY Origin China HS Code 84314990 Production Capacity 200 PCS Per Year

Product Description

Product Description

1-Dual engine ( Electric motor + Diesel engine) more environmental protection;
2-Electric operation has over-current and heat leakage protection device;
3-Utomatic identification of phase sequence to prevent reverse rotation of oil pump;
4-Hydraulic system power-off, oil self-locking protection device;
5-Multiple compound movements during operation to improve efficiency;
6-The hydraulic system is equipped with air-cooled radiator;
7-The gripper can rotate and change direction automatically 360 degrees;
8-When electric operation is carried out in the upper control room, there is a dual-purpose air conditioner for heating and cooling;

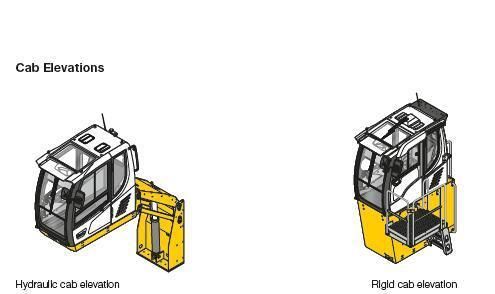

9- Hydraulic Cabin elevatied.

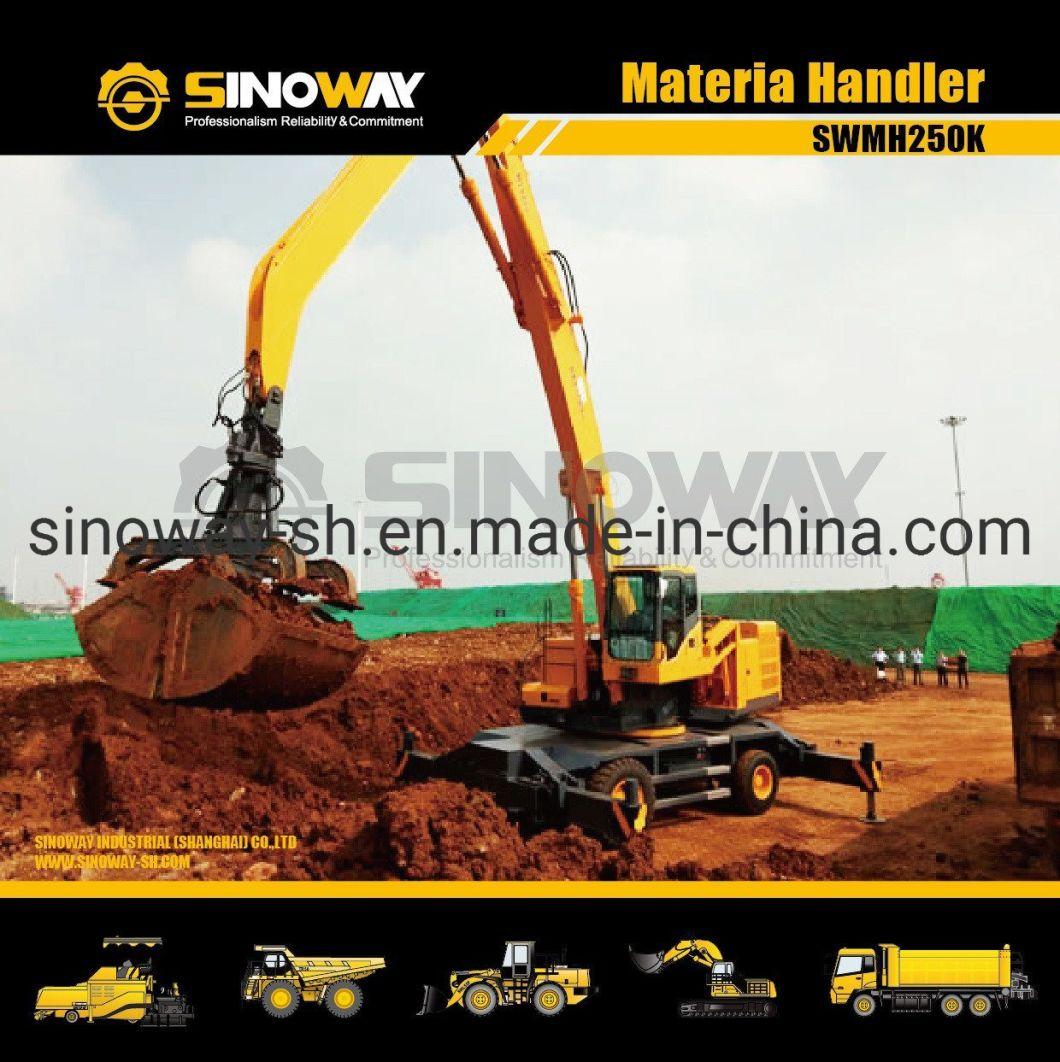

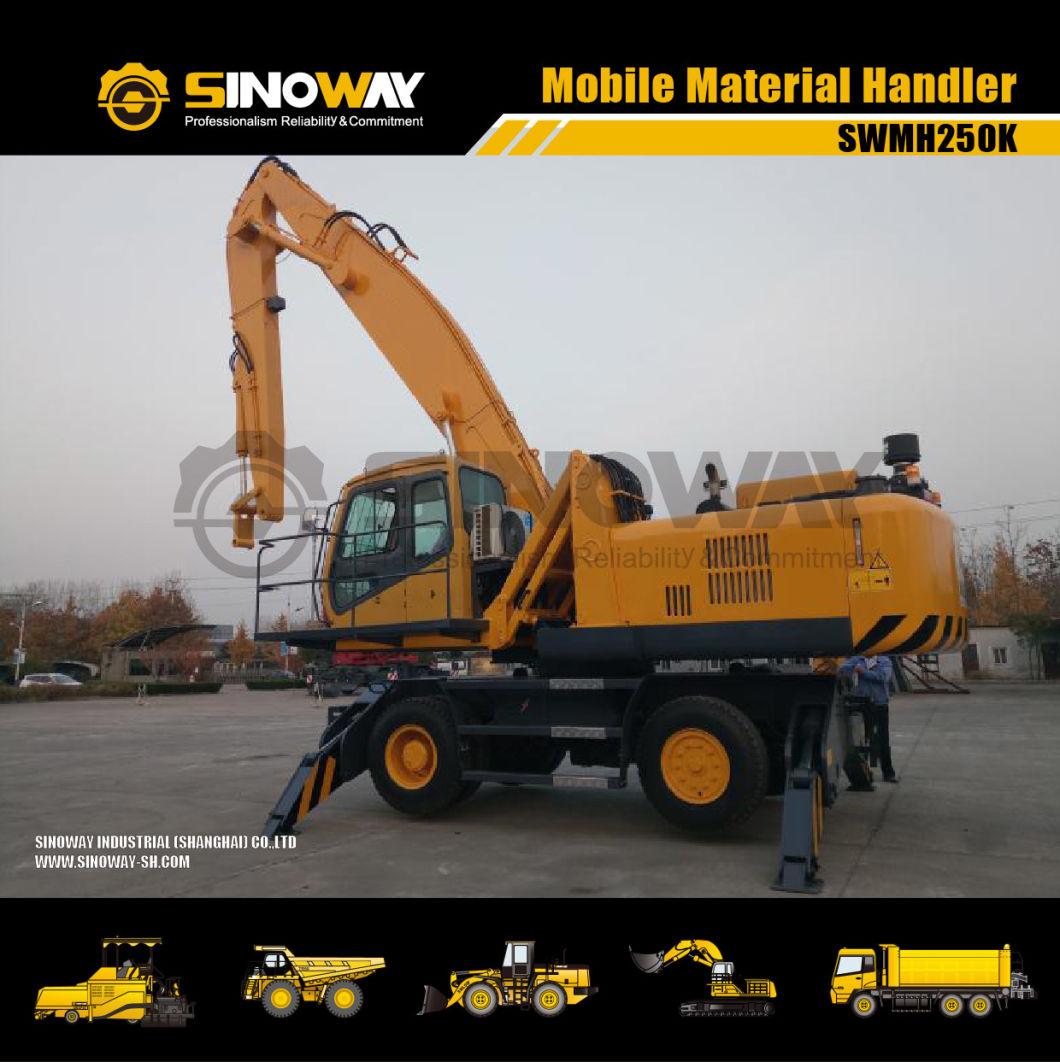

Product Show





Specifications


Mobile Material Handler SWMH250K
Power
Electrical motor	75KW
Rated speed	1200rpm
Max. swing speed(Electrical motor)	5r/min
Diesel engine	118KW
Rated speed	2200rpm
Max. swing speed(Diesel engine)	8r/min
Fuel tank capacity	320L
Main Technical Specification
Max. lifting capacity@Min. working radius	8500kg
Max. lifting capacity@Max. working radius	1000kg
Min. working radius	3000mm
Max. working radius	10200mm
Max. lifting moment	30.0t.m
Max. swing torque	75kN.m
Boom length	6200mm
Arm length	4000mm
Main luffing time(Max. speed)
-Fall boom(Electrical/Diesel)	≤17s/≤11s
-Rise boom(Electrical/Diesel)	≤21s/≤11s
Auxiliary luffing time(Max. speed)
-Fall boom(Electrical/Diesel)	≤20s/≤11s
-Rise boom(Electrical/Diesel)	≤9s/≤6s
Outrigger
-Full stretching(Electrical/Diesel)	≤16s/≤11s
-Full retracting(Electrical/Diesel)	≤12s/≤10s
Outrigger distance
-Lengthways	4500mm
-Transversal	4200mm
Travelling System
Max. travelling speed	15km/h
Min. turning radius	7.6m
Max. gradeability	10%
Min. ground clearance	250mm
Max. traction force	100kN
Approach angle	15.0°
Departure angle	15.0°
Braking distance(Speed:15km/h)	≤6.5m
Operating weight	25000kg(Including clam shell)

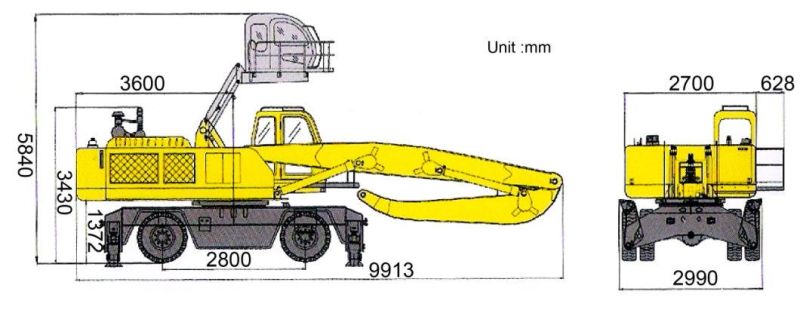

Dimension
Overall length	10800mm
Overall width	3000mm
Overall height	3430mm
Wheelbase	2800mm
Max.lifting height of cab	5840mm
Rear-end length/Slewing radius	3600mm
Counterweight clearance	1372mm
Upperstructure width	2700mm
