China Top Brand 8tons Crawler Digging Excavator 908e
Evangel Industrial (Shanghai) Co., Ltd.- After-sales Service：Online Service
- Warranty：1 Year
- Type：Crawler Excavator
- Bucket：Backhoe
- Transmission：Hydraulic Transmission
- Drive Type：Internal Combustion Drive
Base Info
- Model NO.：908E
- Bucket Capacity：0.1~0.5m³
- Size：Small-Scale
- Certification：CE, ISO9001: 2000
- Condition：New
- Operating Weight (Kg)：7500kg
- Maximum Travel Speed (High)：5.3km,H
- Arm Breakout Force：36kn
- Bucket Breakout Force：56kn
- Digging Reach：6270mm
- Engine Power：62HP
- Model：Yanmar 4tnv98-Zcsly
- Specification：6100*2260*2700mm
- Origin：China
- HS Code：8401200000
- Production Capacity：200
Description
Basic Info.
Model NO. 908E Bucket Capacity 0.1~0.5m³ Size Small-Scale Certification CE, ISO9001: 2000 Condition New Operating Weight (Kg) 7500kg Maximum Travel Speed (High) 5.3km/H Arm Breakout Force 36kn Bucket Breakout Force 56kn Digging Reach 6270mm Engine Power 62HP Model Yanmar 4tnv98-Zcsly Specification 6100*2260*2700mm Origin China HS Code 8401200000 Production Capacity 200Product Description
8Ton Crawler Small Excavators 908E
Product Feature:- Ergonomically designed cab and ergonomic placement of instruments. ROPS/ FOPS cabin available for you choice. Soundproofed cab with air conditioning and excellent visibility 360°.
- Reliable engine. Reinforced D-shaped frame protects against damage and shock. Simple, proven and reliable negative flow hydraulic system. Boom anti-drift function, stabilizes boom for precise operations. Minimal kick-back in the swing for comfort, control and injury prevention.
- Easy engine access and good location of all lock. Air, fuel and hydraulic filters are accessible from ground level. New LCD display with important information for maintenance.
Product Parameters:
| Operating weight with cab | 7500 kg |
| Operating weight with canopy | 7150 kg |
| Engine power | 46.3 kW (62.1 hp) @ 2200 rpm |
| Bucket capacity | 0.14-0.4 m³ |
| Maximum travel speed (High) | 5.3 km/h |
| Maximum travel speed (Low) | 3.2 km/h |
| Maximum swing speed | 12 rpm |
| Arm breakout force | 36 kN |
| Bucket breakout force | 56 kN |
| Shipping length | 6100 mm |
| Shipping width | 2260 mm |
| Shipping height | 2700 mm |
| Track shoe width (std) | 450 mm |
| Boom | 3710 mm |
| Arm | 1650 mm |
| Digging reach | 6270 mm |
| Digging reach on ground | 6125 mm |
| Digging depth | 4030 mm |
| Vertical wall digging depth | 3240 mm |
| Cutting height | 7115 mm |
| Dumping height | 5080 mm |
| Minimum front swing radius | 1785 mm |
| Dozer-up | 425 mm |
| Dozer-down | 440 mm |
| Model | Yan*mar 4TNV98-ZCSLY |
| System maximum flow | 158.4 L/min ( 42 gal/min) |
| System pressure | 29.4 MPa |

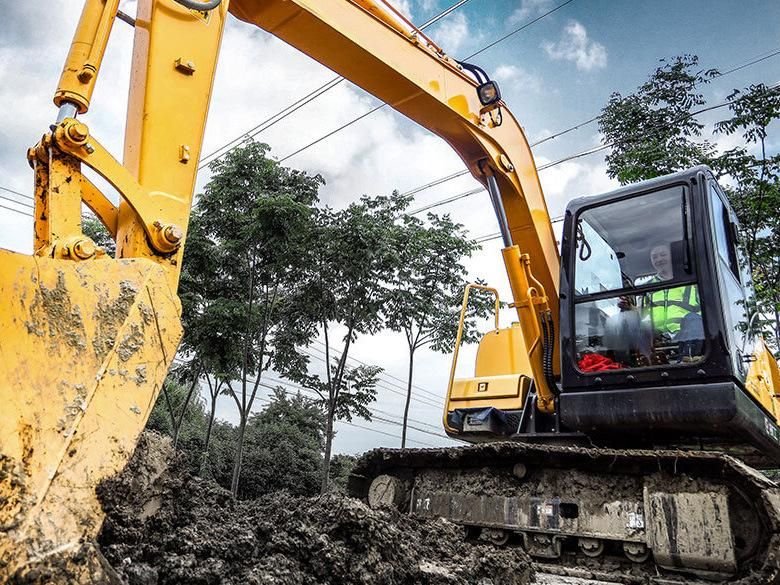

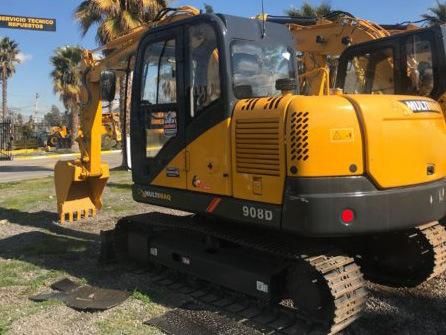

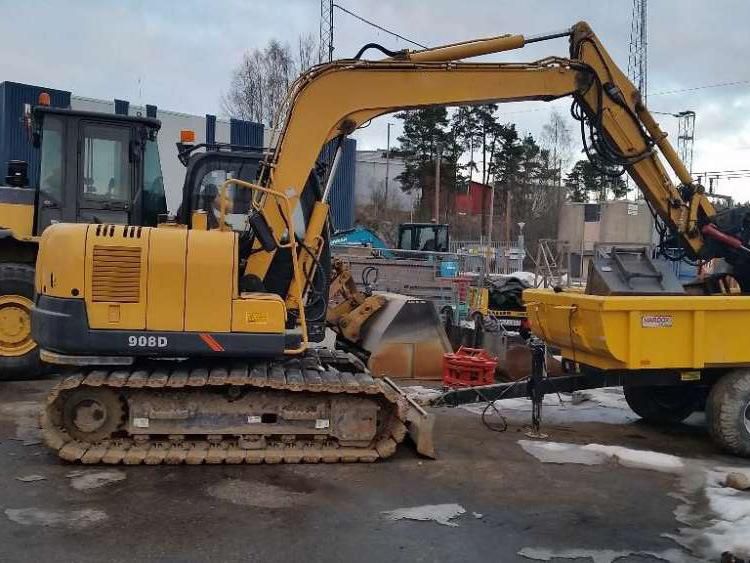

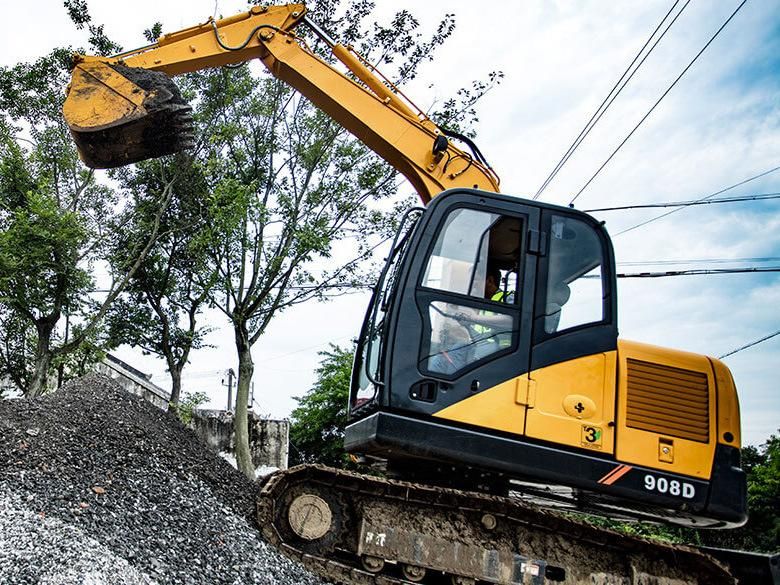

Product Show:
