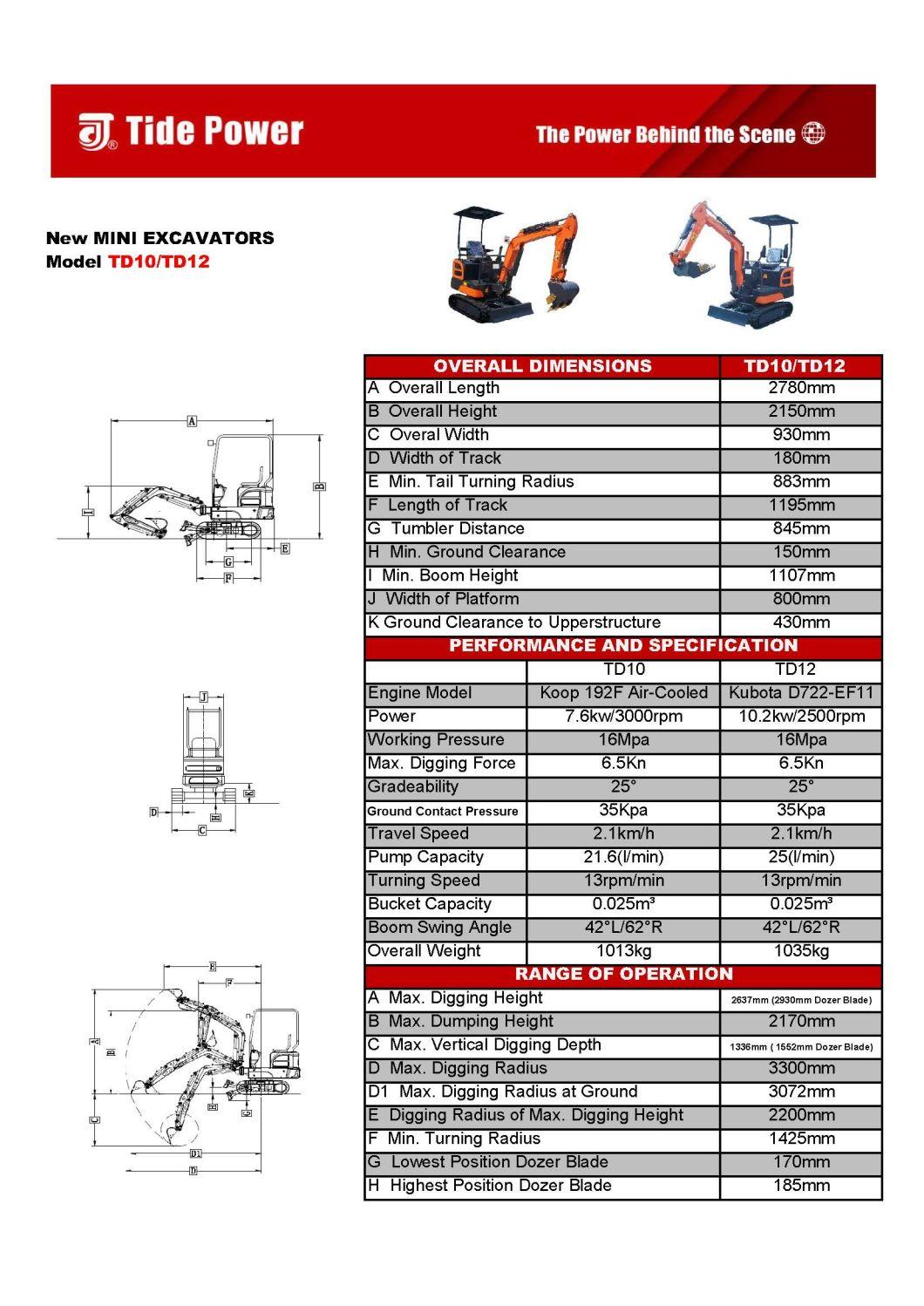

• Model NO.：TD12
• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.028m³
• Size：Small-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Engine Model：Kubota
• Pressure to The Ground：32 Kpa
• Pump：21.6L, Min
• Maximum Digging Force：7.2kn
• Working Speed：2km,H,
• Power：8.6kw
• Maximum Digging Height：2650mm
• Maximum Digging Radius：2900mm
• Minimum Turning Radius：1330mm
• Maximum Dumping Height：1850mm
• Swing Speed to Platform：12rpm
• Bucket Width：410mm
• Operation Hydraulic Pressure：16MPa
• Width of Track：180mm
• Accessory Price：Additional
• Transport Package：Plastic Package
• Specification：800KG
• Trademark：Tide
• Origin：China
• HS Code：84295212
• Production Capacity：2000

Basic Info.

Model NO. TD12 Drive Type Internal Combustion Drive Bucket Capacity 0.028m³ Size Small-Scale Certification CE, ISO9001: 2000 Condition New Engine Model Kubota Pressure to The Ground 32 Kpa Pump 21.6L/ Min Maximum Digging Force 7.2kn Working Speed 2km/H, Power 8.6kw Maximum Digging Height 2650mm Maximum Digging Radius 2900mm Minimum Turning Radius 1330mm Maximum Dumping Height 1850mm Swing Speed to Platform 12rpm Bucket Width 410mm Operation Hydraulic Pressure 16MPa Width of Track 180mm Accessory Price Additional Transport Package Plastic Package Specification 800KG Trademark Tide Origin China HS Code 84295212 Production Capacity 2000

Product Description

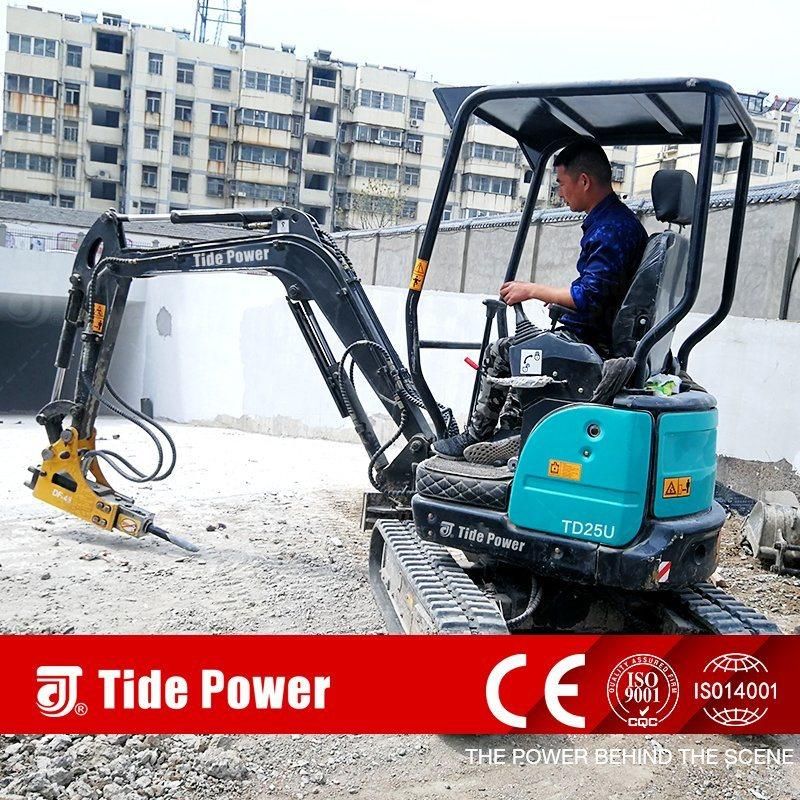

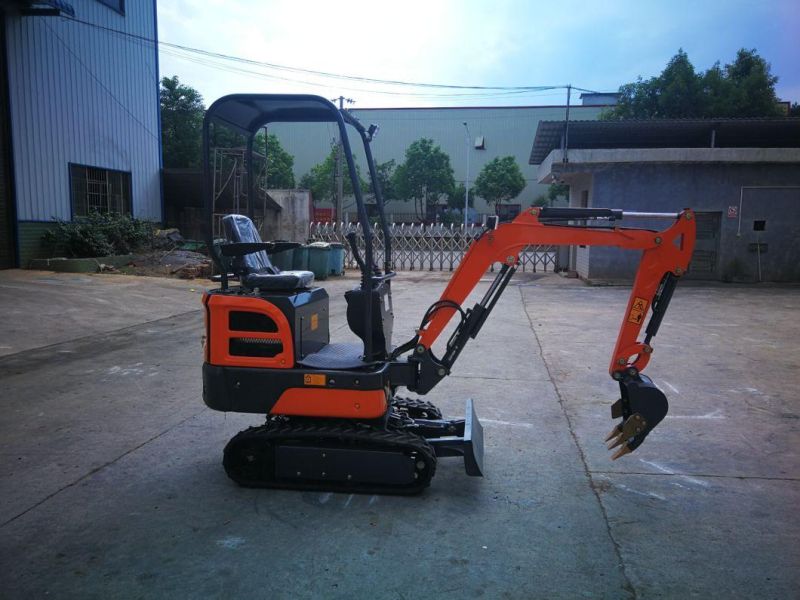

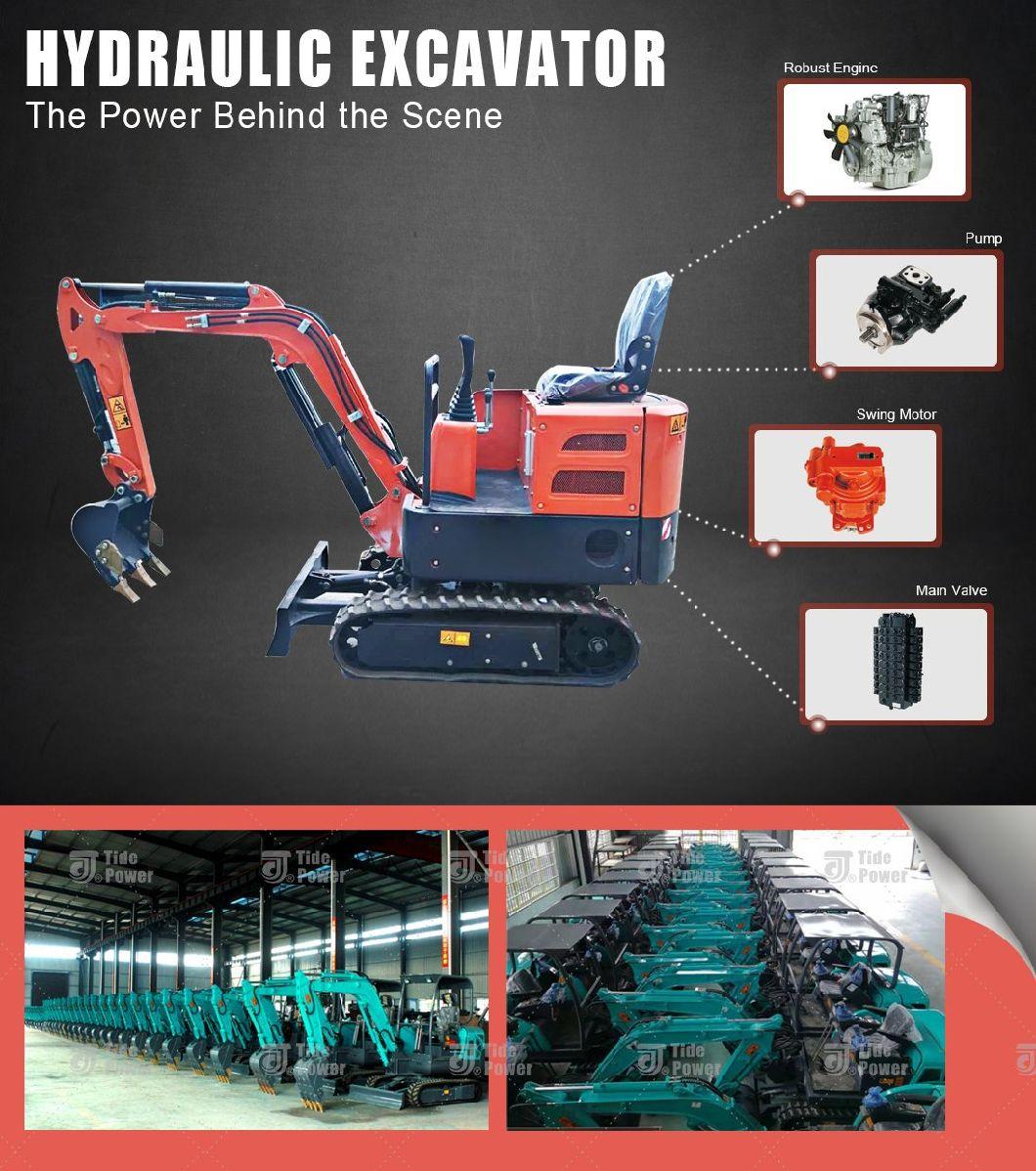

 High-quality Rubber And Steel Crawler CE Mini Excavator



We are a professional manufacturer of crawler mini excavators. Our mini excavator include 0.8t, 1.8t, 2t, 2.5t, 3t machines. Type: TD10, TD12, TD18U, TD20U, TD25U, TD30U
