• Model NO.：ZE360E
• Drive Type：Electric Drive
• Bucket Capacity：1.65 Cbm
• Size：Medium-Sized
• Certification：CE, ISO9001: 2000
• Condition：New
• Operating Weight：36800 Kg
• Rated Power：214,2100 Kw,Rpm
• Transport Package：Nude Packaged
• Specification：11265*3190*3425 mm
• Trademark：Zoomlion
• Origin：Hunan, China
• HS Code：8429521000
• Production Capacity：5000PCS,Year

 ItemUnitZE360EKey    ParameterWorking masskg3430034080Rated powerkw/rpm198/2000198/2000Standard bucket capacity(SAE)m31.61.6System    flow
     (Max. pressure/ Max. flow)-32.4/35.3    Mpa
     2×264 L/min32.4/35.3    Mpa
     2×264 L/minEngine model-Cummins
     6C8.3Cummins
     6C8.3Max. torqueN.m/rpm1157/15001157/1500Traveling speed (low/high)km/h3.1/5.13.1/5.1Slewing speedrpm9.69.6Gradeability°°35°35°Max.  drawbar pullkN264264Digging force of bucket (ISO)kN219219Digging force of stick (ISO)kN171171Basic    ParameterSlewing radius of tailmm34743474Tail lengthmm34533453Counterweight ground clearancemm11611161Min. ground clearancemm499499Ground contact lengthmm41404140Track lengthmm50425042Track gaugemm25902590Track widthmm31903190Track shoe widthmm600600Height of grousermm3636Slewing table widthmm29952995Operating    RangeMax. excavating radiusmm1107510262Max. excavating distancemm1088810059Max. excavating heightmm101709796Max. discharging heightmm71106705Max. excavating depthmm73806522Max. vertical excavating depthmm64105742Min. slewing radius of frontmm43904225

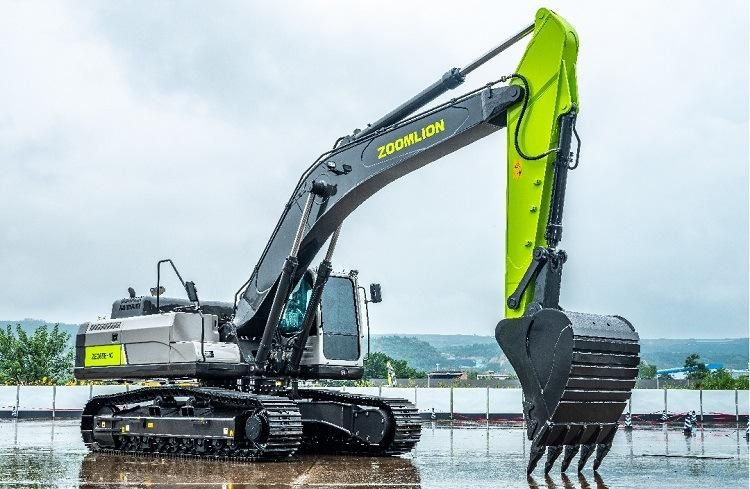

The power system of ZE360E Series excavator is equipped with original Cummins engine and electronic throttle device. It can automatically adjust fuel quantity according to the engine power, realizing automatic idle and acceleration and reducing fuel consumption. The advanced and reliable electrohydraulic control system and the new fully electronic control power selecting system provide different power modes according to different working loads, thus making the machine enjoy optimum performance with less fuel consumption and making the power of engine and main pump reach the optimal state. The dashboard display is provided with standard configuration of interface with six languages, such as Chinese, English, French, Russian, Spanish, Portuguese, etc, to meet demands of different countries and regions. Arm, bucket, track shoe, cab protection device and air filter system are provided with various configuration specifications suitable for different working conditions and operating environments So that users can make choices according to their demands. The machine enjoys powerful digging force and fast operating speed. This excavator is widely used in the medium-scale earthwork engineering, construction of roads and railways, house demolishment as well as hydraulic engineering like excavation of riverways and brooks.

ZE360ESP excavator is equipped with shorter boom, shorter arm, as well as advanced electrical system and hydraulic system. Its performance is stable and it can be equipped with an enlarged bucket. The machine enjoys powerful digging force and fast operating speed, This excavator is widely used in the medium-scale earthwork engineering and large-scale engineering of road and railway construction.

ZE360ELR excavator is equipped with extended boom and arm, widened track as well as advanced electrical system and hydraulic system. Its performance is stable and the excavating range is 15m. This excavator is widely used in the house demolishment and excavation of riverways and brooks.

ZE360E excavator for cold area is provided with automatic fuel preheating system, coolant heating boiler, start-up adjustment proportional solenoid valve, large-capacity battery resistant to low temperature, fuel-water separator with heating function, special controller system and seals of cold-resistant materials. It can work in -50°C low-temperature environment.

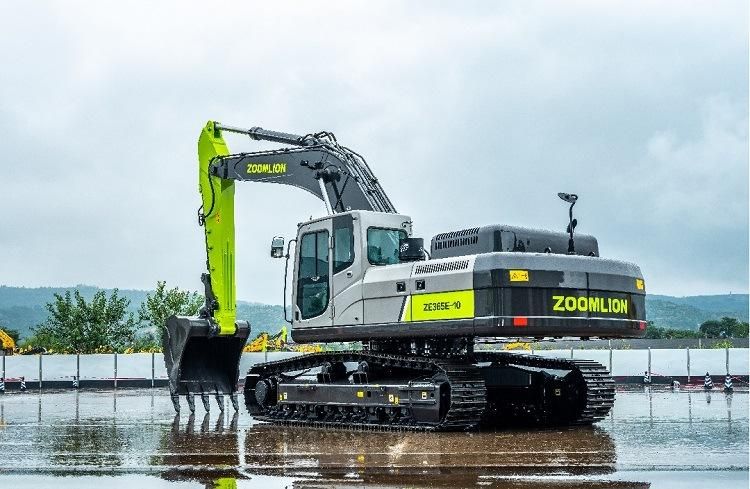

Product Images
