• Model NO.：SEM656D
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• Power：162kw
• Rated Operating Load：5000kg
• Bucket Capacities (M3)：2.7-4.5
• Rated Speed (R/Min)：2000
• Wheelbase (mm)：3300mm
• Breakout Force (Kn)：178kn
• Displacement：9.7L
• Specification：8176*3068*3440 mm
• Origin：China
• HS Code：8501109190
• Production Capacity：200

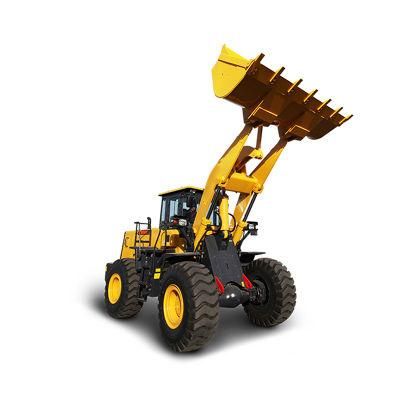

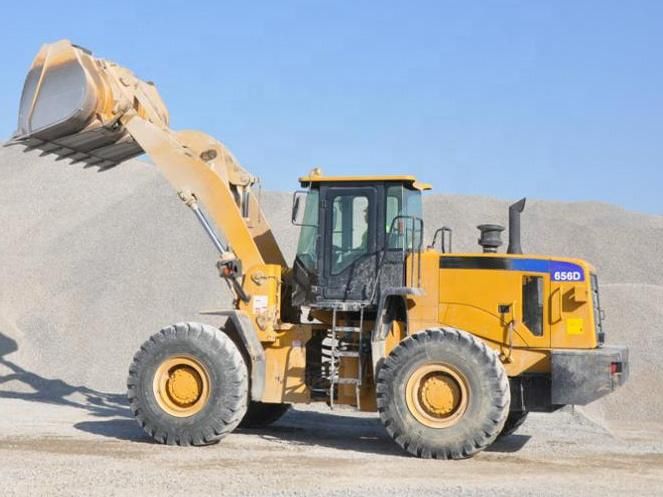

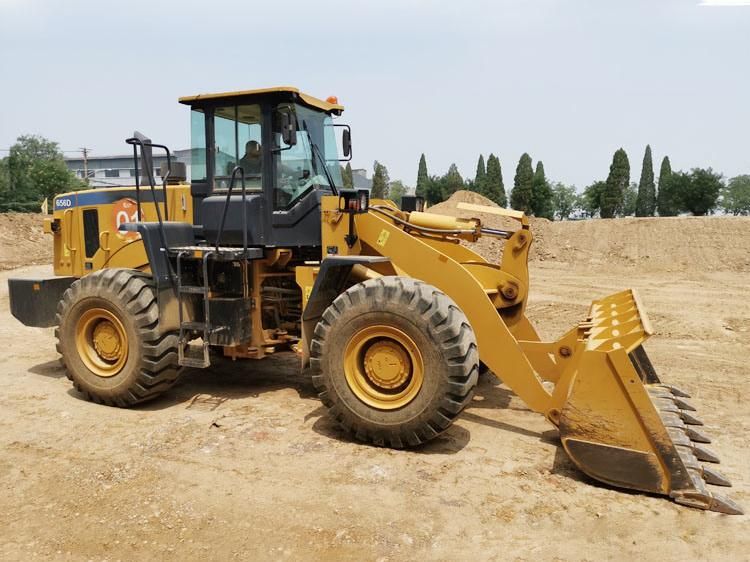

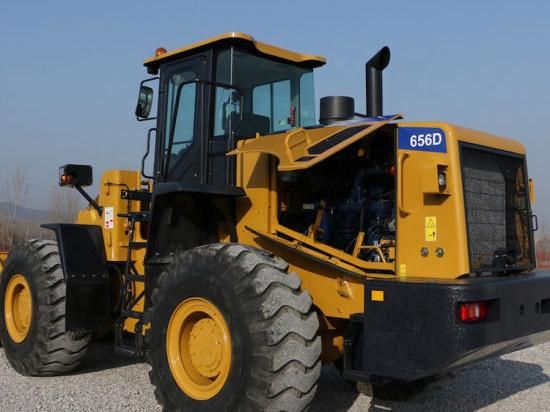

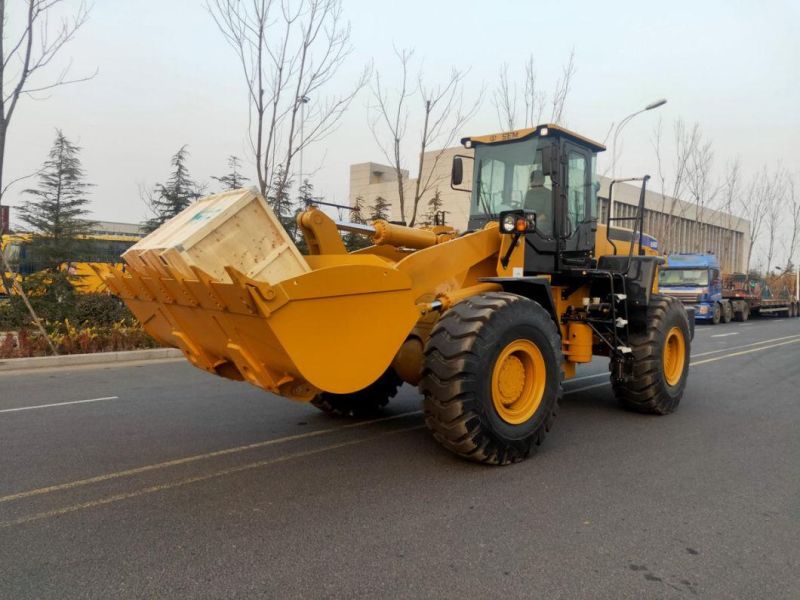

SPECIFICATIONS FOR 656D WHEEL LOADERRated Load(kg)5000Operating Weight(kg)16800Bucket Capacity(m³)2.7-4.5Wheelbase(mm)3300Overall Dimensions (mm)(L*W*H)8279*2963*3456Turning Radius(mm)6813Max. Breakout Force(KN)178Max. Tractive  Force(KN)168

TransmissionmodelTR200Transmission typefixed shaft power shift transmissiongear shiftF4/R4torque converter typeunipolar three element centripetal
Drive axleMain  drive typesingle screw speed reducerwheel reduction typeprimary planetary reducerswing angle(°)±11

Diesel enginemodelWP10G220E343rated power(KW)162rated speed(r/min)2000displacement(L)9.7

Hydraulic systemtypeQuantitative/variable double pump converging/diverter hydraulic systemboom lift time(s)5.1Hydraulic cycle time (Total)(s)9.3working pressure(MPa)18
brake system Service BrakeAir assisted oil disc type four wheel brakeParking Brake internal expansion

tireModel23.5-25typelow pressure wide base diagonal tirelayer16pattern typeL3
