Sem 190HP New Motor Grader with Front Dozer and Rear Ripper (SEM919)

Evangel Industrial (Shanghai) Co., Ltd.
  • After-sales Service：Provided
  • Warranty：Provided
  • Certification：TUV, UL, ISO, CE
  • Condition：New
  • Application：Railway, Mine, Farmland
  • Transmission：Hydraulic

Base Info

  • Model NO.：SEM919
  • Walking Mode：Wheeled
  • Color：Yellow
  • Weight：15t
  • Transport Package：Main Machine Nude
  • Specification：20days delivery after down payment paid
  • Trademark：SEM
  • Origin：Jiangsu Province
  • HS Code：84292090
  • Production Capacity：30sets, Month

Description

Basic Info.

Model NO. SEM919 Walking Mode Wheeled Color Yellow Weight 15t Transport Package Main Machine Nude Specification 20days delivery after down payment paid Trademark SEM Origin Jiangsu Province HS Code 84292090 Production Capacity 30sets/ Month

Product Description

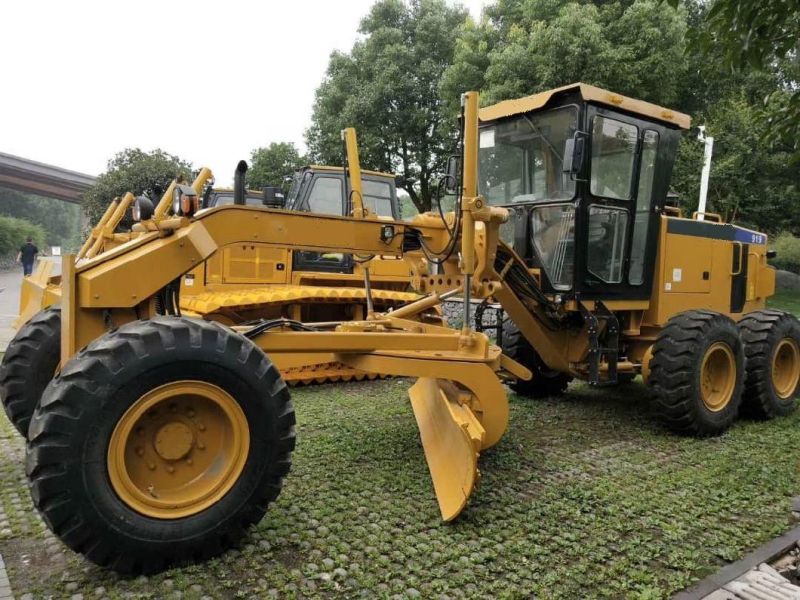

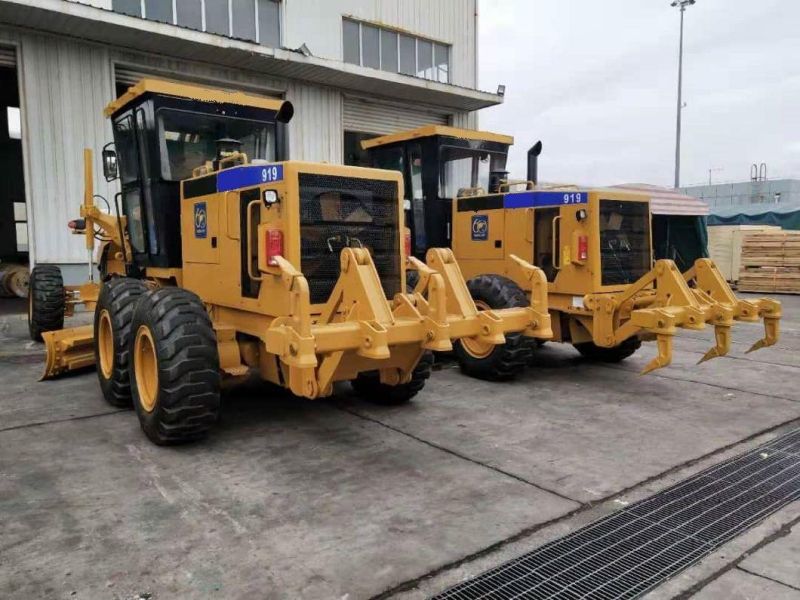

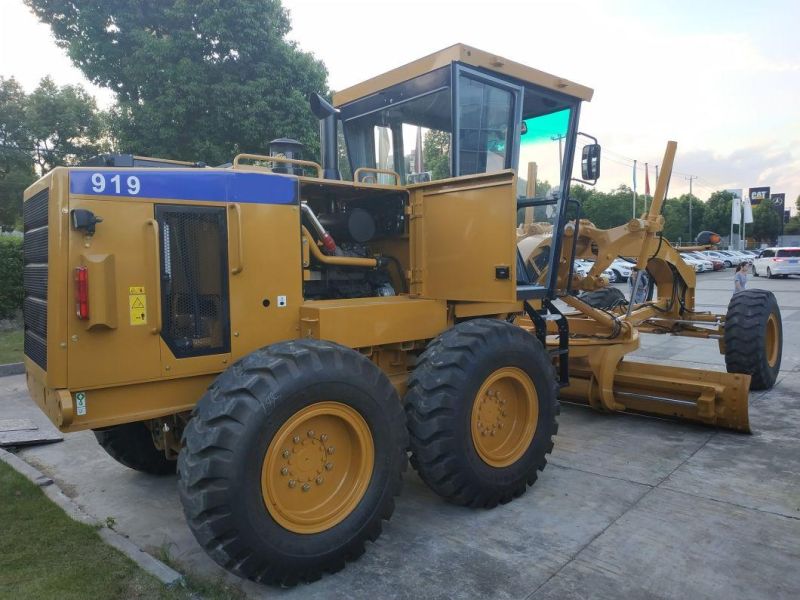

SEM 190HP new motor grader with front dozer and rear ripper (SEM919)

SE-M Tandem Axle
Leveraging CA-Terpillar designing and experience on MG tandem axle
Improved bearing Layout and optimized load distribution with 4 planetary gears final drive
Less down time and reduced labor and service cost for maintenance and repairing
Longer service interval for lubriCA-Tion oil change
Leading in class manufacturing and quality control level, mandatory performance testing before delivering to MG as SE-Mbly line

Control System
7 position link bar with electric over hydraulic control allows ease of operation from within the cab
Optimum blade reach capability, quick DCM re-positioning for greater reach for better working on high bank side slope
The link bar is essential for extending reach capability when cutting a bank slope or back slope of a ditch
Replaceable bushings reduce service time and cost

Blade Float
Standard blade float function allows blade to lower without hydraulic pressure for increased versatility
Blade float is engaged by pushing the left and right cylinder controls all the way forward past the detent
Provides protection for machine and pavement during snow removal and snow plowing

Operating Weight

15,930 kg

Engine Model

SDEC SC9D220G2

Rated Power

162 kW/217 hp

Overall Dimensions L*W*H

8854x2630x3360 mm

Blade Length

4,279 mm

Max. Drawbar

85 kN

Max. Lift above Ground (Blade)

475 mm

Max. Depth of Cut (Blade)

715 mm

Max. Blade Tip - Forward

40º

Max. Blade Tip - Rear

5º

Front Axle Steering Angle Left/Right

47.5º

Min. Turning Radius

7.8 m

Tandem Oscillation (Front up)

15º

Tandem Oscillation (Rear up)

25º

Transmission Model

Hangchi 6WG180

Gears

F6/R3

Tires

17.5-25
