• Model NO.：road roller
• Travel Speed：35cm,s
• Centrifugal Force：40KN
• Certification：CE, ISO 9001:2000
• Condition：New
• Operating Weight：16000kg
• Transport Package：Roro
• Specification：CE
• Trademark：super-above
• Origin：Jiangsu, China
• HS Code：8705109100
• Production Capacity：1000PCS,Year

Basic Info.

Model NO. road roller Travel Speed 35cm/s Centrifugal Force 40KN Certification CE, ISO 9001:2000 Condition New Operating Weight 16000kg Transport Package Roro Specification CE Trademark super-above Origin Jiangsu, China HS Code 8705109100 Production Capacity 1000PCS/Year

Product Description

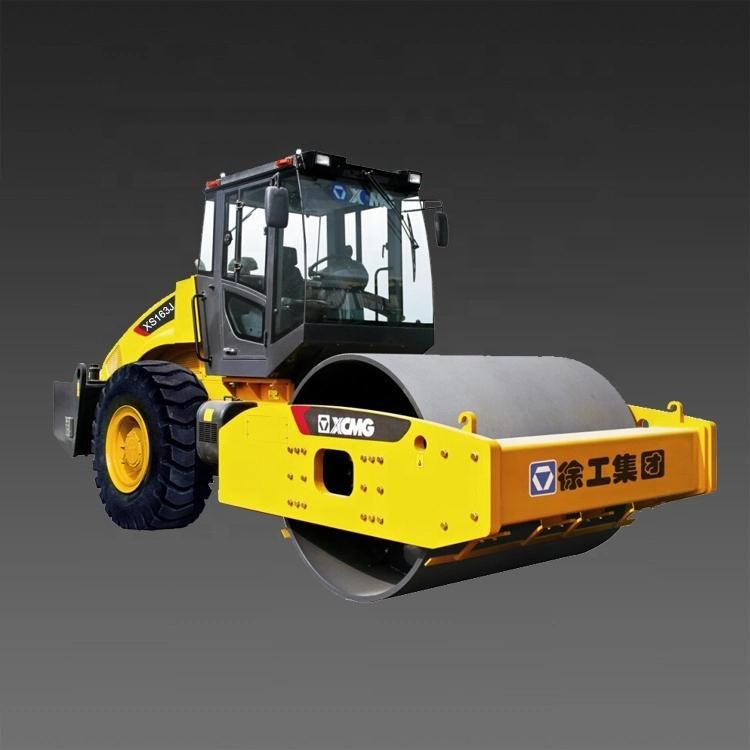

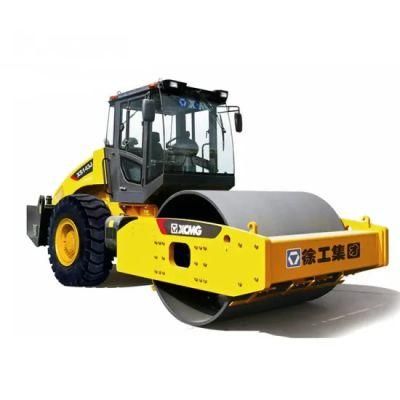

16ton Mechanical Single Drum Vibratory Compactor, Road Roller XS163J

XS163Jvibratory compactor is a kind of heavy duty self-propelled vibratory compactor. It can effectively compact various soil layers and rock fill, and can be applied to the constructions of modern freeways, airports, embankment fill, ports, dams, railways, mines, etc

Features of road roller
1. Reliable and durable hydraulic system
The standard configuration includes imported open gear pump and motor. The optional configuration includes closed hydraulic vibration system, imported piston pump, motor (16t, 18t). All those have a long service life, supplying stable start-oscillation and oscillation stop and high compacting quality.

2. Energy-saving and environmental friendly power
Shanghai Diesel Engine 114 series water-cooled engine has low noise, meeting the emission standard of European I. The maintenance-free battery can be started easily and work smoothly in low temperature.

3. High efficient and reliable vibratory compacting system
Unique drum structure features good rigidity and intensity. The bearing adopts short cylindrical bearing, featuring high rotary speed limit and strong bearing capacity. The left vibration chamber and right vibration chamber are symmetrical, avoiding the polarization of the drum.
The vibratory bearing can be lubricated when the compactor travels, which is simple and convenient, ensuring a quite low lubricating system failure rate.
Adopt the numerical control blanking, numerical control plate rolling, numerical control bender, and numerical control horizontal machining center to ensure the precision of the whole machining.

4. Optional configuration
The integral convex block drum, split convex block drum, and the cab with air conditioning.

5. Convenient maintenance
The engine cover is easy to open, and the opening angle is large, which make the maintenance part accessible.
The high positioned air intake prolongs the maintenance interval of the air filter.

Specifications of road roller

Model	Unit	XS163J
Operating weight	kg	16000
Load applied on front drum	kg	7700
Static linear load	N/cm	362
Speed range	km/h	F/R
Gear I	km/h	2.85/2.88
Gear II	km/h	5.08/5.02
Gear III	km/h	11.17/-
Theoretical gradeability	%	30
Min. outer turning radius	mm	6500
Steering angle	°	±30
Swing angle	°	±11
Vibration frequency	Hz	28
Nominal amplitude (high/low)	mm	1.9/0.95
Exiting force (high/low amplitude)	kN	290/145
Engine model		Shanghai Diesel Engine SC4H140.192
Type		/
Max. power	kW	103
Hydraulic tank capacity	L	170
Fuel tank capacity	L	310
