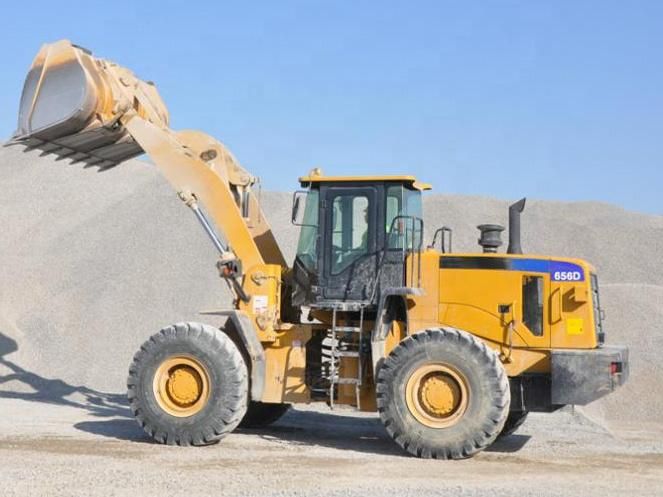

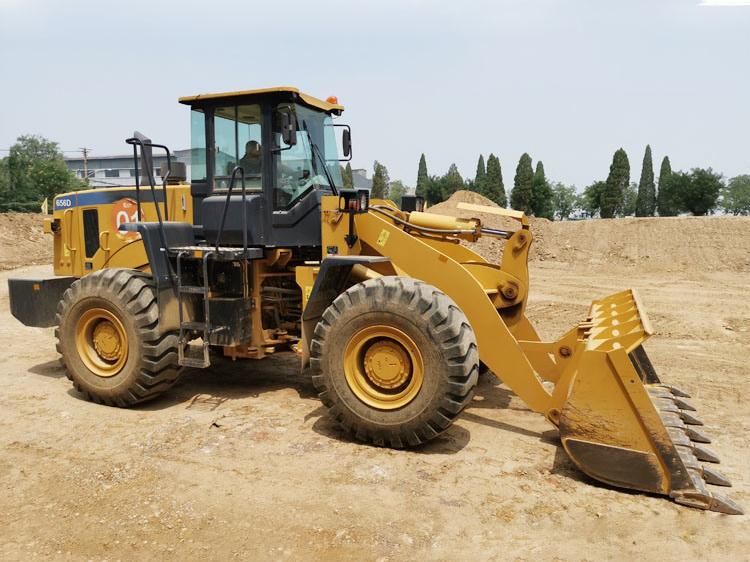

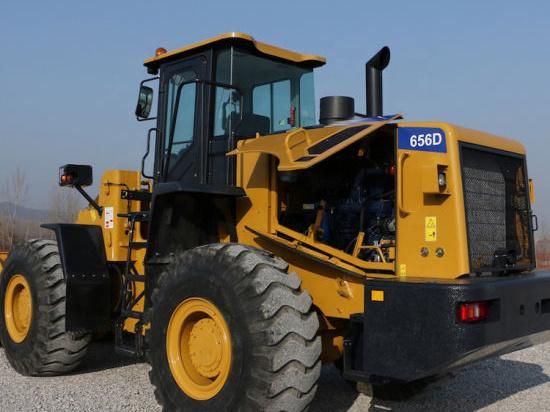

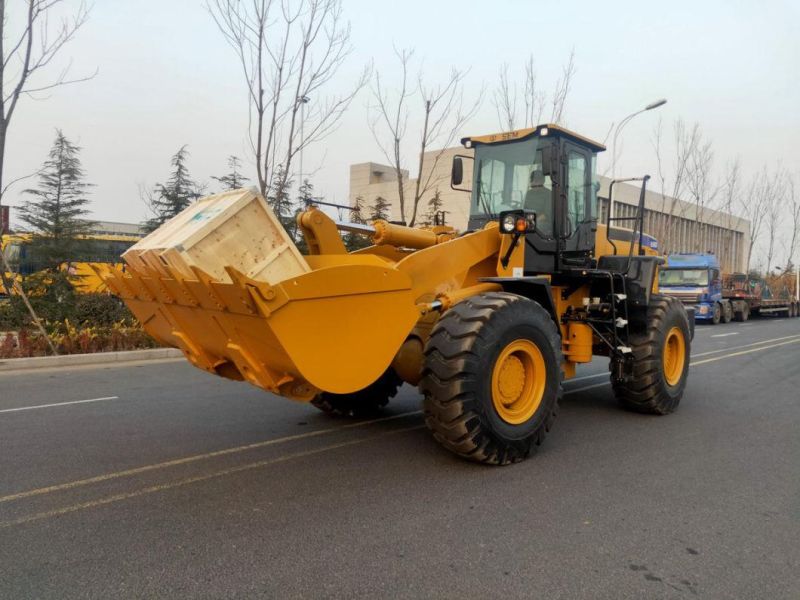

China 5 Ton Wheel Loader Compact Small Wheel Loader with Tipping Cabin 656D

Evangel Industrial (Shanghai) Co., Ltd.
  • After-sales Service：Online Service
  • Warranty：1 Year
  • Certification：ISO, CE
  • Condition：New
  • Rated Load：3-6t
  • Transmission：Hydraulic

Base Info

  • Model NO.：656D
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled
  • Type：Small Loader
  • Power：162kw
  • Rated Operating Load：5000kg
  • Bucket Capacities (M3)：2.7-4.5
  • Rated Speed (R/Min)：2000
  • Wheelbase (mm)：3300mm
  • Breakout Force (Kn)：178kn
  • Specification：8176x3068x3440 mm
  • Origin：China
  • HS Code：8501109190
  • Production Capacity：200

Description

SPECIFICATIONS FOR 656D WHEEL LOADERRated Load(kg)5000Operating Weight(kg)16800Bucket Capacity(m³)2.7-4.5Wheelbase(mm)3300Overall Dimensions (mm)(L*W*H)8279*2963*3456Turning Radius(mm)6813Max. Breakout Force(KN)178Max. Tractive  Force(KN)168

TransmissionmodelTR200Transmission typefixed shaft power shift transmissiongear shiftF4/R4torque converter typeunipolar three element centripetal
Drive axleMain  drive typesingle screw speed reducerwheel reduction typeprimary planetary reducerswing angle(°)±11

Diesel enginemodelWP10G220E343rated power(KW)162rated speed(r/min)2000displacement(L)9.7

Hydraulic systemtypeQuantitative/variable double pump converging/diverter hydraulic systemboom lift time(s)5.1Hydraulic cycle time (Total)(s)9.3working pressure(MPa)18
brake system Service BrakeAir assisted oil disc type four wheel brakeParking Brake internal expansion

tireModel23.5-25typelow pressure wide base diagonal tirelayer16pattern typeL3Prouuct Information
