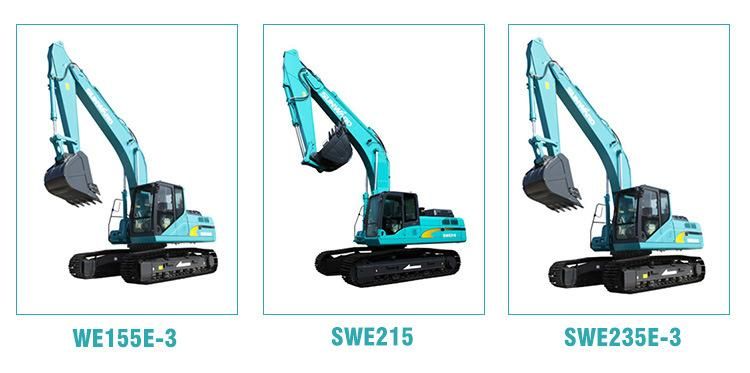

• Model NO.：SWE215F
• Size：7815X2600X2825 mm
• Certification：ISO9001
• Condition：New
• Hydraulic Cylinder Brand：Kyb
• Maxdiggingheight：8630mm
• Power：84kw,2200rpm
• Warranty：2 Years
• Enginebrand：Isuzu
• Rated Speed：5.4,Km,H
• Hydraulictank：150L
• Maximum Digging Height：8630mm
• Applicable Industries：Manufacturing Plant
• Wheelbase：3000mm
• Unique Selling Point：Low Fuel Consumption
• Maximum Digging Depth：5640mm
• Max Digging Radius：8355
• Operating Weight：14.8t
• Engine Brand：Isuzu
• Specification：14.8t
• Trademark：SUNWARD
• Origin：Hunan, China
• Production Capacity：100000 Set,Sets Per Year

Size(L×W×H)9570×2800×2970 mm

Outline dimension

A)Wheel-base3465mmB)Crawler length4260mmC)Ground clearance of platform1060mmD)Tail slewing radius of platform2750mmE)Width of upper body2710mmF)Gauge2200mmG)Chassis width2800mmH)Track width600mmI)Chassis ground clearance478mmJ)Cab roof height2970mmK)Transport boom height2945mmL)Transport length9570mm

Operating range

a)Max.digging height9750mmb)Max.dumping height6980mmc)Max.digging depth6750mmd)Max. vertical digging depth5900mme)Max.digging radius9940mmf)Max.digging reach at ground level9775mm

Performance parameters

Operating weight(steel track)21.8tStandard bucket capacity1.0m3Bucket digging force155kNBucket rod digging force110kNTravel speed(Max./Min.)5.2/3.3 km/hGround pressure46kPaSwing speed11.8rpmEngineBrandCumminsModelQSB6.7Type

Direct injection, 4-stroke, water-cooled, turbocharged,

intercooled

Power129kW/2000rpmDisplacement6.7L

Oil tank capacity

Fuel tank385LHydraulic tank290L
