Shantui Motor Grader 15 Ton Graders for Sale China Motor Grader Sg16-3
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：Available
- Warranty：2 Years
- Certification：CE
- Condition：New
- Transmission：Hydraulic
- Walking Mode：Wheeled
Base Info
- Model NO.：SG16-3
- Type：Medium-sized Grader
- Transport Package：Nude Package
- Specification：8726*2600*3400mm
- Trademark：shantui
- Origin：China
- HS Code：8429510000
- Production Capacity：100untis,Month
Description
Basic Info.
Model NO. SG16-3 Type Medium-sized Grader Transport Package Nude Package Specification 8726*2600*3400mm Trademark shantui Origin China HS Code 8429510000 Production Capacity 100untis/MonthProduct Description
Various brands and prices available, just send me inquiry, product list will be offered!!!

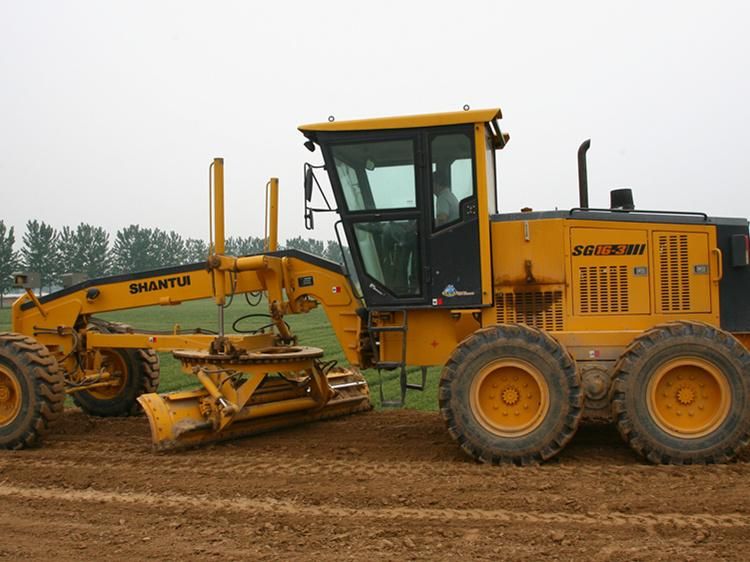

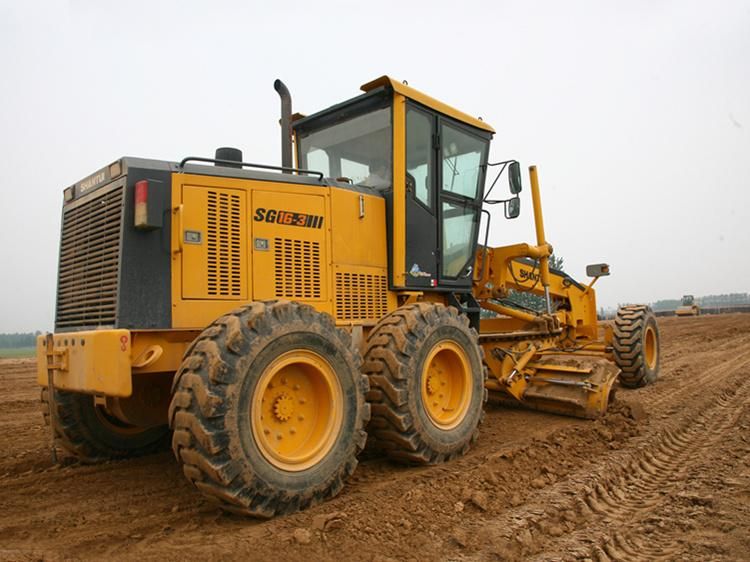

SHANTUI Motor Grader 15 Ton Graders For Sale China Motor Grader SG16-3
SpecificationPower System
- It's powered by Dongfeng 6BTAA5.9-C160 China-II compliant inline, 4-stroke, direct injection, water-cooled, and turbocharged and intercooled diesel engine, featuring compact structure, stable performances, and high efficiency and energy-saving.
- The high torque reserve enables the machine to output stable power under severe working conditions and meet your working needs.
- The high-grade full-sealed luxury cab with full visual field and the high-efficiency shock-absorbing seat maximize the operating comfort.
- The cab and the main frame are connected by shock absorber to ensure the operating safety and reliability.
- With 6 forward gears and 3 reverse gears, the electro-hydraulically controlled power shift transmission can select the optimal gear based on the working road condition to realize the best match between traveling and operation.
- The integral three-segment drive axle is built internally with imported no-spin automatic limited slip differential to guarantee stable and reliable drive.
- The balance box is capable of 15° angular swing in vertical direction and the heavy-duty roller chain drive guarantees better terrain adaptability of the machine. It can meet the normal operations under special road conditions, featuring stable power output and strong drive force.
- It features the highest traction force among the domestic motor graders of like type and the highest operating efficiency among the domestic products of like type.
- The external gear working device of proprietary technology features high drive torque and strong resistance against external force impact.
- The blade of larger angular adjustment range (44°-91°) improves the material control capability and remarkably promotes the operating efficiency of motor grader, especially during the handling of dry material and clay.
- With full-load scraping capability in 2nd forward gear, the motor grader can remarkably promote the production efficiency compared with domestic products of like type.
- With high resistance against external force impact, the link type swing frame is applicable for the working conditions with high operating volume and severe operating environment.
- The hydraulic pin puller cylinder can complete the operations of swing frame by merely one operator to eliminate all potential safety hazards and ease user's operations.
- The structural parts inherit the excellent quality of Shantui mature products.
- The electric harnesses adopt seamless corrugated pipes and deconcentrators for branching, featuring high protection grade.
- The maintenance-free battery installed on the rear of the machine features high power capacity.
- The core electric and hydraulic parts adopt imported products, featuring stable and reliable quality and extremely high reliability.
| Product name | SG16-3 |
| Performance parameters | |
| Operating weight of machine (kg) | 15100 |
| Wheelbase (mm) | 6260 |
| Wheel tread (mm) | 2155 |
| Minimum ground clearance (mm) | 430 |
| Steering angle of front wheels (°) | ±45 |
| Articulated steering angle (°) | ±25 |
| Maximum traction force (kN) | 79.3(f=0.75) |
| Turning radius (mm) | 7,800 (Outer side of front wheel) |
| Maximum gradeability (°) | 20 |
| Width of shovel blade (mm) | 3660 |
| Height of shovel blade (mm) | 635 |
| Blade slewing angle (º) | 360 |
| Blade cutting angle (º) | 37-83 |
| Maximum digging depth of blade (mm) | 500 |
| Length (mm) | 8726 |
| Width (mm) | 2600 |
| Heigh (mm) | 3400 |
| Engine | |
| Engine model | 6BTAA5.9-C160 |
| Emission | China-II |
| Type | Mechanical direct injection |
| Rated power/rated speed (kw/rpm) | 118kW/2200 |
| Drive system | |
| Torque converter | Single-stage single-phase three-element |
| Transmission | Countershaft power shift |
| Gears | Six forward and three reverse |
| Speed for forward gear I (km/h) | 5.4 |
| Speed for forward gear II (km/h) | 8.4 |
| Speed for forward gear III (km/h) | 13.4 |
| Speed for forward gear IV (km/h) | 20.3 |
| Speed for forward gear V (km/h) | 29.8 |
| Speed for forward gear VI (km/h) | 39.6 |
| Speed for reverse gear I (km/h) | 5.4 |
| Speed for reverse gear II (km/h) | 13.4 |
| Speed for reverse gear III (km/h) | 29.8 |
| Brake system | |
| Service brake type | Hydraulic brake |
| Parking brake type | Mechanical brake |
| Brake oil pressure (MPa) | 10 |
| Hydraulic system | |
| Working pump | Constant displacement gear pump, with flow at 28ml/r |
| Operating valve | Integral multi-way valve |
| Pressure setting of safety valve (MPa) | 16 |
| Pressure setting of safety valve (MPa) | 12.5 |
| Filling of fuel/oils/fluids | |
| Fuel tank (L) | 340 |
| Working hydraulic fuel tank (L) | 110 |
| Transmission (L) | 28 |
| Drive axle (L) | 25 |
| Balance box (L) | 2X38 |
