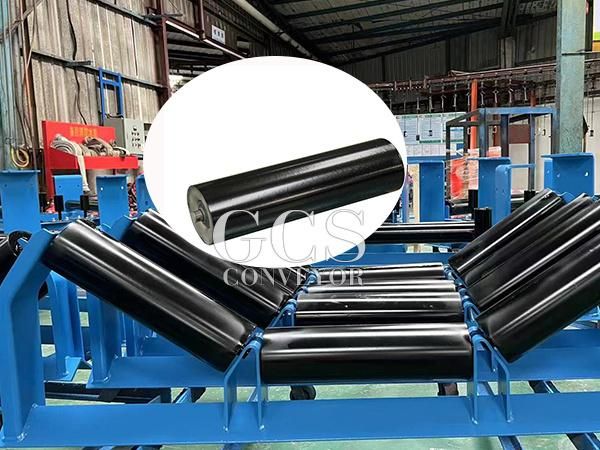

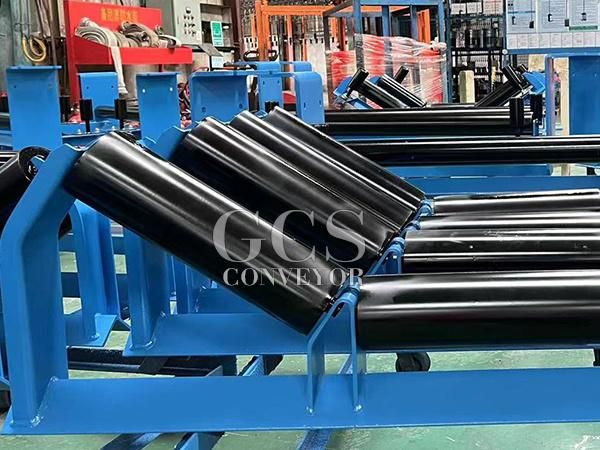

Gcs Black Painting Conveyor Roller for Electricity Industry
Global Conveyor Supplies Company Limited- Type：Bearing
- Application：Tunnel Boring Machine
- Certification：CE, ISO9001: 2000
- Specification：Order Production
- Trademark：GCS
- Origin：China
Base Info
- HS Code：84313900
- Production Capacity：100000PCS Per Year
Description
φ89, φ102, φ108, φ114, φ127, φ133, φ139, φ152, φ159, φ165, φ194Length 145mm-2200mm Tube Q235(GB), Q345(GB), welded with DIN2394 standed Shaft A3 and 45# steel(GB), SS304 Bearing Single & Double Row Deep Groove Ball Bearing 2RS&ZZ with C3 clearance Bearing Housing/Seat Cold press working fit ISO M7 accuracy
Deep Press steel with raw material fit DIN 1623-1624 standard Lubricating Oil Grade 2 or 3 long-lasting lithium greasae Welding Mixed gas shielded arc welding end Painting Ordinary painting, hot galvanized painting, electric static spraying painting, baked painting
Main Features
1) Solid design, suitable for heavy lifting.
2) The bearing housing and steel tube are assembled and welded with a concentric automatic.
3) Cutting of the steel tube and bearing is performed with the use of a digital auto device/machine/equipment..
4) The bearing end is constructed to ensure that the roller shaft and bearing can be firmly connected.
5) Fabrication of the roller is effected by an auto device and 100% tested for its concentricity.
6) Roller and supporting components/materials are manufactured to DIN/ AFNOR/ FEM/ ASTM/ CEMA standard.
7) The casing is manufactured with highly composite, anti corrosive alloy.
8) The roller is lubricated and free from maintenance.
9) Woring life expectancy is up to 30,000 hours or more, depending on usage.
10)Vacuum sealed which has withstood anti water, salt, snuff, sandstone and dust proof experiments
Related Products
Testing Machines
Certifications
Our Service

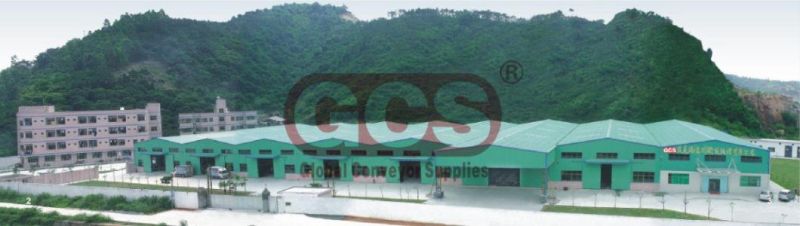

Our Company
Deep Press steel with raw material fit DIN 1623-1624 standard
Main Features
1) Solid design, suitable for heavy lifting.
2) The bearing housing and steel tube are assembled and welded with a concentric automatic.
3) Cutting of the steel tube and bearing is performed with the use of a digital auto device/machine/equipment..
4) The bearing end is constructed to ensure that the roller shaft and bearing can be firmly connected.
5) Fabrication of the roller is effected by an auto device and 100% tested for its concentricity.
6) Roller and supporting components/materials are manufactured to DIN/ AFNOR/ FEM/ ASTM/ CEMA standard.
7) The casing is manufactured with highly composite, anti corrosive alloy.
8) The roller is lubricated and free from maintenance.
9) Woring life expectancy is up to 30,000 hours or more, depending on usage.
10)Vacuum sealed which has withstood anti water, salt, snuff, sandstone and dust proof experiments
Related Products
About roller,we can make gravity conveyor roller,steel conveyor roller,driving roller,light middle duty conveyor roller,o-belt tapered sleeve roller,gravity tapered roller,polymer sprocket roller and so on.More details,please contact us.
