LGP400/700/80DPL-D Grout/Inject Station used to be made bentonite slurry, cement slurry

Zhengzhou Lead Equipment Co., Ltd.
  • After-sales Service：Yes
  • Warranty：12 Months
  • Type：Grouting
  • Machining Process：Hydraulic
  • Productivity：1100L,Min
  • Certification：ISO9001: 2000, CE, SGS

Base Info

  • Model NO.：LGP400,700,80DPL-D
  • Condition：New
  • Color：Yellow
  • Grout Station model：LGP400,700,80DPL-D
  • Weight：1820kg
  • Power：27KW@1800rpm
  • Mixer Capacity：400L
  • Recycling discharge：1100L,min
  • Agitator Capacity：700L
  • Rated Rev：36rpm
  • Output/pressure：80L,min@5Mpa
  • Diameter：85mm
  • Stroke：220mm
  • Cycles：38 times,min
  • Transport Package：Nude Package or According to Customer Requirement
  • Specification：2400*2150*1700mm
  • Trademark：Leadcrete
  • Origin：China
  • HS Code：8413509090
  • Production Capacity：15sets,Month

Description

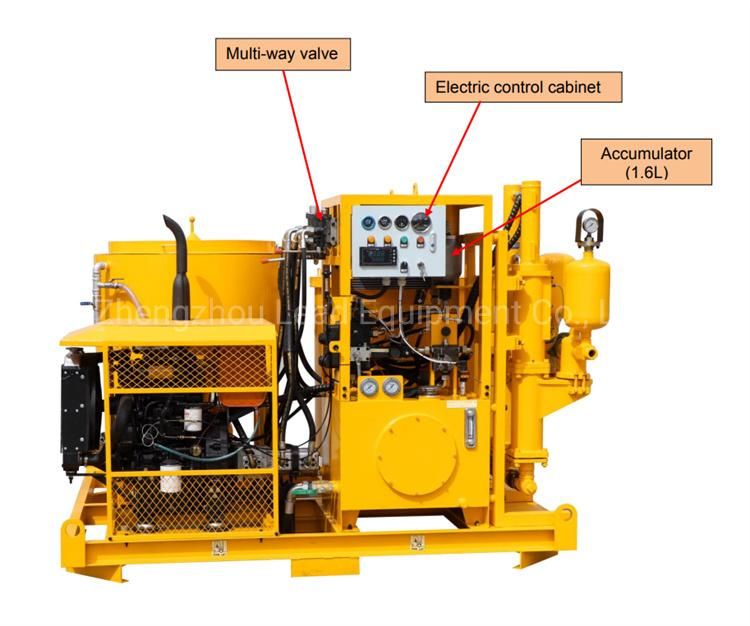

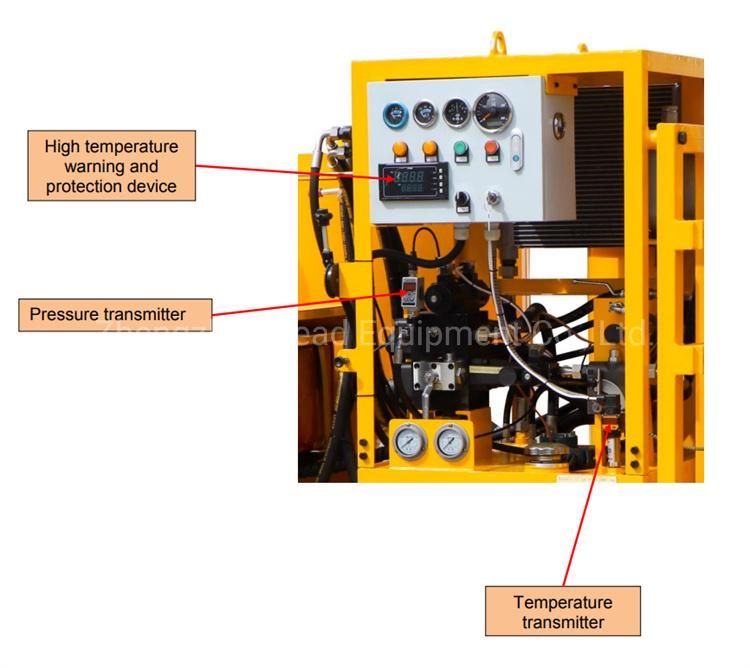

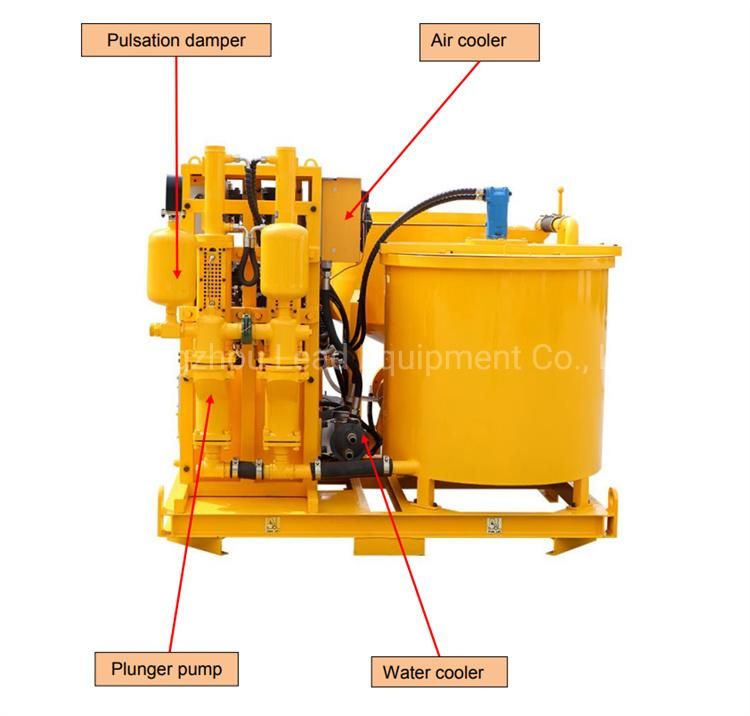

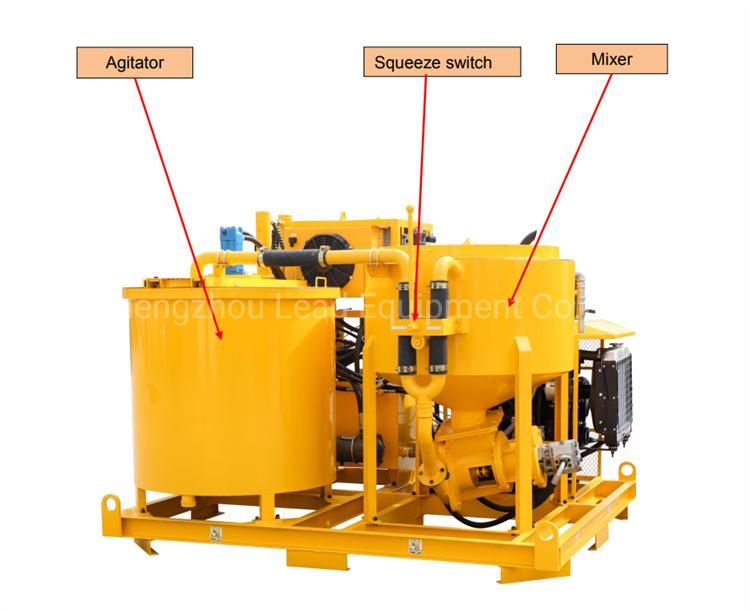

We could also customize it according to your demands. Detailed Images:

LGP400/700/80DPL-D Grout/Inject Station used to be made bentonite slurry, cement slurry

LGP400/700/80DPL-D Grout/Inject Station used to be made bentonite slurry, cement slurryLGP400/700/80DPL-D Grout/Inject Station used to be made bentonite slurry, cement slurry

LGP400/700/80DPL-D Grout/Inject Station used to be made bentonite slurry, cement slurry

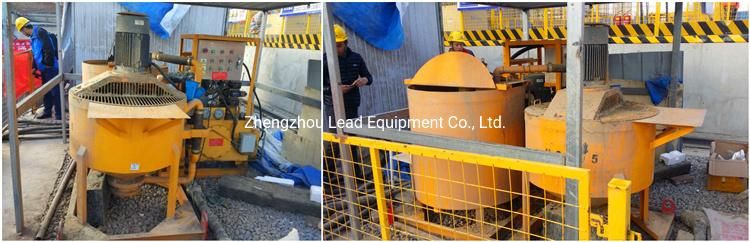

Application:

Civil engineering - dam, tunnel, subway, mine, soil nailing wall, curtain, anchor, cable trench, and anchor grouting;

Building structure - building and bridge repair, foundation reinforcement, slope support, soil compaction, terry grouting;

Engineering - underwater foundation, offshore platform, coast foundation grouting reinforcement

Mine application - roadway reinforcement, backfill, waterproof grouting.

Acted as a grouting plant in the Pipe Jacking Machine
LGP400/700/80DPL-D Grout/Inject Station used to be made bentonite slurry, cement slurry

Company Information:
LGP400/700/80DPL-D Grout/Inject Station used to be made bentonite slurry, cement slurry
LGP400/700/80DPL-D Grout/Inject Station used to be made bentonite slurry, cement slurry
LGP400/700/80DPL-D Grout/Inject Station used to be made bentonite slurry, cement slurry


We have many kinds of grouting equipment for your reference, in order to recommend you more suitable models grouting equipment, please let us know clearly about your requirements:

1. what project will you do with grouting equipment? for dam, foundation treatment or micropile,etc?

2. what is the output and pressure of the pump?

3. what is water cement ratio?

4. which engine do you prefer? electric motor or diesel engine?

if you want to know more about our grouting equipment, please feel free to contact with me.
