• Model NO.：WZ18-16
• Type：Large Loader
• Bucket Capacity：0.8m3, 0.16m3
• Operating Weight：5300kg
• Dumping Height：2700mm
• Dumping Reach：1160mm
• Max. Digging Depth：2500mm
• Max. Digging Radius：4500mm
• Max. Breakout Force：25kn
• Min. Turning Radius：4600mm
• Total Cycling Time：Less Than 10s
• Transport Package：1 Unit Naked Within 1 X 40hq Container
• Specification：6000*1860*3000mm
• Trademark：CHHGC
• Origin：Shandong China
• HS Code：8803900090
• Production Capacity：6000 Units,Year

Basic Info.

Model NO. WZ18-16 Type Large Loader Bucket Capacity 0.8m3, 0.16m3 Operating Weight 5300kg Dumping Height 2700mm Dumping Reach 1160mm Max. Digging Depth 2500mm Max. Digging Radius 4500mm Max. Breakout Force 25kn Min. Turning Radius 4600mm Total Cycling Time Less Than 10s Transport Package 1 Unit Naked Within 1 X 40hq Container Specification 6000*1860*3000mm Trademark CHHGC Origin Shandong China HS Code 8803900090 Production Capacity 6000 Units/Year

Product Description

Multiple Function TLB Front Bucket Loader Backhoe



Features

* Famous engine brand options, large torque backup and strong power.
* Single stage, 4 elements, twin turbo torque converter and planetary gearbox, compact structure and high reliability.
* Gear-shift with 2 forward and 1 reverse controlled by joystick.
* Strengthened axles owning large bearing capacity and high reliability.
* Twin pump merging hydraulic system makes lower consumption and excellent performance.
* The coaxes flow-amplified, hydraulic compensated steering makes operation easy and performance reliable.
* Both travel system and working hydraulic system are forced-cooled, improving the efficiency obviously.
* Air over hydraulic brake system; eight caliper disc brakes.
* Air break control, expand hoof type parking brake and emergency brake.
* Working device with automatically leveling ability at high position.
* Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.
* Integral, luxury instrument board.
* New, luxury cabin


Main Specifications


Item	Specification	Item	Specification
Loader bucket capacity	0.8m³	Digger bucket capacity	0.16m³
Rated load	1360kg	Rated load	272kg
Dumping height	2700mm	Digging depth	2500mm
Dumping reach	1160mm	Digging radius	4500mm
Total cycling time	<10s	Slewing angle	±85°
Min. turning radius	4600mm	Wheel base	1950mm
Max. breakout force	25KN	Wheel tread	1850mm
Engine model	Xinchai498BG-519	Tyre	20.5-16
Rated power	45kW/2200rpm	Overall dimensions	6000*1860*3000mm
Max. grade ability	25°	Operating weight	5300kg

Remark: Heavy standard chassis

Optional:
(1) Xichai 4DW92 turbocharged engine
(2) Kohler KDI1903 engine
(3) Yanmar 4TNE98
(4) Grass fork
(5) Wood grapple
(6) Fork
(7) 4-in-1 bucket

Others:
(1) Packing: 1 unit naked within 1 x 40HQ container
(2) Delivery time: 40 days
(3) Guarantee Period: One year


Our Products

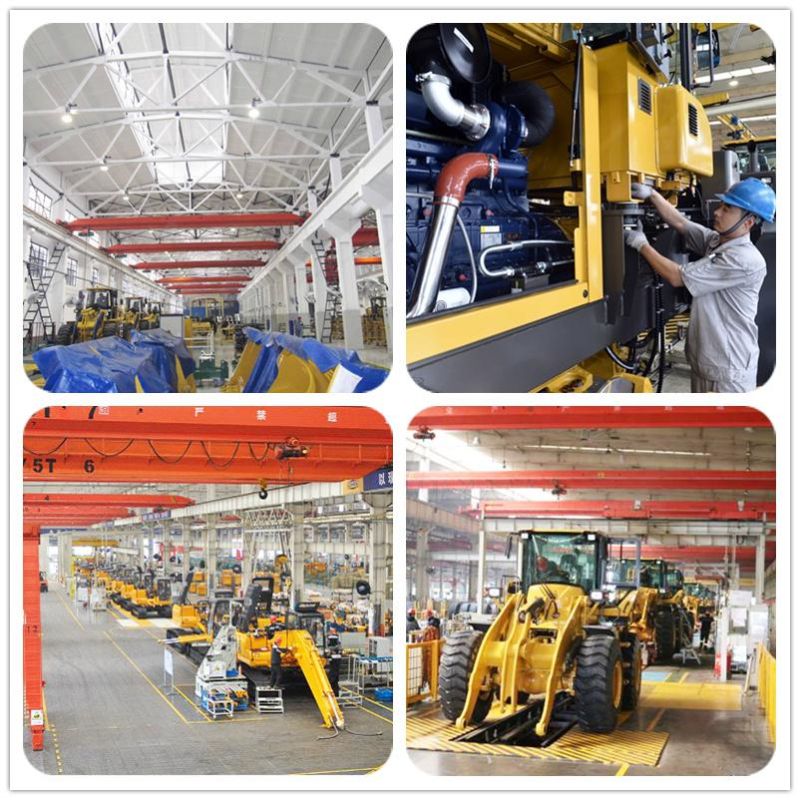

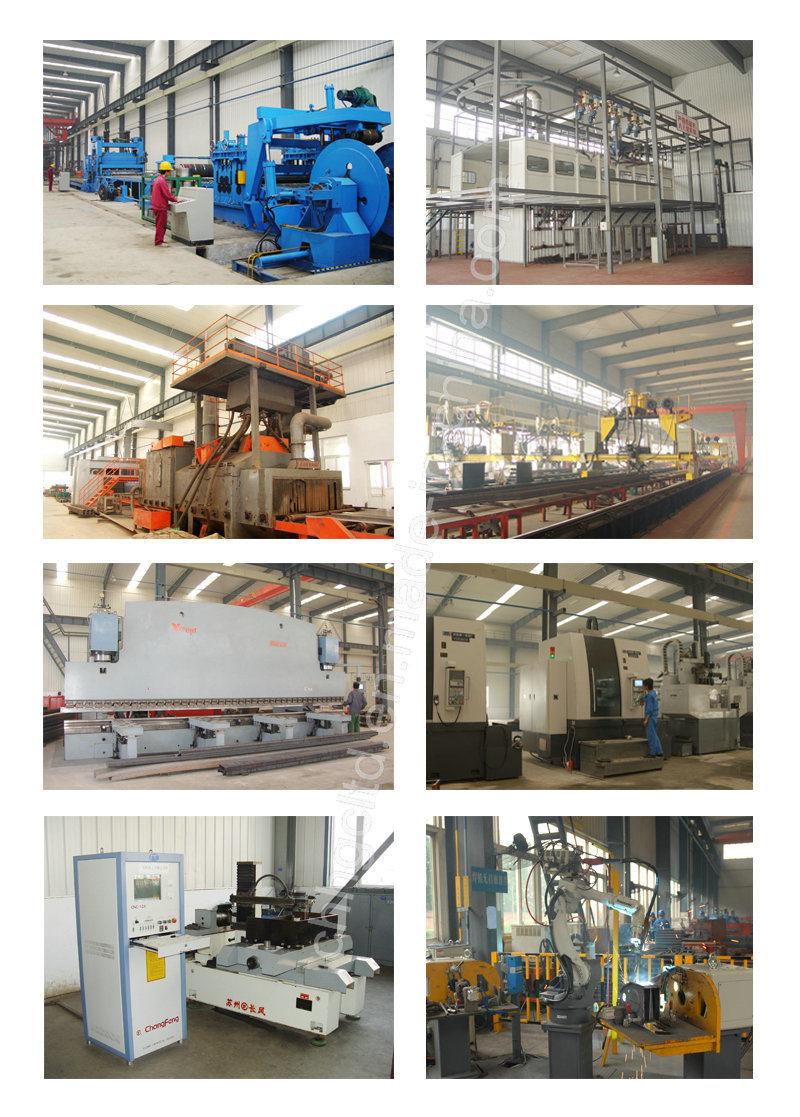

Workshop



Why us?

1)A professional international sales team, which enable us to turn inquiries into final products and export them to numerous countries and regions without barriers;
2) A well managed quality control system to customize on clients requirements. We can design according to customers usage invironment.
3)Unparalleled after sales service


Packaging and Shipping

1. All the wheel loaders will be made anti rust before shipment
2. Different shipping method for different situation, Ro-Ro Vessel, Bulk Vessel, Flat-Rack, Container, etc
3. Shipment tracking service


Our Services

1.Reply your inquiry in 24 working hours.
2.Experienced staffs answer all your questions in professional and fluent English.
3.Customized design is available. OEM is welcome.
4.Exclusive and unique solution can be provided to our customer by well-trained and professional engineers and staffs.
5.Special discount and protection of sales area provided to your distributor.
6.Do the best reliable heavy-duty earth-moving machinery in China.
7.Warranty period is 1-year or 2000 working hours against Bill of Lading.


FAQ

1. How about the products range do you produce ?
    - We are specilized in wheel loader, excavator, bull dozer, roller compactor, motor grader.

2. Which brand engine do you have for ?
    - High quality brands including Changchai, Xichai, Weichai, Cummins, Deutz, Yanmar, Kohler diesel Power engine and so on.

3. What advantages of your products and company?
    - 1.) available to adjust design to adapt to the market changes, and help customers gain more competitiveness in market.
    - 2.) ROPS cabin, double-layer thick cab, are of high strength and durable resistance.
    - 3.) adjusting steering wheel and seat, give more comfortable driving environment.
    - 4.) strict test to make sure every product sold to customer being in high quality.
